Product description

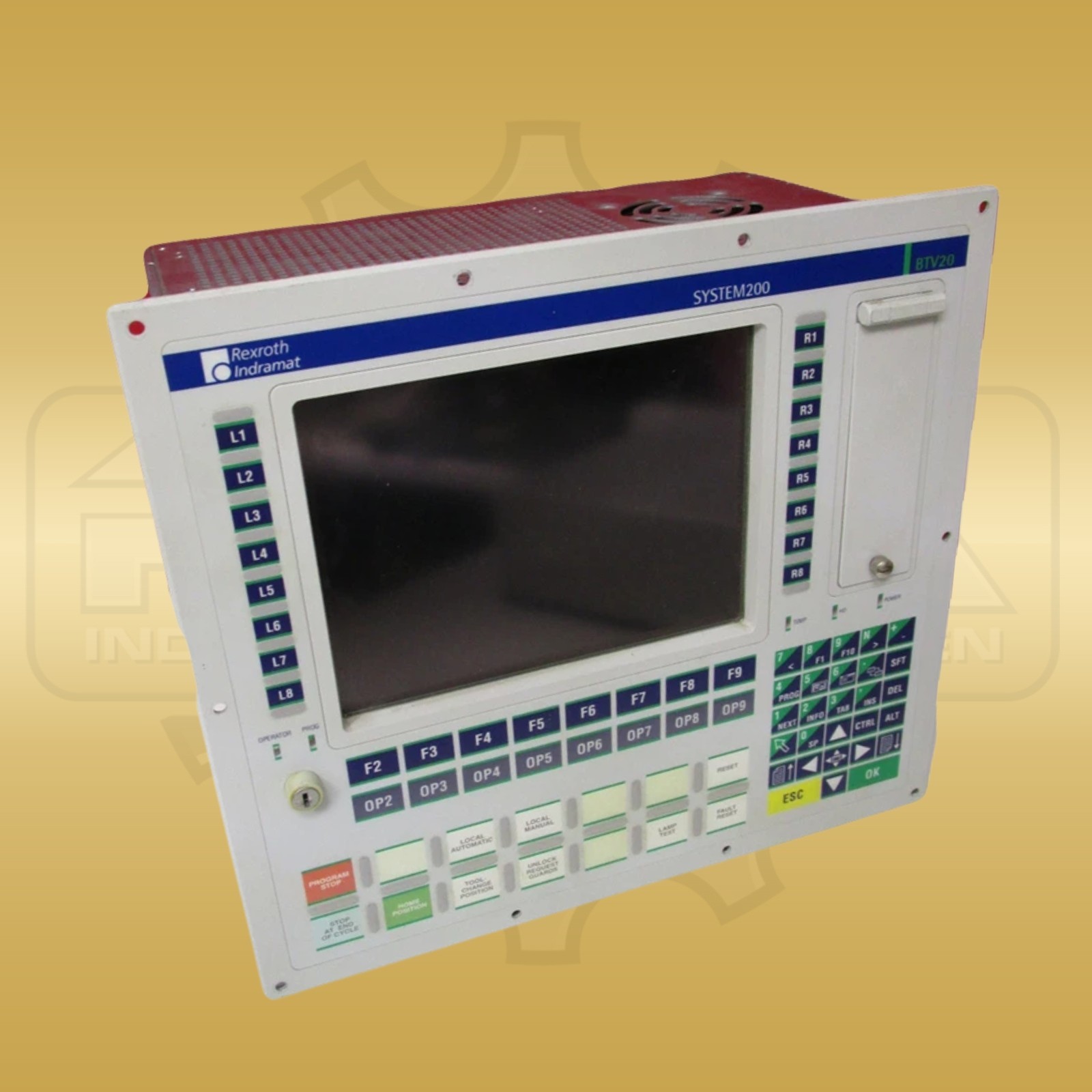

With dimensions of 407 × 370 × 220 mm across the front panel and a weight of approx. 10.5 kg, Bosch Rexroth BTV20.3EA-28B-33C-D-FW can be clearly classified mechanically. Behind the front, the housing measures 372 × 335 × 209 mm. The 4-mm aluminium front carries a 10.4-inch TFT colour display, the machine operating keyboard, and eight function keys on each side. This PC-based machine operator terminal belongs to the BTV20.3 family for System 200. The type code specifies 128 MB of RAM, computer configuration 33, power-supply code C, and the installed 3.5-inch floppy disk drive with 1.44 MB. The computer base includes a processor clock of at least 300 MHz and a hard disk of at least 3 GB. With the FW code, firmware is listed as a separate sub-item. The front colour is RAL 7035 light grey; the housing provides PCI and ISA slots. The closed front reaches IP65, while the rear housing has IP20. Operation is specified for an ambient temperature of +5 to +45 °C, an average relative humidity of 75 percent without condensation, and an installation altitude of up to 1,500 m. The fan, backlight, drives, and battery are identified as wear parts of the device family. The power supply automatically switches between 115 and 230 V AC. Its input range is 90 to 132 or 180 to 264 V AC at 47 to 63 Hz; maximum power consumption is 250 VA. Standard interfaces include RS-232, a parallel Centronics interface, and Indramat RS-232/422/485. An integrated graphics controller with 4 MB of video memory and Ethernet complements the computer platform. The exact identifier remains decisive for assigning function type, memory, computer configuration, power supply, and drive version.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Bosch Rexroth |
|---|---|
| Product range | Rexroth Indramat BTV20.3 / System 200 |
| Manufacturer/order/identification number | BTV20.3EA-28B-33C-D-FW |
| Device type | PC-based machine operator terminal |
| Display | 10.4-inch TFT colour display |
| RAM | 128 MB |
| Computer configuration 33 | At least 300 MHz CPU, at least 3 GB hard disk, RS-485 (SIS) |
| Operation | Standard keyboard and 16 machine function keys |
| Primary drive | 3.5-inch floppy disk drive, 1.44 MB |
| Supply voltage | 115/230 V AC; input 90–132 / 180–264 V AC, 47–63 Hz |
| Power consumption | Maximum 250 VA |
| Interfaces | RS-232, Centronics, Indramat RS-232/422/485, and Ethernet |
| Degree of protection | Front IP65; housing IP20 |
| Operating temperature | +5 to +45 °C |
| Relative humidity | 75 % average, 80 % occasional, non-condensing |
| Dimensions | Front 407 × 370 × 220 mm; rear housing 372 × 335 × 209 mm (W × H × D) |
| Weight | approx. 10.5 kg |
Related products
Go to shop
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
Which computer and memory configuration defines BTV20.3EA-28B-33C-D-FW?
The exact version has 128 MB of RAM and computer configuration 33 with a CPU of at least 300 MHz, a hard disk of at least 3 GB, and RS-485 (SIS). A 3.5-inch floppy disk drive with 1.44 MB is coded as the primary drive.
Which installation and supply data apply to the BTV20.3 terminal?
Across the front panel, the device measures 407 × 370 × 220 mm; the rear housing measures 372 × 335 × 209 mm. The power supply operates with 115/230 V AC and accepts 90–132 or 180–264 V AC at 47–63 Hz.
