Siemens 6SL3100-0BE28-0AB0
€1,410.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

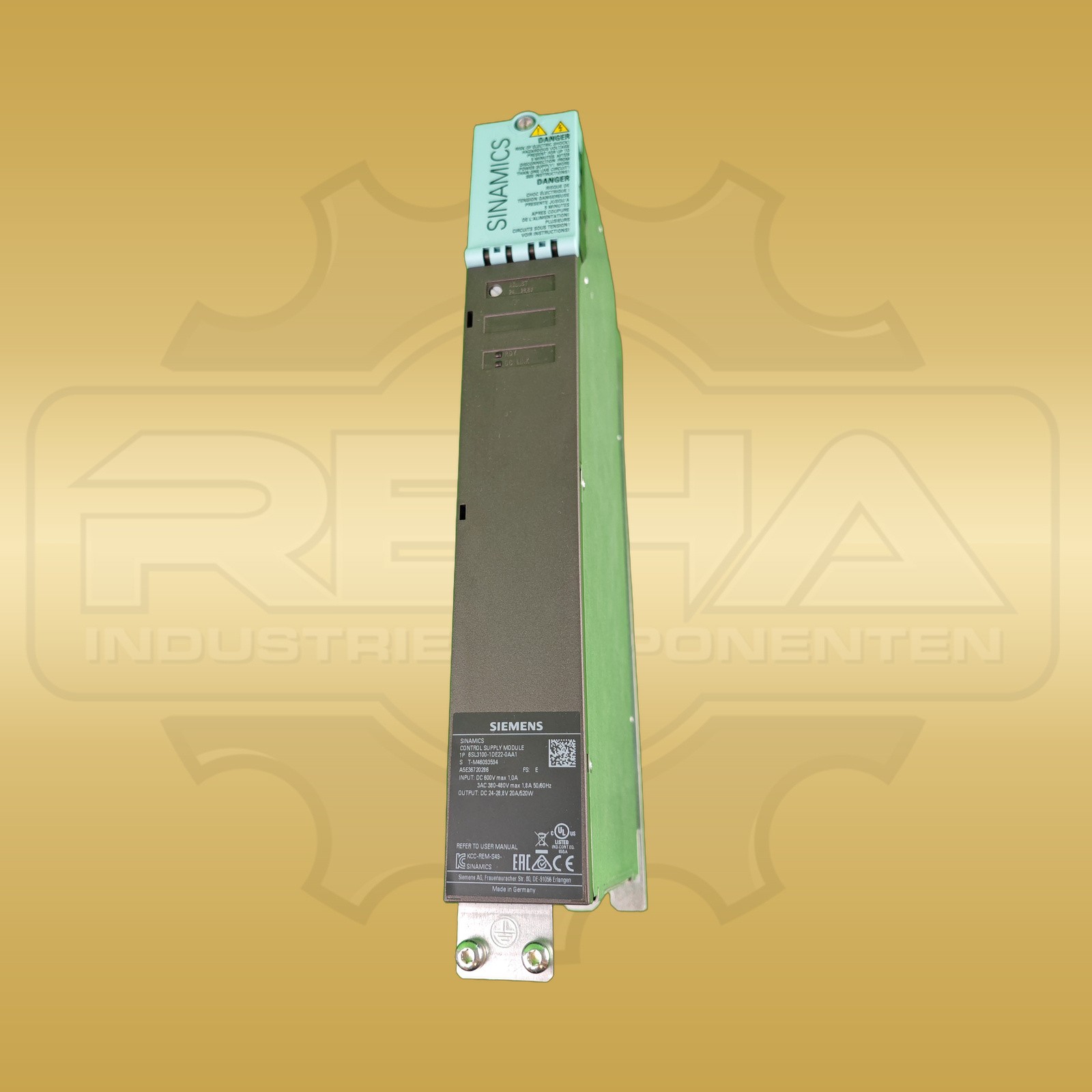

For regulated DC voltage supply within the SINAMICS-S120 series, Siemens 6SL3100-1DE22-0AA1 is provided as a Control Supply Module. The Booksize assembly processes a DC-link voltage of 510 to 720 V DC. Alternatively, the three-phase mains input accepts 380 to 480 V AC at 50 or 60 Hz. At the output, the module provides 24.0 to 28.8 V DC with 20 A rated current. At output voltages above 26 V, the available current decreases linearly from 20 A at 26 V to 18 A at 28.8 V. The maximum output power is 520 W. The input current reaches a maximum of 2 A at 3 AC 400 V and is 1.1 A at 600 V DC. Internal air cooling handles heat dissipation. For EMC suppression, category C2 according to EN 61800-3 applies. The output is connected via a screw terminal for conductor cross-sections of 0.2 to 4.0 mm². The DC-link busbars have a current-carrying capacity of 100 A; conformity with standards is specified as cULus. The housing measures 50 mm in width, 380 mm in height and 270 mm in depth. The depth applies with the supplied spacer. The net weight is 4.8 kg. These values describe the assembly itself, not packaging. The complete order number 6SL3100-1DE22-0AA1 is decisive for unambiguous product identification. It distinguishes the active Control Supply Module from the older version 6SL3100-1DE22-0AA0. The Booksize design, output range of 24.0 to 28.8 V DC and rated output current of 20 A are also decisive.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | SINAMICS S120 |
| Manufacturer/order/identification number | 6SL3100-1DE22-0AA1 |
| Device type | Control Supply Module |
| Design | Booksize |
| DC-link voltage | 510 to 720 V DC |
| Mains input | Three-phase 380 to 480 V AC, 50/60 Hz |
| Output voltage | 24.0 to 28.8 V DC |
| Rated output current | 20 A |
| Rated input current at 3 AC 400 V | maximum 2 A |
| Rated input current at 600 V DC | 1.1 A |
| Maximum output power | 520 W |
| Output current derating | Linearly above 26 V from 20 A at 26 V to 18 A at 28.8 V |
| Cooling type | Internal air cooling |
| EMC suppression | Category C2 according to EN 61800-3 |
| Output connection | Screw terminal, 0.2 to 4.0 mm² (AWG 24 to AWG 12) |
| Current-carrying capacity of DC-link busbars | 100 A |
| Standards compliance | cULus |
| Dimensions | 50 × 380 × 270 mm (W × H × D, depth with supplied spacer) |
| Weight | 4.8 kg |
Related products
Go to shop

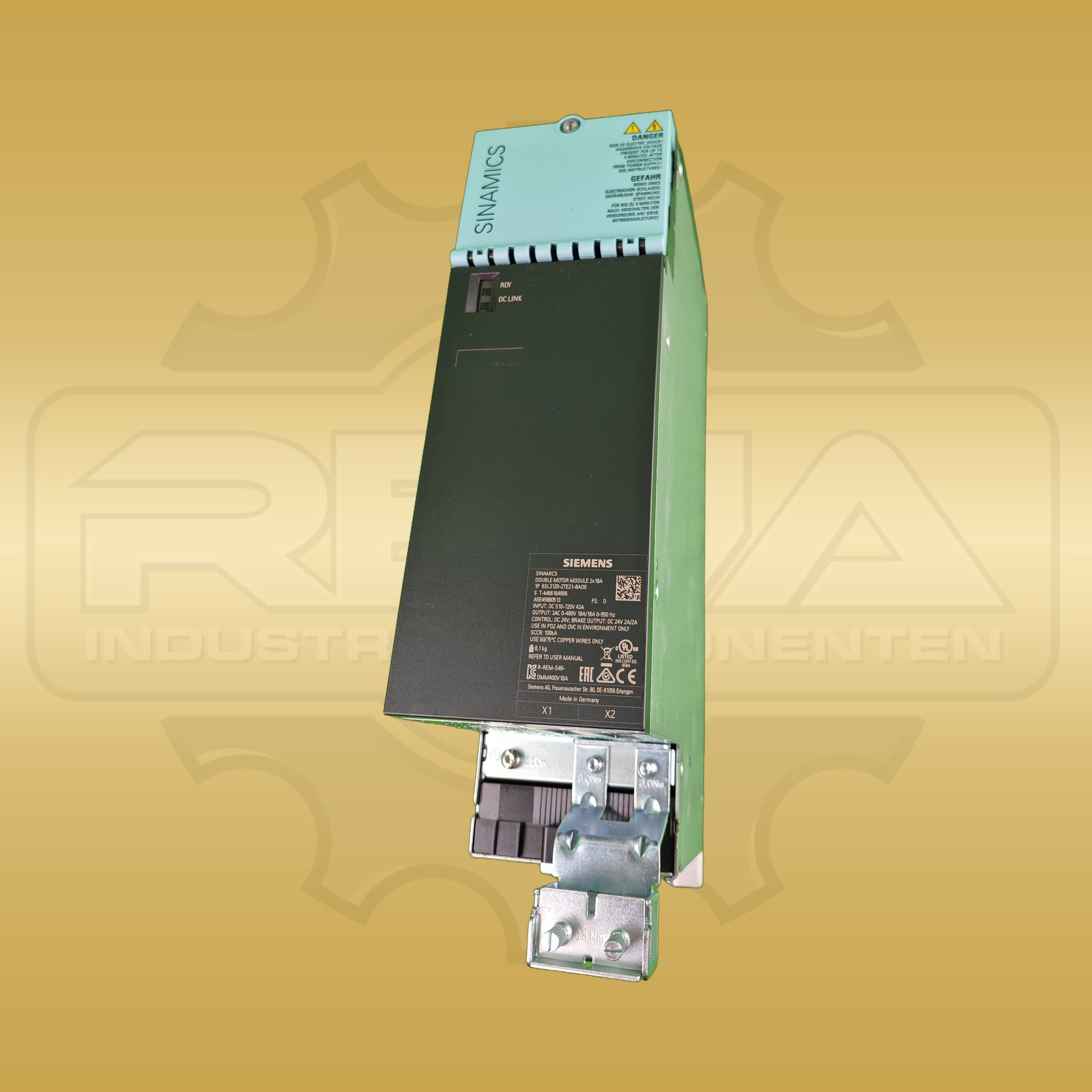

Siemens 6SL3120-2TE21-8AD0
€670.00
Siemens 6SL3000-0DE25-5AA1
€2,930.00
Siemens 6SL3040-1LA01-0AA0
€720.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What output data does Siemens 6SL3100-1DE22-0AA1 have?
The Control Supply Module provides 24.0 to 28.8 V DC at 20 A rated output current and a maximum output power of 520 W.
What are the dimensions and net weight of the module?
The Booksize assembly measures 50 × 380 × 270 mm; the depth applies with the supplied spacer. The net weight is 4.8 kg.
