Fanuc A06B-0117-B855#0049
€1,090.00
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description

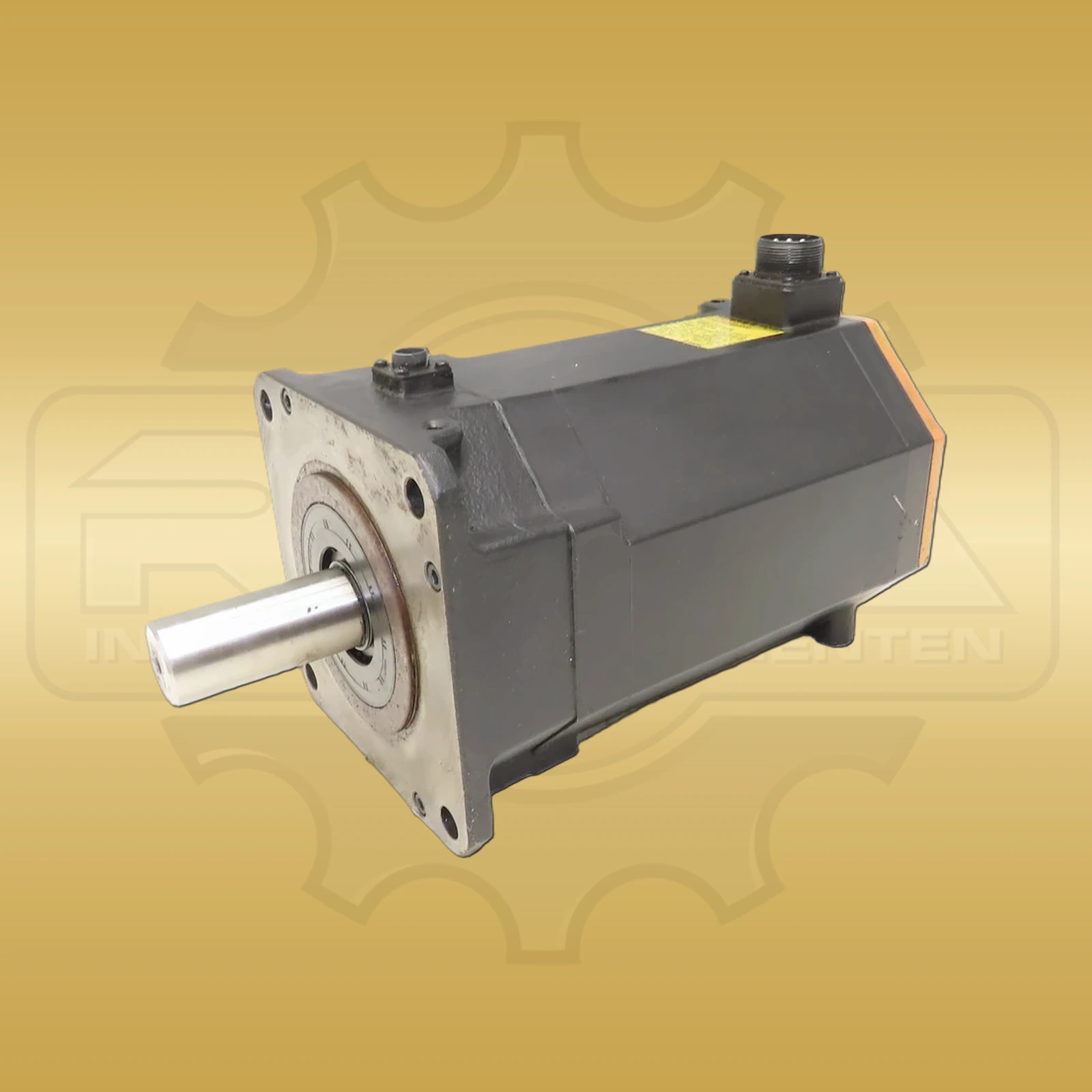

FANUC A06B-0247-B400 is an AC servo motor from the ALPHA i family for precise feed and positioning axes in CNC machine tools. The version is designated α22/3000i and combines 4.0 kW rated power with 22 Nm torque. The three-phase motor operates at 230 V AC, draws 11 A and is rated for 200 Hz. Rated speed is 3000 min-1. The complete type number is therefore a central reference for maintenance, repair and spare-part procurement. It enables targeted comparison with axis data, amplifier assignment and the existing machine engineering. Mechanically, A06B-0247-B400 has a straight shaft and standard seals. A 24-V-DC holding brake is integrated. Position feedback uses an absolute FANUC-α1000iA pulse coder. The power factor is 0.96. Stated operating limits are -10 to 40 °C ambient temperature, maximum vibration of 5 G and installation altitude up to 1000 m. These data support verification of the mechanical mounting, load profile, wiring and feedback. Brake and encoder must also match the existing machine-control configuration reliably. Suffixes after the basic FANUC motor type can identify additional mechanical or electrical options. Variants such as A06B-0247-B400#0100 or #0200 must therefore not be combined automatically with the bound base type. Before replacement, compare the rating plate, complete option code, shaft design, brake voltage, encoder, power, current, frequency and speed with the existing axis configuration. Exact matching prevents confusion with visually similar ALPHA i motors and provides a reliable basis for planned retrofit and repair work.
Specifications
| Manufacturer | Fanuc |
|---|---|
| Product series | ALPHA i |
| Manufacturer / order / identification number | A06B-0247-B400 |
| Motor model | α22/3000i |
| Motor type | AC servo motor |
| Number of phases | 3-phase |
| Rated voltage | 230 V AC |
| Rated power | 4.0 kW |
| Rated current | 11 A |
| Rated frequency | 200 Hz |
| Rated speed | 3000 min-1 |
| Torque | 22 Nm |
| Power factor | 0.96 |
| Output shaft | straight shaft |
| Seal | standard seals |
| Holding brake | 24 V DC |
| Encoder | absolute α1000iA pulse coder |
| Ambient temperature | -10 to 40 °C |
| Maximum vibration | 5 G |
| Installation altitude | up to 1000 m |
Related products
Go to shop
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What power does Fanuc A06B-0247-B400 provide?
The ALPHA i servo motor is documented with 4.0 kW, 22 Nm torque, 11 A and a rated speed of 3000 min-1.
Which feedback device does A06B-0247-B400 use?
The base version is described with an absolute FANUC-α1000iA pulse coder and an integrated 24-V-DC holding brake.
