Heidenhain 1081185-01
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

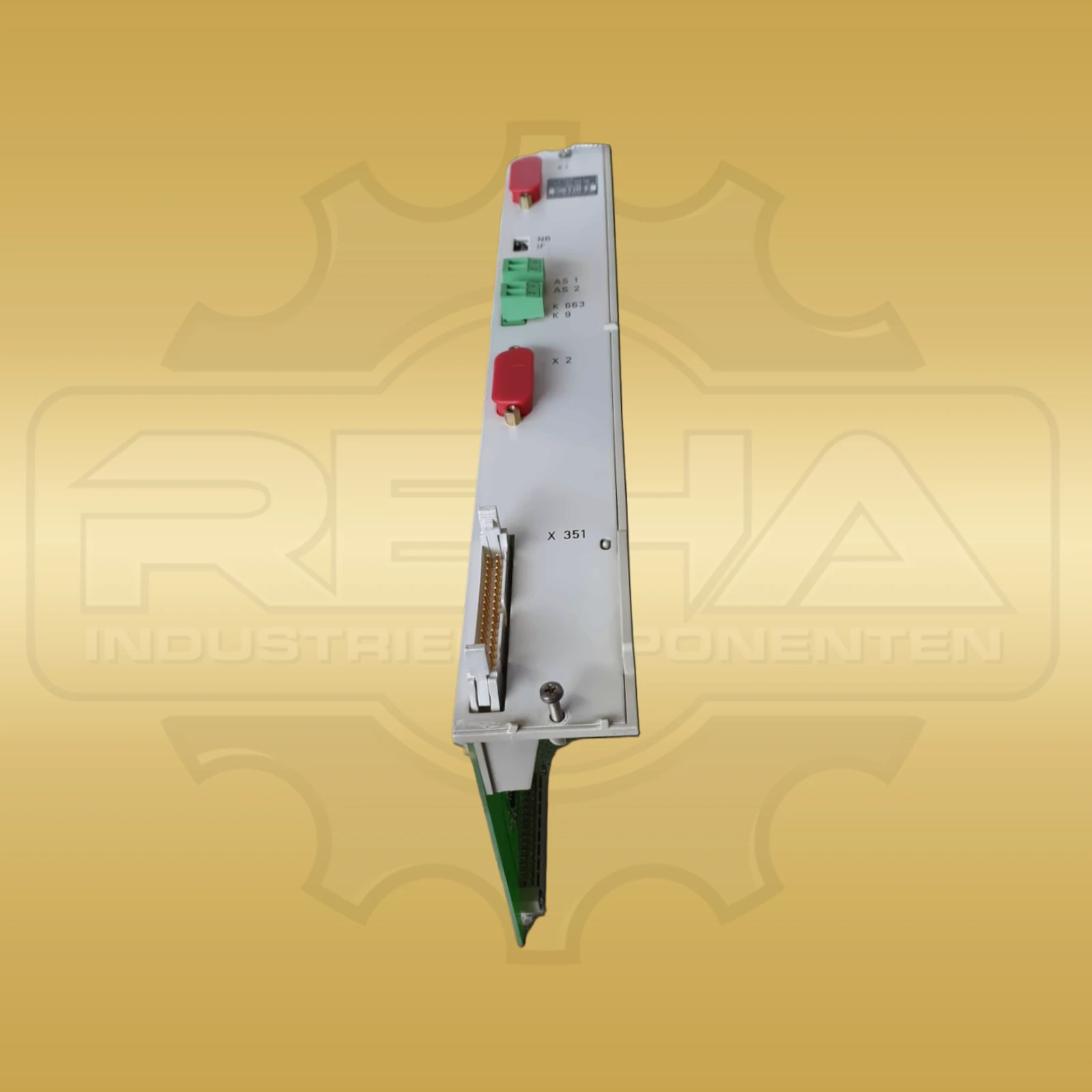

Between the HEIDENHAIN-PWM interface and single- or two-axis inverter modules of the Siemens SIMODRIVE 611 system, the 324 952-03 interface board performs signal adaptation. It belongs to the 324 952-0x series without metallic insulation and is built as a multi-row board with D-Sub connectors. In addition to the PWM signals, it generates the inverted signals required by the inverter. The board routes inverter fault signals and undervoltage and overvoltage monitoring signals to the control system. For current actual-value processing, it records two phase currents and amplifies their actual values by a factor of 3 before transfer. The control system calculates the third phase current from these measured values. These functions concern signal transmission, current feedback, and the forwarding of monitoring information. X1 and X2 provide the connections to the logic unit; X351 connects the SIMODRIVE device bus. The K663 safety relay is assigned to pulse enable. When the relay is inactive, the PWM signals are not passed through to the inverter. The green IF LED indicates pulse enable. The red NB LED is assigned to monitoring readiness, the DC link, temperature, and the power supply. Both indicators are diagnostic elements on the board. This version has no front-side grounding screw. The connection to the central grounding point is made via the board's mounting screws. The series comprises versions with and without metallic insulation; 324 952-03 is assigned to the version without metallic insulation. The variant-specific dimensions are 130 × 310 × 50 mm in width, height, and depth. The net weight is 0.4 kg. The identification number, dimensions, and version refer to the same product record.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Heidenhain |
|---|---|
| Product series | SIMODRIVE 611 Interface |
| Manufacturer / order / identification number | 324 952-03 |
| Device type | Interface board for Siemens SIMODRIVE 611 |
| Design | Multi-row configuration with D-Sub connectors |
| Metallic insulation | Without metallic insulation |
| System function | Communication between the HEIDENHAIN-PWM interface and Siemens single- or two-axis inverter modules |
| Signal adaptation | Generates the inverted PWM signals additionally required by the inverter |
| Fault and monitoring signals | Links inverter fault signals and undervoltage and overvoltage monitoring for further processing in the control system |
| Current actual-value processing | Amplifies measured current actual values by a factor of 3 before transfer to the control system; two phase currents are measured, and the third is calculated by the control system |
| K663 safety relay | Safety relay for pulse enable; when the relay is inactive, the PWM signals are not passed through to the inverter |
| Connections X1 and X2 | Connections to the logic unit (LE) |
| Connection X351 | SIMODRIVE device bus |
| IF indicator | Green LED for pulse enable |
| NB indicator | Red Not-ready LED for readiness, DC-link, temperature, and power-supply monitoring |
| Grounding | No front-side grounding screw; connection to the central grounding point via the board's mounting screws |
| Dimensions | 130 × 310 × 50 mm (W × H × D) |
| Weight | 0.4 kg net |
Related products
Go to shop
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What task does the Heidenhain 324 952-03 perform?
The interface board connects the HEIDENHAIN-PWM interface with Siemens-SIMODRIVE-611 inverter modules. It adapts PWM signals, routes fault and monitoring signals to the control system, and contains the K663 safety relay for pulse enable.
What are the dimensions and weight of 324 952-03?
The dimensions are 130 × 310 × 50 mm (W × H × D), and the net weight is 0.4 kg. Both values belong to the exact identification number 324 952-03.
