Lenze E84AVSCE4024VX0
€970.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
Documented identifiers and values: E84AVSCE5524SB0; 8400; 5.5 kW; 400 V; 13 A; 599 Hz; 10 kHz; IP20; 140; 270; 219 mm; 4.5 kg. For closed-loop applications, an input accepts an HTL incremental encoder up to 10 kHz. Forced-air cooling is provided by an axial fan, and the unit weighs 4.5 kg. Lenze E84AVSCE5524SB0 is an 8400 StateLine frequency inverter for demanding conveyor, intralogistics, plastics, packaging and filling applications. An output-frequency range from 0 to 599 Hz allows operation with a range of motor types and speed requirements. Sensorless vector control and the SLPSM function provide torque and speed control for permanently excited synchronous motors without a mechanical encoder. Integrated STO (Safe Torque Off) removes drive torque without external contactors when used in a suitable machine-safety circuit. The integrated braking chopper allows an external braking resistor to be connected for rapid deceleration. The variant-specific Lenze table assigns E84AVxxE5524xBx external dimensions of 140 × 270 × 219 mm in width × height × depth order and a mass of 4.5 kg. The letter B in the full 8400 type code identifies the deeper version; the 199 mm depth and 4.4 kg belong to the different xXx version. The manufacturer values refer to the individual unit without connection cables, external components or shipping packaging.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Lenze |
|---|---|
| Product series | 8400-StateLine |
| Manufacturer/order/identification number | E84AVSCE5524SB0 |
| Rated power | 5.5 kW / 7.5 HP |
| Mains voltage | 3/PE 400 V AC |
| Mains frequency | 50/60 Hz |
| Rated output current | 13 A |
| Output frequency | 0–599 Hz |
| Protection rating | IP20 |
| Safety function | STO (Safe Torque Off) |
| Motor control | Sensorless vector control (SLPSM) |
| Feedback system | HTL incremental encoder up to 10 kHz |
| Brake chopper | Integrated; external braking resistor |
| Ambient temperature | -10 °C to +45 °C |
| Installation location | Control cabinet |
| Communication | CANopen integrated |
| Cooling method | Forced cooling (axial fan) |
| Dimensions | 140 × 270 × 219 mm (W × H × D) |
| Weight | 4.5 kg |
Related products
Go to shop

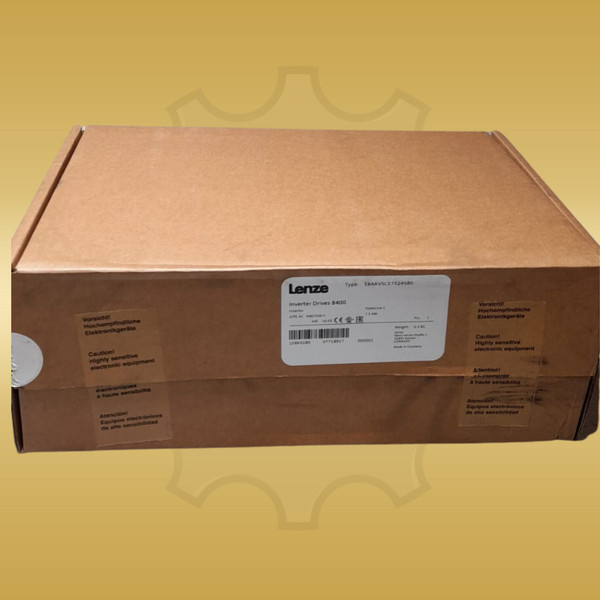

Lenze E84AVSCE7524SB0
€1,660.00
Lenze E84AVSCE2224SX0
Price on request
Lenze E84AVSCE2512SX0
€440.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the external dimensions and weight of the Lenze E84AVSCE5524SB0?
The B version measures 140 × 270 × 219 mm in width × height × depth order and weighs 4.5 kg.
Why do older dimensional values differ?
The previous 199-mm depth and 4.4 kg belong to the shallower xXx version; the complete type code of this unit identifies the deeper B version.
What applies if an item develops a defect within 14 days?
For the condition categories “Used, removed from an installation” and “New, old stock”, the contractual 14-day right of return in the event of a defect applies. The defect must occur within 14 calendar days after delivery and be reported in text form within the same period.
In particular, the REHA tamper-evident seal must remain fully intact and our RMA approval is required before return. In an accepted case, we decide between replacement and refund. Details in Section 11 of the Terms.
Which shipping methods and delivery times are available?
The shipping method, shipping cost and estimated delivery time are confirmed for the specific order. Depending on the item, destination and urgency, we can check parcel, express or freight shipping as well as collection.
A delivery date is binding only if we expressly confirm it as binding.
Which payment terms apply?
The payment terms stated in the checkout or order confirmation apply. Depending on the order and customer, payment is made in advance or against invoice.
International deliveries and deliveries to new customers are generally made against advance payment unless we expressly confirm another payment arrangement.
Can I return an item ordered incorrectly or found incompatible?
No. There is no general B2B right of return, exchange, cancellation or withdrawal. Incorrect or duplicate orders and a lack of suitability or compatibility with the customer’s installation are not covered by the contractual 14-day right of return in the event of a defect. Details in Section 12 of the Terms.
Can I request individual pricing for several items?
You may request an individual quotation for several items or larger quantities. We then check availability and pricing for the specific requirement; there is no entitlement to a quantity discount. Open the quick enquiry.
Do you also purchase industrial spare parts?
Yes. You can offer us automation and drive components for purchase. Please provide complete type numbers, quantities, condition details and photographs where possible.
After review, we will tell you whether a purchase is possible and on which terms. Learn more about selling industrial stock.
