Lenze EVS9322-ES
€960.00
Shipping information
Do you require an expedited shipping option for this item?
Please contact us!
Product description
The Lenze EVS9322-EI belongs to the Global Drive 9300 series and combines a servo inverter with an integrated Servo PLC function. The exact type number denotes the 9322 power stage in the EI version. Lenze documents a three-phase mains voltage range from 320 to 528 V at 45 to 65 Hz. Alternatively, a 460 to 740 V DC supply is specified. For operation on 3 AC 400 V, the data table lists a motor power of 0.75 kW for a four-pole induction motor. Output current is 2.5 A at an 8 kHz switching frequency and 1.8 A at 16 kHz. The corresponding output power is 1.7 kVA. At 480 V, the documented motor power remains 0.75 kW while output power rises to 2.1 kVA. Lenze specifies a maximum output current of 3.8 A at 8 kHz and 2.7 A at 16 kHz. Mains current at 400 V is 2.5 A. Power loss for size 9322 is stated as 110 W. Above 40 °C up to 50 °C ambient temperature, a derating of 2 % per kelvin applies. For installation altitudes between 1000 and 4000 m, a derating of 5 % per 1000 m is documented. The data also show that switching frequency and supply voltage must be considered separately in the technical design. Compact external dimensions are 78 mm in width, 350 mm in height and 250 mm in depth; device weight is 3.5 kg. The precise combination of type number, EI functional version, mains range and power stage identifies this unit within the extensive 9300 family.
Example image – The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
| Manufacturer | Lenze |
|---|---|
| Product series | Global Drive 9300 |
| Manufacturer/order/identification number | EVS9322-EI |
| Device type | Servo PLC controller / servo inverter |
| Mains voltage | 3 AC 320–528 V |
| Mains frequency | 45–65 Hz |
| Alternative DC supply | 460–740 V DC |
| Motor power | 0.75 kW at 400/480 V |
| Output current at 8 kHz | 2.5 A |
| Output current at 16 kHz | 1.8 A |
| Output power at 400 V | 1.7 kVA |
| Output power at 480 V | 2.1 kVA |
| Maximum output current | 3.8 A at 8 kHz; 2.7 A at 16 kHz |
| Mains current at 400 V | 2.5 A |
| Power loss | 110 W |
| Temperature derating | 2 %/K at 40–50 °C |
| Altitude derating | 5 % per 1000 m at 1000–4000 m |
| Dimensions | 78 × 350 × 250 mm (W × H × D) |
| Weight | 3.5 kg |
Related products
Go to shop
Lenze 00401423
€100.00

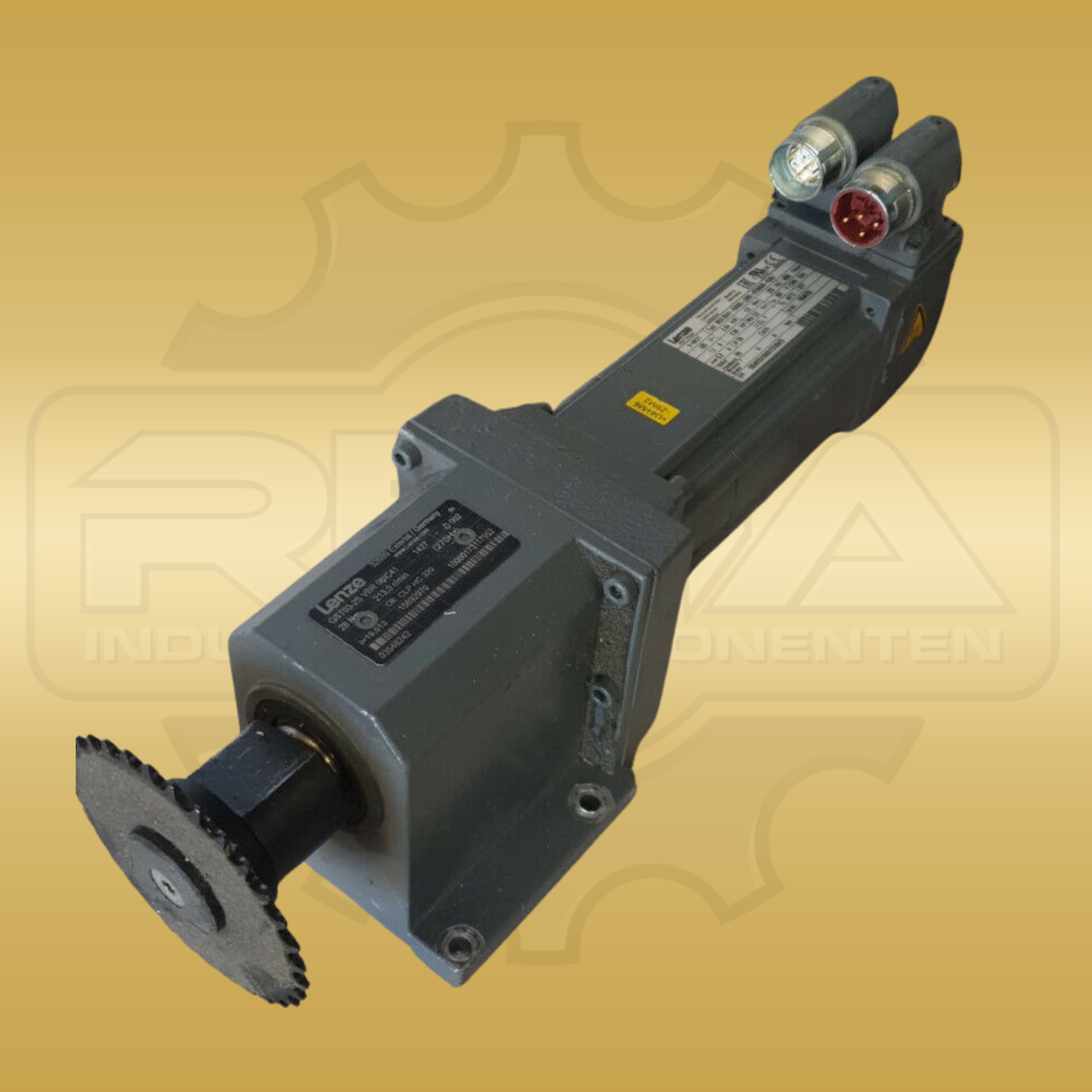

Lenze 06I41-RS0B0-Z0B0-ST5S00N-R0SU
€310.00

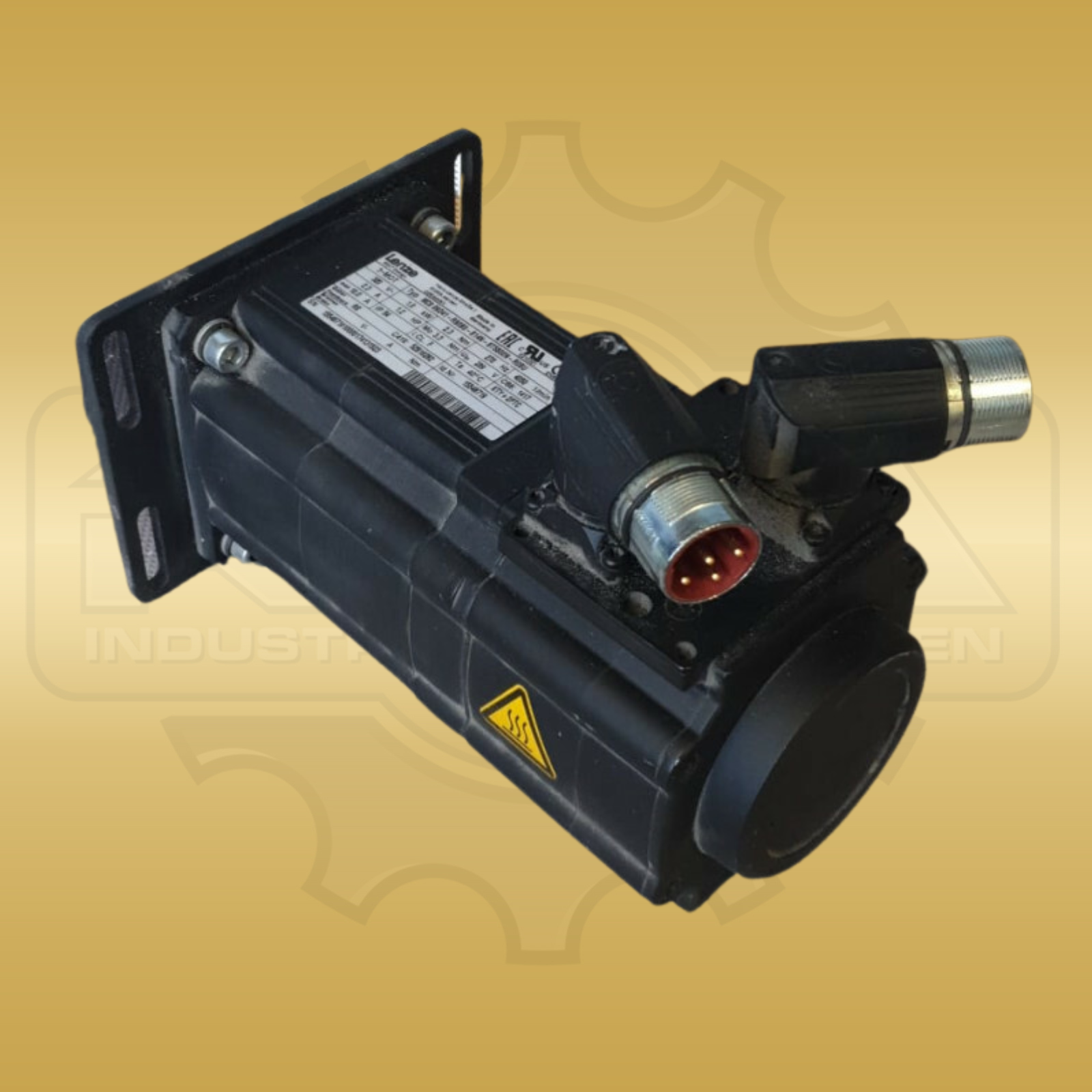

Lenze 09D41-RS0B0-B14N-ST5S00N-R0SU
