Fanuc A06B-0229-B200
€2,510.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

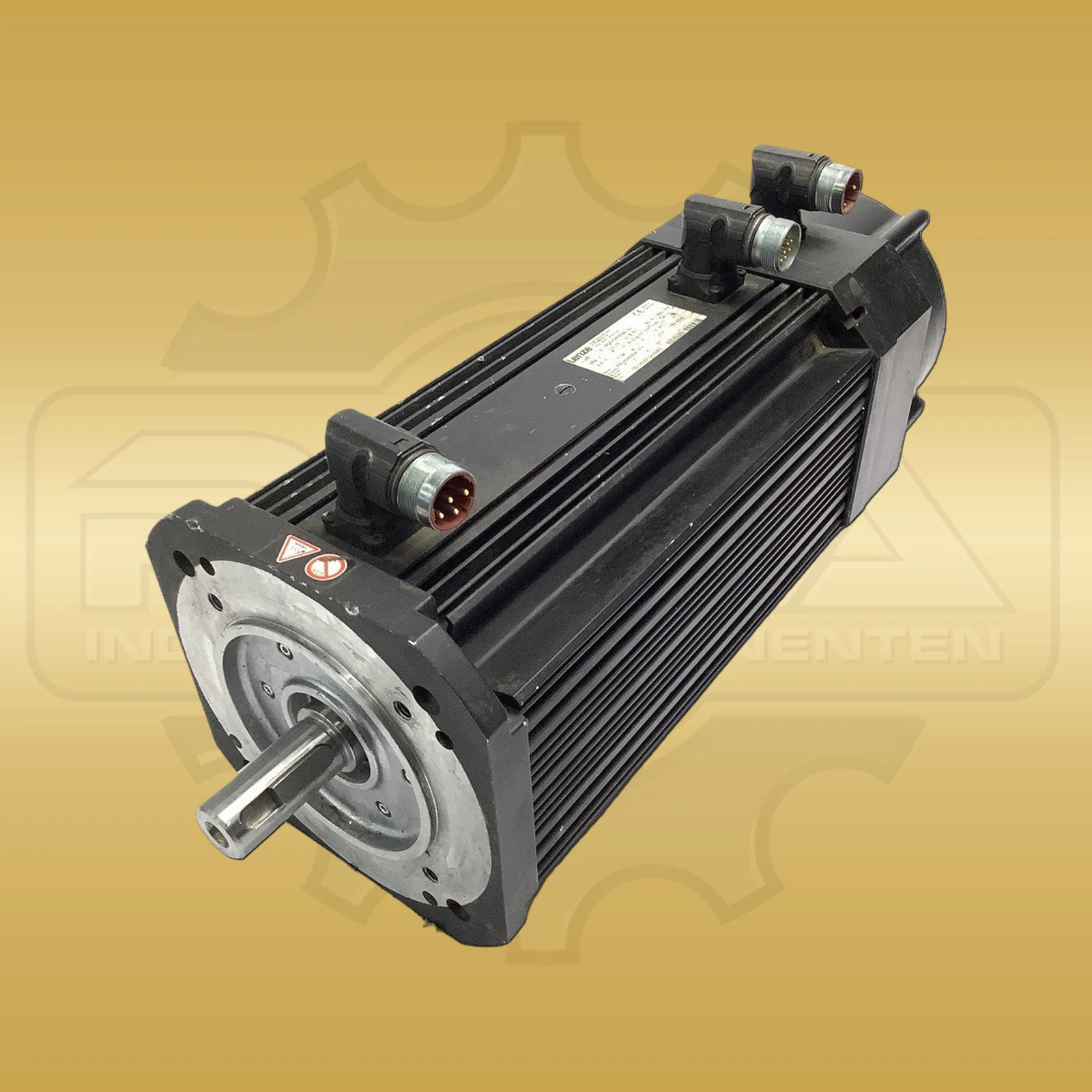

Lenze MDFKARS090-22 is a forced-ventilated AC servo motor from the MDFKA product series. The complete type number identifies the specific motor version. The documented machine type is an asynchronous machine. Rated power is 6.9 kW at a rated voltage of 390 V. Rated current is 15.8 A and rated frequency is 120 Hz. At a rated speed of 3,480 min⁻¹, the technical source states a torque of 23.9 Nm. A continuous torque of 19 Nm is also listed. The power factor is cos φ 0.80. The frame-size designation is 090, and two pole pairs are documented for this version. Rotor-position and speed feedback use a resolver. Forced ventilation is the documented cooling method. The motor enclosure has degree of protection IP54. The mechanical data state external dimensions of approx. 180 × 200 × 420 mm in width × height × depth order. Documented device weight is 22.8 kg. Dimensions and weight refer to the motor rather than packaging or additionally mounted components. Electrical data, speed, torque, feedback, cooling and mechanical construction together describe the offered version. The type number remains the unique product identification. In the specification table, manufacturer, series and identification number appear first; Dimensions and Weight form the final two rows. This makes both the required installation envelope and device mass directly visible.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Lenze |
|---|---|
| Product series | MDFKA |
| Manufacturer / order / identification number | MDFKARS090-22 |
| Device type | AC servo motor |
| Machine type | Asynchronous machine |
| Rated power | 6.9 kW |
| Rated voltage | 390 V |
| Rated current | 15.8 A |
| Rated frequency | 120 Hz |
| Rated speed | 3,480 min⁻¹ |
| Torque | 23.9 Nm |
| Continuous torque | 19 Nm |
| Power factor | cos φ 0.80 |
| Frame size | 090 |
| Pole pairs | 2 |
| Feedback | Resolver |
| Cooling | Forced ventilated |
| Degree of protection | IP54 |
| Dimensions | approx. 180 × 200 × 420 mm (W × H × D) |
| Weight | 22.8 kg |
