Siemens 1FK7040-5AK71-1AH0
€1,500.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
For the Siemens 1FK7062-2AF71-1QG0, rated torque and rated speed are 6.0 Nm and 3000 min⁻¹. Rated power is 1.9 kW and rated current is 4.0 A. At standstill, the specified values are 7.10 Nm at 60 K and 8.50 Nm at 100 K; the corresponding standstill currents are 4.30 A and 5.30 A. Maximum torque is 26.0 Nm. The mechanical speed limit is 7200 min⁻¹, while the maximum converter speed is 5600 min⁻¹. This permanent-magnet synchronous servomotor belongs to the SIMOTICS S 1FK7 Compact range. Position feedback is provided by an AS20DQI 20-bit single-turn absolute encoder connected through DRIVE-CLiQ. The motor uses natural cooling and has IM B5 construction, with IM V1 and IM V3 listed as permissible mounting positions. Its mechanical configuration comprises a plain shaft with tolerance N and no holding brake. The encoder is a single-turn version rather than a multiturn design. IP64 protection applies to the enclosure and connection side. For the specific order, dispatch from Germany can be arranged for the United States and other international destinations. The square flange measures 126 × 126 mm. Motor length excluding the shaft end is 190 mm, and the plain shaft end adds a further 50 mm, giving an overall length of 240 mm. Flange width and flange height are therefore identical. The exact configuration has a net weight of 9.1 kg. Construction, mounting positions, shaft design, absence of a holding brake and encoder type distinguish this version within the 1FK7 Compact range. The 126-mm flange, plain shaft and 20-bit encoder are fixed characteristics of the complete MLFB.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product range | SIMOTICS S 1FK7 Compact |
| Manufacturer/order/identification number | 1FK7062-2AF71-1QG0 |
| Device type | Permanent-magnet synchronous servomotor |
| Rated speed | 3000 min⁻¹ |
| Rated torque | 6.0 Nm |
| Rated power | 1.9 kW |
| Rated current | 4.0 A |
| Standstill torque | 7.10 Nm at 60 K; 8.50 Nm at 100 K |
| Standstill current | 4.30 A at 60 K; 5.30 A at 100 K |
| Maximum torque | 26.0 Nm |
| Maximum mechanical speed | 7200 min⁻¹ |
| Maximum converter speed | 5600 min⁻¹ |
| Encoder system | AS20DQI 20-bit single-turn absolute encoder, DRIVE-CLiQ |
| Cooling method | Natural cooling |
| Construction | IM B5; mounting positions IM V1 and IM V3 |
| Shaft | Plain shaft, tolerance N |
| Holding brake and protection rating | Without holding brake; IP64 |
| Dimensions | 126 × 126 × 240 mm (flange width × flange height × overall length including 50-mm shaft end); motor length excluding shaft end 190 mm |
| Weight | 9.1 kg net weight |
Related products
Go to shop
Siemens 1FK7032-5AF21-1HH3
€1,170.00
Siemens 1FK7063-5AF71-1AA0
Price on request

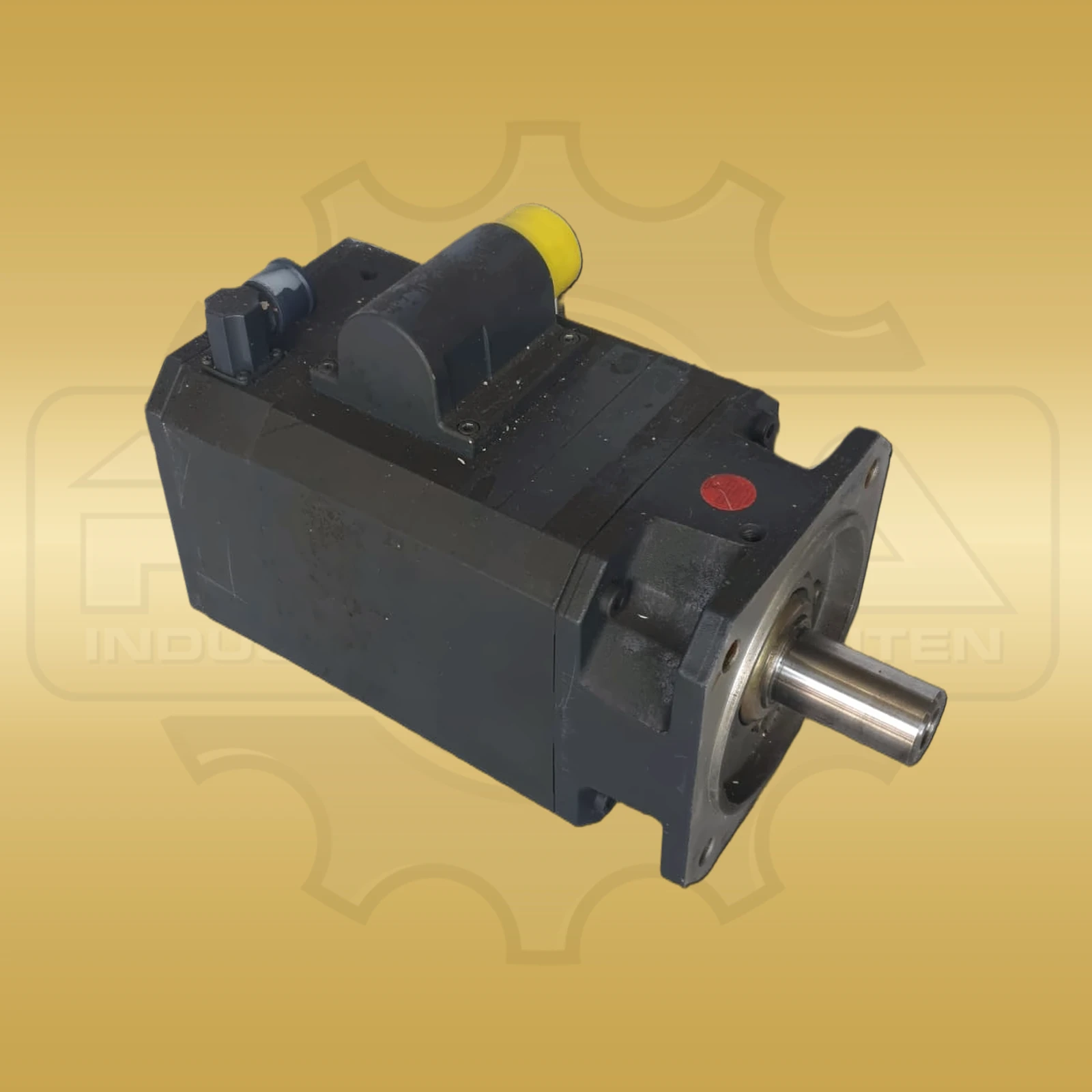

Siemens 1FT6082-1AF71-4AH1
