Siemens 1FT6082-1AF71-4AH1
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
A rated current of 17.6 A at 100 K and a rated speed of 2000 min⁻¹ place the Siemens 1FT6105-1AC71-1AH1 electrically within the self-cooled 1FT6 frame size 100. The synchronous servo motor delivers a rated torque of 38 Nm at 100 K. Its standstill torque is specified as 50 Nm at the same thermal utilization; maximum torque is 140 Nm. Natural cooling operates without an external fan. The motor housing has an IP65 degree of protection, while the IM B5 flange design also permits IM V1 and IM V3 mounting positions. An eight-pole motor design and a maximum permissible mechanical speed of 5600 min⁻¹ complete the motion data. Operation therefore remains within the passively cooled motor configuration, with no separate fan module included in this version. Position feedback is provided by an incremental encoder with a sin/cos signal of 1 VSS and 2048 signal periods per revolution. The AH1 version includes a holding brake. Power and signal connectors have a transverse right-hand outlet, so this connection orientation remains part of the full variant comparison alongside the encoder and brake. The motor outline measures 240 × 240 mm; the 416 mm installation length and the 80 mm shaft end together give an overall depth of 496 mm. Shaft diameter is 38 mm and net weight is 44,001 kg. For a specific order involving shipping from Germany to the United States and other international destinations, the type number, connector orientation, brake and mechanical dimensions are therefore checked together. The full identifier 1FT6105-1AC71-1AH1 distinguishes this configuration within the SIMOTICS-S family. When matching it to an existing machine, particular attention is required to speed, torque values, encoder version, holding brake, connector orientation, flange design and overall dimensions together; individual data from the basic series are insufficient to identify the variant.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | SIMOTICS S 1FT6 |
| Manufacturer / order / identification number | 1FT6105-1AC71-1AH1 |
| Device type | Synchronous servo motor |
| Standstill torque at 100 K | 50 Nm |
| Rated speed | 2000 min⁻¹ |
| Cooling method | Self-cooling |
| Degree of protection | IP65 |
| Mounting design | IM B5; permissible mounting positions IM V1 and IM V3 |
| Encoder system | sin/cos 1 VSS incremental encoder with 2048 S/R |
| Connector outlet | Transverse right-hand outlet |
| Holding brake | Fitted |
| Number of poles | 8 |
| Rated torque at 100 K | 38 Nm |
| Rated current at 100 K | 17.6 A |
| Maximum torque | 140 Nm |
| Maximum permissible mechanical speed | 5600 min⁻¹ |
| Shaft end | 38 mm diameter, 80 mm length |
| Dimensions | 240 × 240 × 496 mm (W × H × D; 416 mm installation length plus 80 mm shaft end) |
| Weight | 44,001 kg net |
Related products
Go to shop

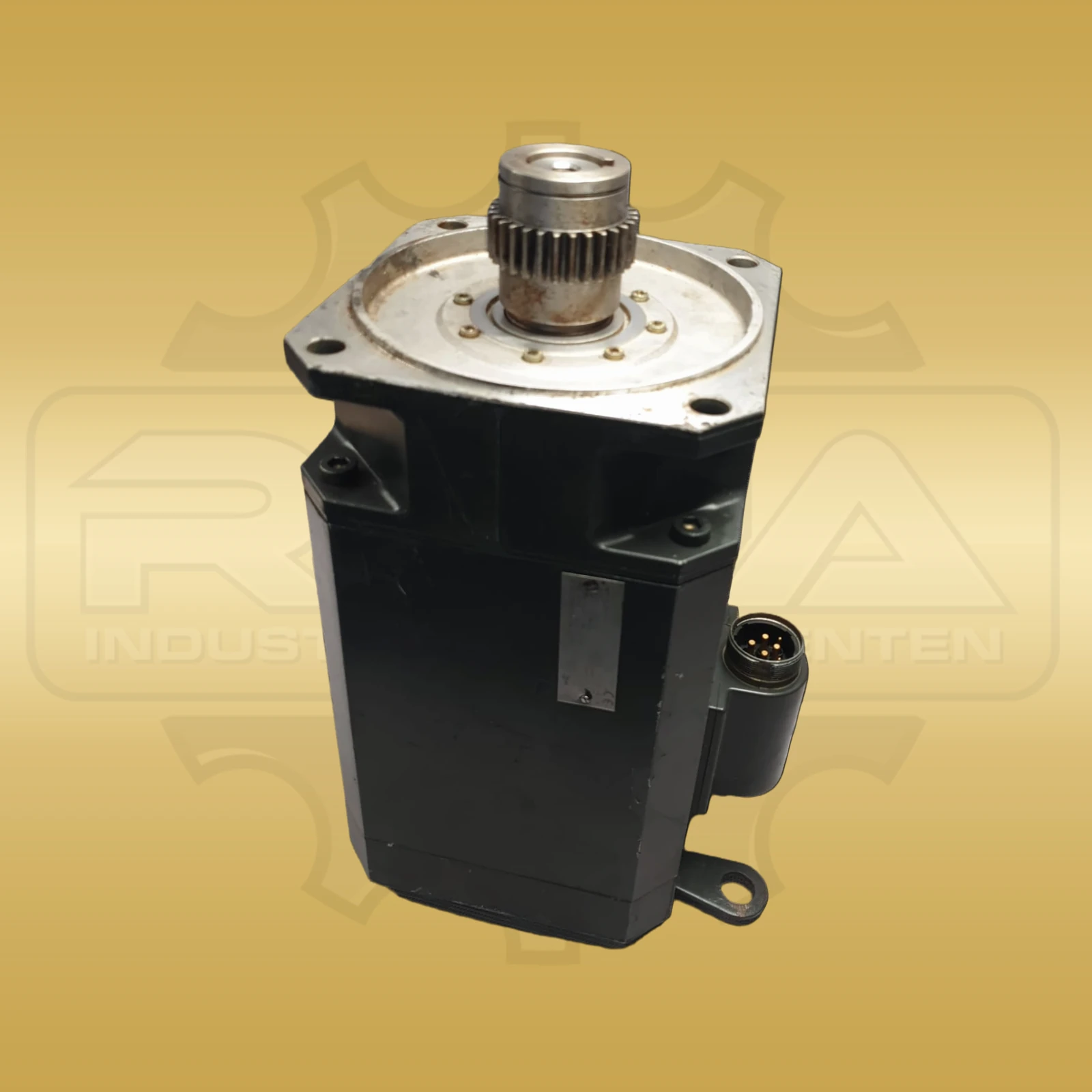

Siemens 1FT6102-8AB71-4AH0
