Siemens 6RA 2176 6GS20 6ED0
€2,930.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
Complete inventory identifier Siemens 6RA2176-4DB0-ZA03 designates a compact converter from the SIMOREG K 6RA21 series. In the Siemens manual, contained base version 6RA2176-6DS20 is assigned to type code D460/240 Mre-GcEF 6S20-2B1. Suffix ZA03 remains part of the complete identification number; no undocumented option feature is assigned to it. The technical table lists a three-phase 380 V AC rated supply. DC-side ratings are 460 V DC and 240 A, resulting in a documented rated output of 110 kW. Thyristor type MTT95A16N is specified. This size uses a fan supplied by single-phase 380 V AC at 50/60 Hz. Fan current is 0.45 A and delivery is approximately 130 litres per second. The outline drawing assigns a 500 mm high, 270 mm wide and 270 mm deep enclosure to this device group. Complete external dimensions are therefore 500 × 270 × 270 mm in height × width × depth order. Documented device weight is 27 kg. Both mechanical values refer to the individual converter without shipping packaging or external cables. Complete inventory identifier, base version, type code and voltage, current and output ratings jointly define the technical assignment. Dimensions and weight occupy the final two rows of the specification table.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | SIMOREG K / 6RA21 |
| Manufacturer / order / identification number | 6RA2176-4DB0-ZA03 |
| Device type | Compact converter for DC drives |
| Documented base version | 6RA2176-6DS20 |
| Type code | D460/240 Mre-GcEF 6S20-2B1 |
| Rated supply voltage | 3-phase, 380 V AC |
| Rated DC voltage | 460 V DC |
| Rated DC current | 240 A |
| Rated output | 110 kW |
| Thyristor type | MTT95A16N |
| Fan supply | 1-phase, 380 V AC, 50/60 Hz |
| Fan current | 0.45 A |
| Fan delivery | approx. 130 l/s |
| Dimensions | 500 × 270 × 270 mm (H × W × D) |
| Weight | 27 kg |
Related products
Go to shop
Siemens 6RA2477-6GS22-0
€2,840.00
Siemens 6RA2431-6GS22-0-Z
€2,930.00

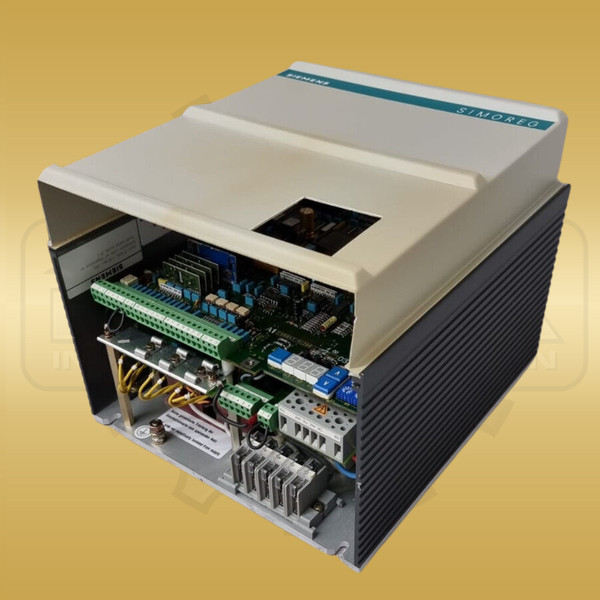

Siemens 6RA 2218-6DS22-0
Price on request
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the dimensions and weight of Siemens 6RA2176-4DB0-ZA03?
Complete external dimensions are 500 × 270 × 270 mm in height × width × depth order. Documented device weight is 27 kg.
Which electrical ratings are documented for the base version?
Base version 6RA2176-6DS20 is documented with 380 V three-phase supply, 460 V DC, 240 A and 110 kW.
