Siemens 6SL3130-6AE15-0AB1
€970.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

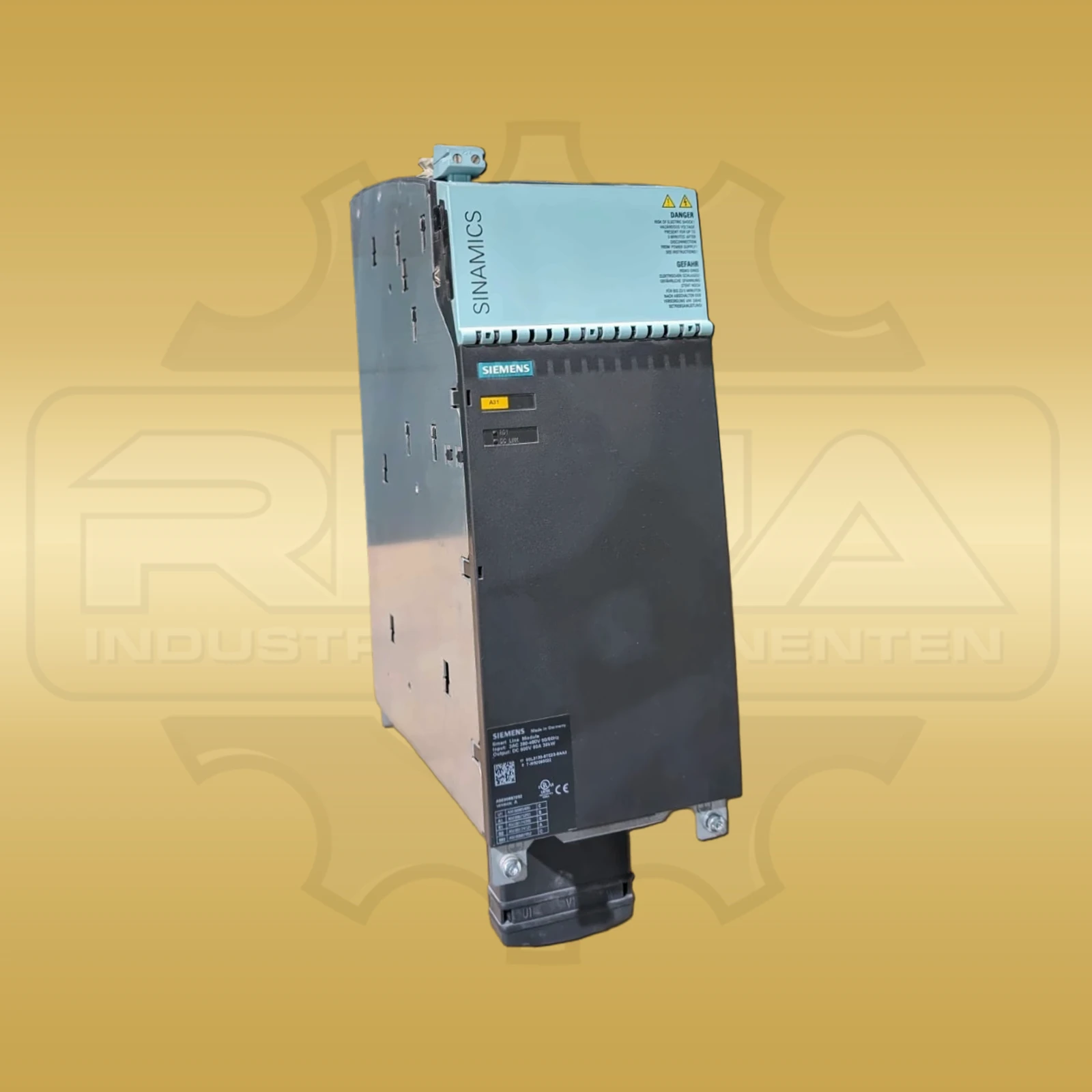

Siemens 6SL3130-6TE23-6AA3 is a Smart Line Module from the SINAMICS S120 product range. The complete product number identifies the 36-kW version in Booksize format with internal air cooling and a DRIVE-CLiQ cable. The line input is documented for 3 AC 380–480 V at 50/60 Hz. The variant-specific data sheet states a permissible line-voltage range of 342 to 528 V and a frequency range of 47 to 63 Hz. The output data are 600 V DC, 60 A and 36 kW. The electronics supply is 24 V DC with a tolerance of minus 15 to plus 20 percent. For line connection X1, Siemens states M6 studs and conductor cross-sections from 2.5 to 50 mm² or AWG 14 to AWG 1. The protective-conductor connection also uses M6. Documented short-circuit withstand is 65 kA. Fundamental power factor is at least 0.96. The module has degree of protection IP20 or UL open type. Power loss at rated power, including the 24-V-DC electronics supply, is 0.406 kW. Siemens states a cooling-air requirement of 0.031 m³/s for internal air cooling. Maximum DC-link capacitance of the drive system is 20.000 µF. The mechanical data in the official Siemens data sheet are 150 mm width, 380 mm height and 270 mm depth. Complete overall dimensions are therefore 150 × 380 × 270 mm (W × H × D). Net weight is 10.0 kg. Dimensions and weight refer to the individual Smart Line Module without other components, cables or shipping packaging.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | SINAMICS S120 |
| Manufacturer / order / identification number | 6SL3130-6TE23-6AA3 |
| Device type | Smart Line Module |
| Format | Booksize |
| Line input | 3 AC 380 to 480 V, 50/60 Hz |
| Permissible line-voltage range | 342 to 528 V |
| Permissible line frequency | 47 to 63 Hz |
| Output voltage | 600 V DC |
| Output current | 60 A |
| Rated power | 36 kW |
| Cooling | internal air cooling |
| Electronics supply | 24 V DC, -15 % / +20 % |
| Short-circuit strength | 65 kA |
| Power factor | fundamental power factor at least 0.96 |
| Line connection | M6 stud at X1 |
| Conductor cross-section | 2.5 to 50 mm², AWG 14 to AWG 1 |
| Dimensions | 150 × 380 × 270 mm (W × H × D) |
| Weight | 10.0 kg |
Related products
Go to shop
Siemens 6SL3130-6AE15-0AA0
€330.00
Siemens 6SL3130-7TE25-5AA3
€2,050.00
Siemens 6SL3430-6TE21-6AA1
€600.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the dimensions and weight of Siemens 6SL3130-6TE23-6AA3?
Overall dimensions are 150 × 380 × 270 mm (W × H × D). Net weight is 10.0 kg.
Which output data are documented?
The documented output data are 600 V DC, 60 A and 36 kW.
