Product description

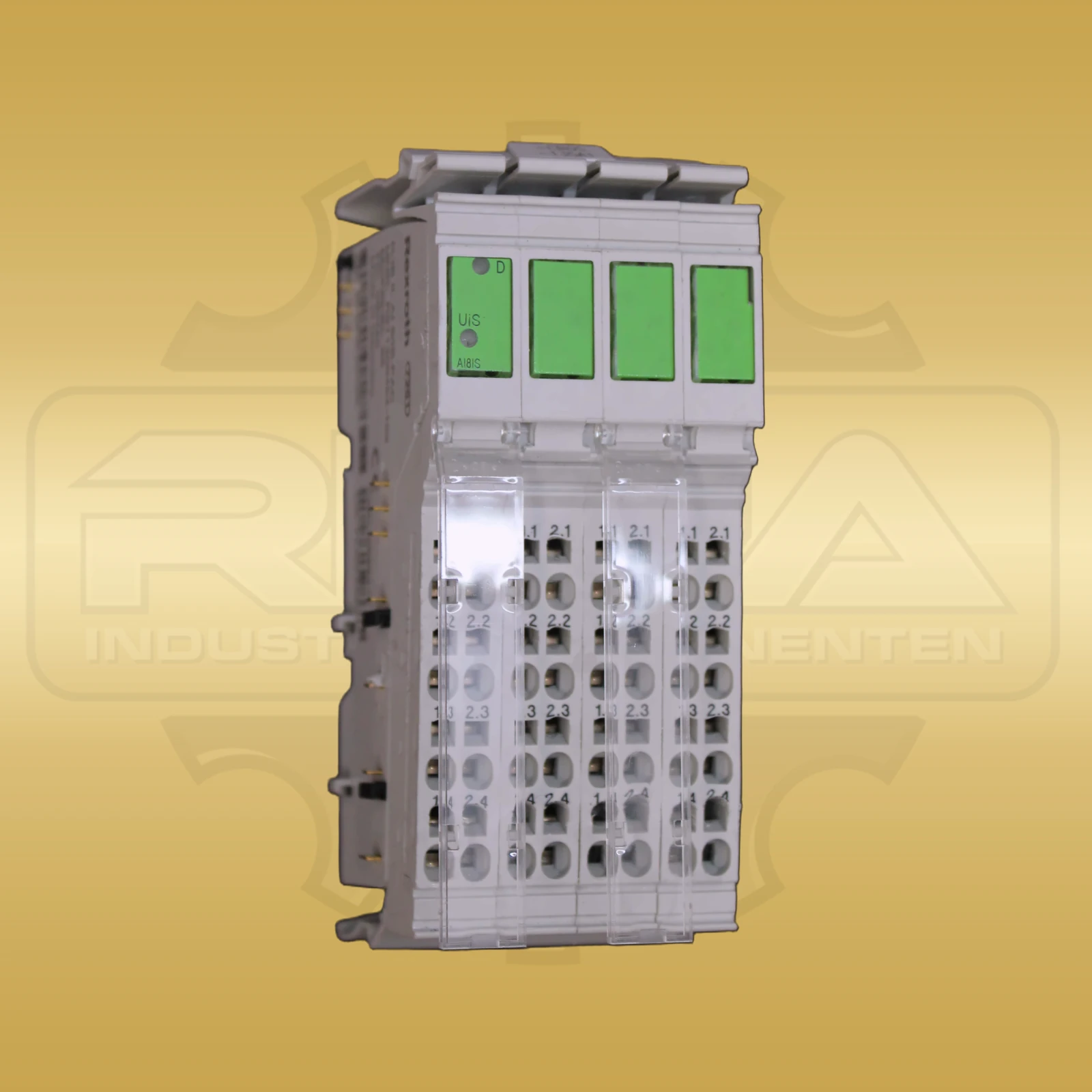

Eight analog single-ended current inputs are provided by the Bosch Rexroth R-IB-IL-AI-8-IS-PAC for acquiring current signals in an Inline station. The input module belongs to the Bosch Rexroth Inline series and also carries order number R911308494. Each channel can be configured independently through the bus system; measured values are resolved with 16 bit. The selectable current measuring ranges include 0 to 20 mA, 4 to 20 mA, ±20 mA, 0 to 40 mA and ±40 mA. Input resistance is 25 Ω. A current of up to ±100 mA is permissible for each input. The A/D converter requires a maximum of 10 µs. Digital averaging can be disabled or applied across 4, 16 or 32 measured values. The input filter cutoff frequency is 3.5 kHz at −3 dB. Active and passive sensors are connected using 2- or 3-wire technology. Peripheral supply UANA is 24 V DC; the module draws typically 31 mA and a maximum of 40 mA from it. The local bus operates at 7.5 V logic voltage, with typical current consumption of 52 mA and a maximum of 65 mA. Process data mode transmits 32 bit at 500 kBaud. The module reports failure of the peripheral supply as well as peripheral and user errors to the higher-level control. Its permissible operating temperature range is −25 °C to +55 °C. Relative humidity during operation may be 5 to 90 % without condensation. IP20 and protection class 3 define the housing design. At 48.8 mm wide, 135 mm high and 71.5 mm deep, the module has housing type 10. Net weight without connector is 0.125 kg. Manufacturer, complete identifier, order number, channel count and current ranges jointly establish the technical product binding.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Bosch Rexroth |
|---|---|
| Product series | Inline |
| Manufacturer/order/identification number | R-IB-IL-AI-8-IS-PAC |
| Order number | R911308494 |
| Device type | Analog input module |
| Analog inputs | 8 single-ended current inputs |
| Resolution | 16 bit |
| Current measuring ranges | 0 to 20 mA; 4 to 20 mA; ±20 mA; 0 to 40 mA; ±40 mA |
| Input resistance | 25 Ω |
| A/D conversion time | max. 10 µs |
| Input filter cutoff frequency | 3.5 kHz (−3 dB) |
| Sensor connection | 2- and 3-wire technology |
| Peripheral supply | 24 V DC |
| Local bus logic voltage | 7.5 V |
| Process data mode | 32 bit at 500 kBaud |
| Protection rating | IP20 |
| Dimensions | 48.8 × 135 × 71.5 mm (W × H × D) |
| Weight | 0.125 kg without connector |
Related products
Go to shop

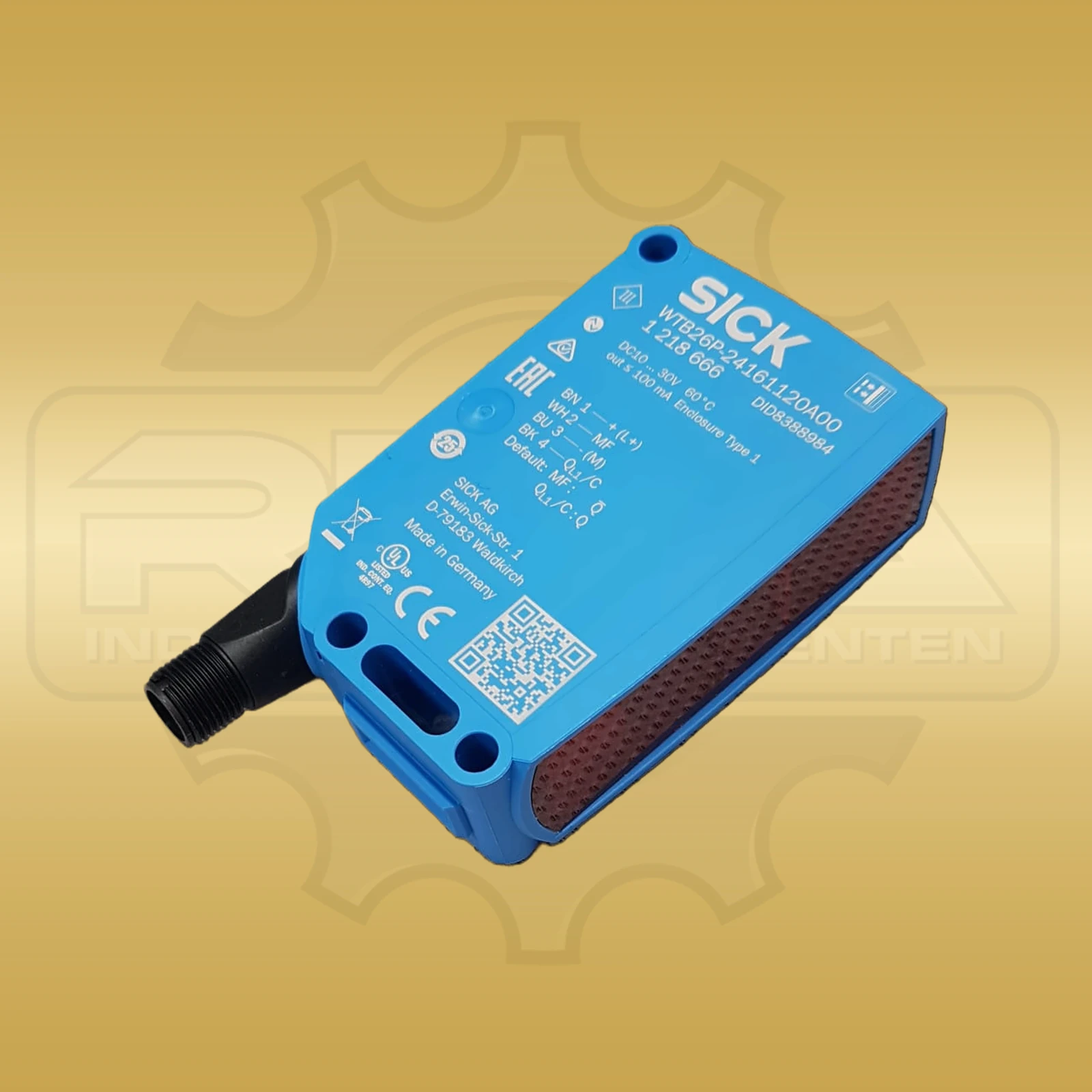

SICK WTB26P-24161120A00
Price on request

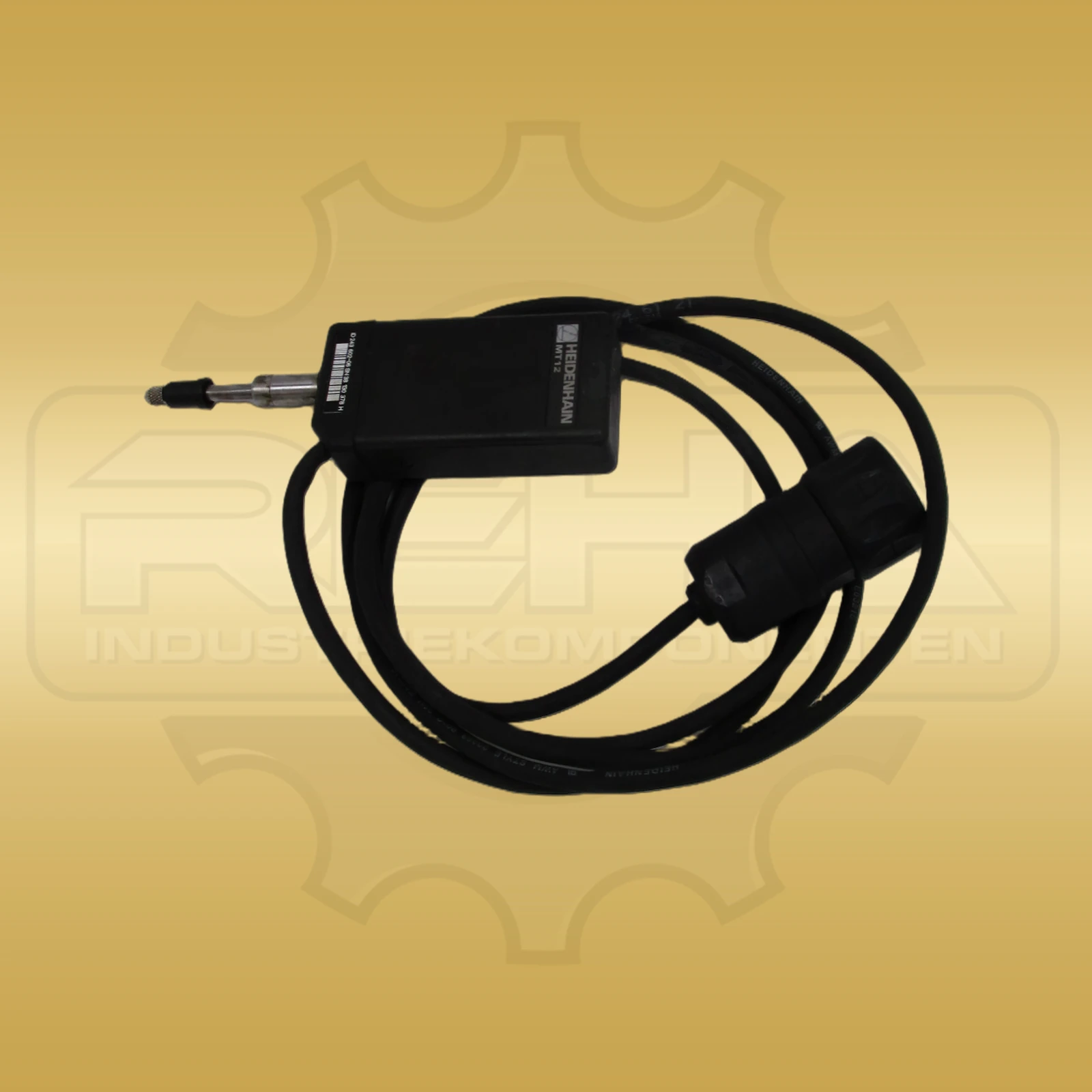

Heidenhain 243602-06
Price on request

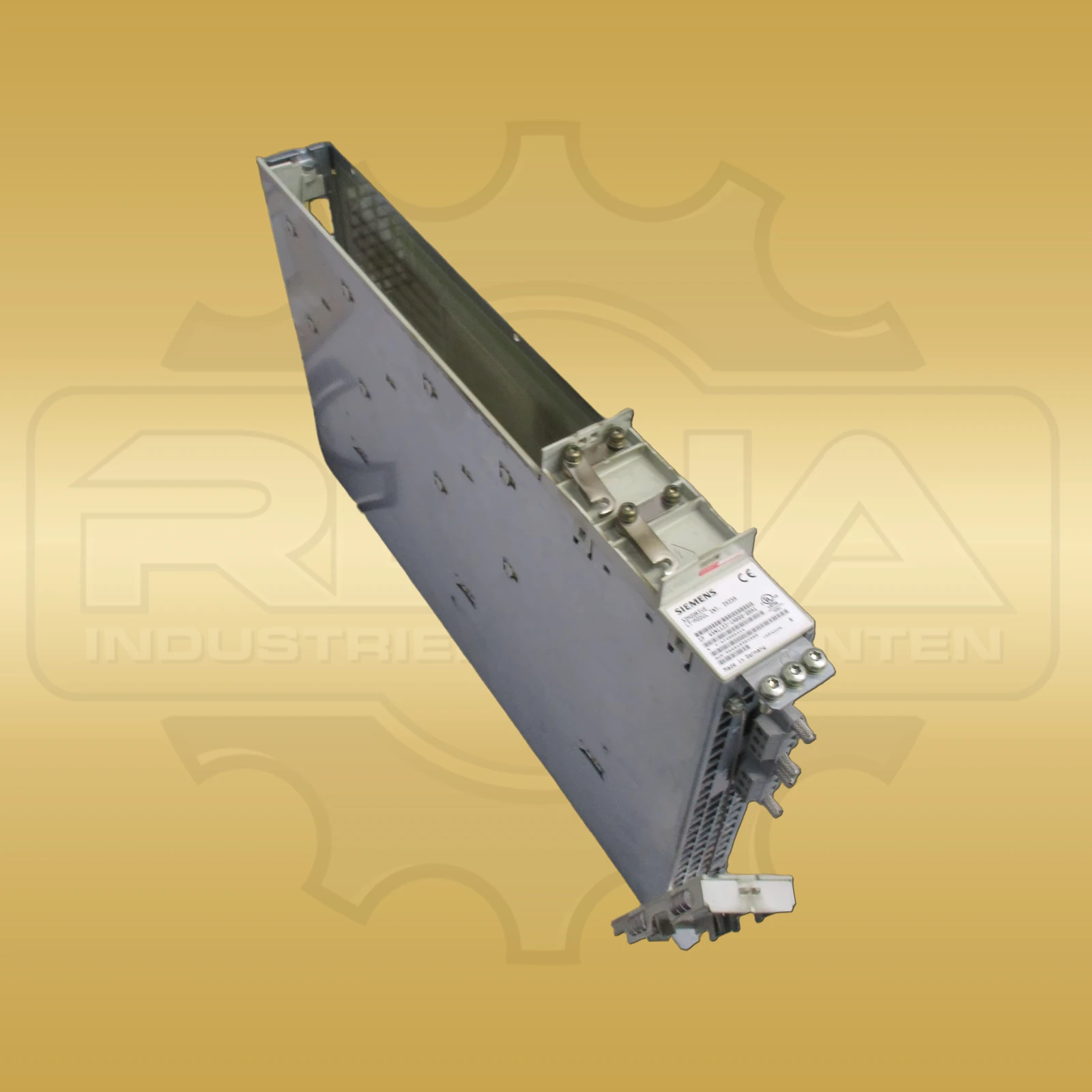

Siemens 6SN1123-1AB00-0BA1
€830.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
Which current signals does the R-IB-IL-AI-8-IS-PAC process?
Eight single-ended inputs support 0 to 20 mA, 4 to 20 mA, ±20 mA, 0 to 40 mA and ±40 mA at 16 bit resolution.
What supply and dimensions apply?
Peripheral supply is 24 V DC. The module measures 48.8 × 135 × 71.5 mm and weighs 0.125 kg without connector.
