Control Techniques DIN3380300B
Price on request
Availability is checked individually.
Product condition:
Used, removed from an installation
The item comes from dismantled equipment. We have not carried out an electrical inspection or a comprehensive operational check. Signs of age, use, installation or removal may be present. 14-day right of return in the event of a defect. See Terms and Conditions
- The estimated delivery time will be confirmed for the specific order.
- Urgent? Faster options such as direct or express shipping are often possible. Please state your required date when you request a quote or order.
Do you have any questions?
Personal service
We are happy to help with processing, shipping or individual quotations. Simply contact us:
Online and available Currently unavailable
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

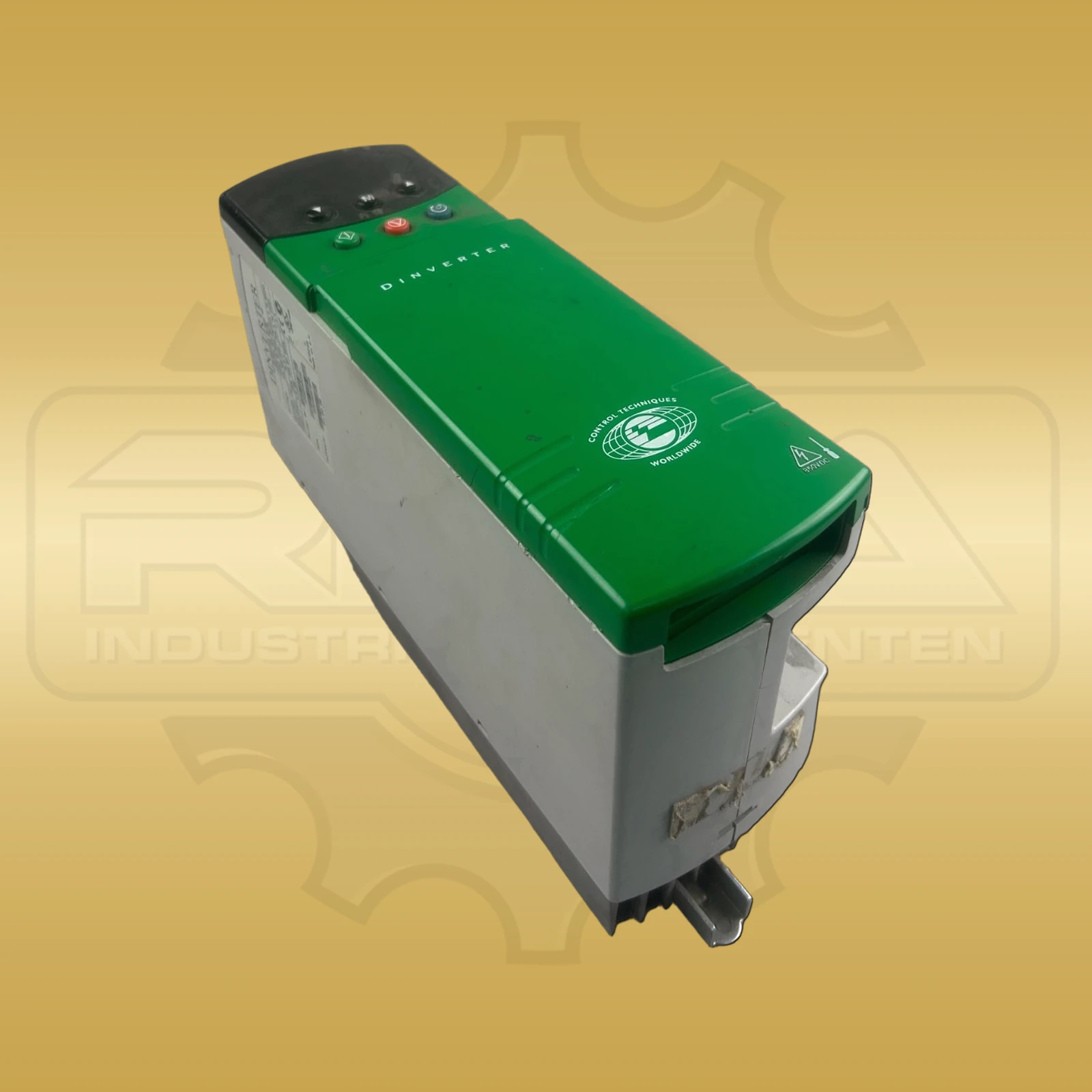

The Control Techniques DIN3380300B is rated for three-phase supply with 380 to 480 V AC. The frequency inverter belongs to the Dinverter 2B series and is specified with 3 kW motor power. A tolerance of ±10 percent applies to the mains voltage range. The permissible mains frequency is between 48 and 62 Hz. In rated operation, the RMS input current is 11.6 A; the associated apparent input power is specified as 7.6 kVA. On the motor side, the version delivers an RMS rated current of 7.6 A. The overload specification is 150 percent or 11.4 A for 60 seconds. For an order with shipping from Germany to the United States and other international destinations, DIN3380300B designates this three-phase 3-kW version within the Dinverter-2B series. Cooling is by a fan with an air flow of 0.72 m³/min. The power loss depends on the selected PWM switching frequency: at 2.9 kHz it is 90 W, at 5.9 kHz 105 W, at 8.8 kHz 120 W and at 11.7 kHz 138 W. The loss values apply to 440 V mains voltage, 41 Hz output frequency and 100 percent output current. Four-wire RS422 or RS485 is available for serial communication. The protocol is ANSI X3.28-2.5-A4; the baud rate can be 4800 or 9600. The digital frequency reference via this communication has a resolution of 0.001 Hz. The selectable upper output frequency depends on the PWM switching frequency and reaches up to 960 Hz in the specified combinations. The unit measures 91 × 293 × 200 mm. The weight is specified as 3.4 kg; no separate net or shipping reference is stated for it.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Control Techniques |
|---|---|
| Product series | Dinverter 2B |
| Manufacturer / order / ident number | DIN3380300B |
| Device type | AC frequency inverter |
| Mains voltage | 380–480 V AC ±10 % |
| Mains phases | 3 |
| Mains frequency | 48–62 Hz |
| Motor power | 3 kW |
| Rated input current | 11.6 A RMS |
| Rated output current | 7.6 A RMS |
| Overload current | 11.4 A for 60 s |
| Apparent input power | 7.6 kVA |
| Cooling | Fan, air flow 0.72 m³/min |
| Power loss | 90/105/120/138 W at 2.9/5.9/8.8/11.7 kHz PWM |
| Serial interface | 4-wire RS422 or RS485 |
| Communication protocol | ANSI X3.28-2.5-A4 |
| Communication rate | 4800 or 9600 baud |
| Dimensions | 91 × 293 × 200 mm |
| Weight (reference not specified) | 3.4 kg |
