Control Techniques M700-034
€1,380.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
Three-phase supplies from 380 to 480 V AC define the electrical operating range of the Control Techniques M700-04400150-A. The identifier belongs to the Unidrive M700 series and identifies frame size 4 and the 400-V class. The final A denotes the drive format with AC input and AC output. As a universal AC and servo drive, the series combines open-loop and closed-loop control modes for induction, permanent magnet, servo and linear motors. Two load profiles distinguish the performance data. In Normal Duty operation, the maximum continuous output current is 18.5 A at a rated power of 7.5 kW. Heavy Duty ratings are 15.0 A and 5.5 kW. Typical input current is 17 A, while maximum continuous input current is 19 A. The specified IEC fuse rating is 25 A gG. These values matter more for identification than a single power figure, because the current and power ratings together define the full variant. The M700 version has Ethernet fieldbus communication and a single-channel Safe Torque Off input. Up to three option modules can extend the automation, motion, I/O or feedback functions. An NV-Media-Card stores and transfers parameters. For a specific quotation, shipping from Germany to the United States and other international destinations is considered together with the quantity and full type identifier. The housing measures 124 mm in width, 391 mm in height and 200 mm in depth; net weight is 6.5 kg. Mechanical and electrical comparison therefore covers frame size, supply voltage class, both duty ratings, communication version and drive format A. The complete code M700-04400150-A distinguishes this configuration from other current ratings and M700 derivatives.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Control Techniques |
|---|---|
| Product series | Unidrive M700 |
| Manufacturer / order / identification number | M700-04400150-A |
| Device type | Universal AC and servo drive |
| Frame size | 4 |
| Drive format | AC input / AC output |
| Supply voltage | 380-480 V AC ±10 % |
| Supply phases | 3 |
| Continuous output current, Normal Duty | 18.5 A |
| Rated power, Normal Duty | 7.5 kW |
| Continuous output current, Heavy Duty | 15.0 A |
| Rated power, Heavy Duty | 5.5 kW |
| Typical input current | 17 A |
| Maximum continuous input current | 19 A |
| IEC fuse | 25 A gG |
| Communication | Ethernet fieldbus |
| Safety function | Single-channel Safe Torque Off (STO) |
| Dimensions | 124 × 391 × 200 mm (W × H × D) |
| Weight | 6.5 kg |
Related products
Go to shop
Control Techniques M702-034
€590.00
Control Techniques M753-024
€2,350.00

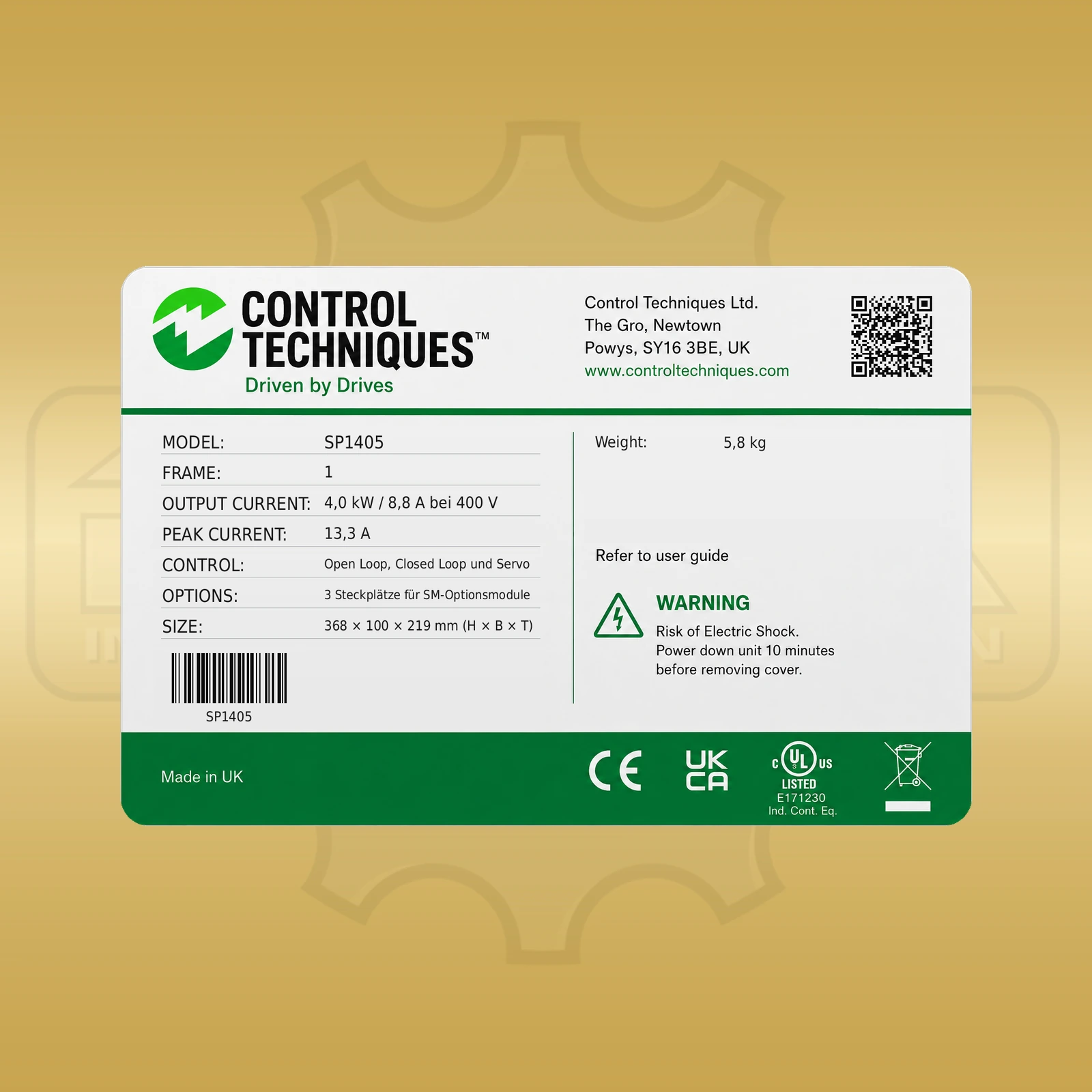

Control Techniques SP1405
€962.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
Which Normal Duty and Heavy Duty ratings apply to the M700-04400150-A?
Normal Duty is specified at 18.5 A and 7.5 kW. Heavy Duty ratings are 15.0 A and 5.5 kW.
What are the dimensions and net weight of frame size 4?
Frame size 4 measures 124 × 391 × 200 mm in width, height and depth. Net weight is 6.5 kg.
