Control Techniques SP1405
€740.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

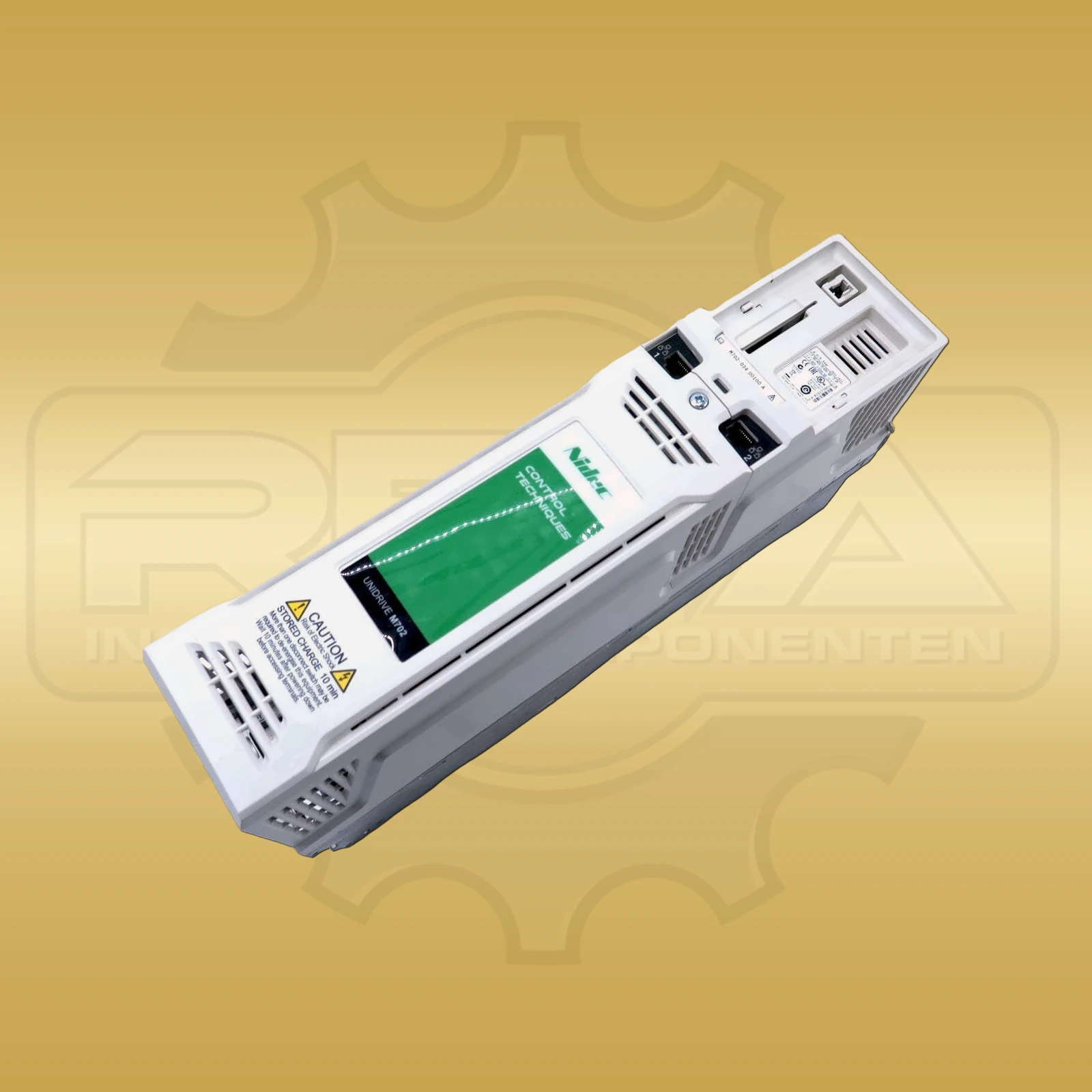

Control Techniques M702-034 belongs to the Unidrive M702 series and has frame size 3. The current-loop cycle is 62 µs. Maximum output frequency is 599 Hz in open loop and 550 Hz with RFC-A and RFC-S. Switching frequencies are 2, 3, 4, 6, 8, 12 or 16 kHz; the standard is 3 kHz. Two switched Ethernet ports carry EtherNet/IP, Modbus TCP, RTMoE and PROFINET RT. Control modes are open loop, RFC-A and RFC-S. Two Safe Torque Off inputs form the safety function; functional safety is specified as SIL 3 to IEC 61800-5-2 and PL e to EN ISO 13849-1. Control functions include programmable logic with real-time tasks and an integrated Advanced Motion Controller. The temperature range extends from −20 to +40 °C without derating and to +55 °C with derating. The narrow front carries display, operating and device markings. Side airflow paths run alongside the power section; the rear forms the mounting plane. Ethernet, motor, mains and control connections occupy separate functional areas. Power section, control and cooling remain within the rectangular outer contour. Manufacturer, product series and type number are Control Techniques, Unidrive M702 and M702-034. Complete external dimensions are 83 × 365 × 200 mm. A maximum weight of 4.5 kg is specified for frame size 3.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Control Techniques |
|---|---|
| Product range | Unidrive M702 |
| Manufacturer / order / identification number | M702-034 |
| Device type | High-performance variable frequency drive |
| Control modes | Open Loop, RFC-A and RFC-S |
| Current-loop update | 62 µs |
| Maximum output frequency | 599 Hz Open Loop; 550 Hz with RFC-A and RFC-S |
| Switching frequencies | 2, 3, 4, 6, 8, 12 or 16 kHz; default 3 kHz |
| Ethernet interfaces | 2 switched Ethernet ports |
| Ethernet protocols | EtherNet/IP, Modbus TCP, RTMoE and PROFINET RT |
| Safety function | 2 Safe Torque Off inputs |
| Functional safety | SIL 3 according to IEC 61800-5-2 and PL e according to EN ISO 13849-1 |
| Integrated control function | Programmable logic with real-time tasks |
| Motion function | Integrated Advanced Motion Controller |
| Ambient temperature | −20 to +40 °C without derating; up to +55 °C with derating |
| Dimensions | 83 × 365 × 200 mm (W × H × D) |
| Weight | max. 4.5 kg |
Related products
Go to shop
Control Techniques SP3401
€1,470.00
Control Techniques UNI1404
€1,340.00
Control Techniques UNI2403
€1,090.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the dimensions and weight of Control Techniques M702-034?
Complete external dimensions are 83 × 365 × 200 mm; a maximum weight of 4.5 kg is specified for frame size 3.
Which network and safety interfaces does Control Techniques M702-034 have?
Two Ethernet ports carry EtherNet/IP, Modbus TCP, RTMoE and PROFINET RT; two inputs are specified for Safe Torque Off.
