KUKA ECMAS3D2224BE531
€570.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

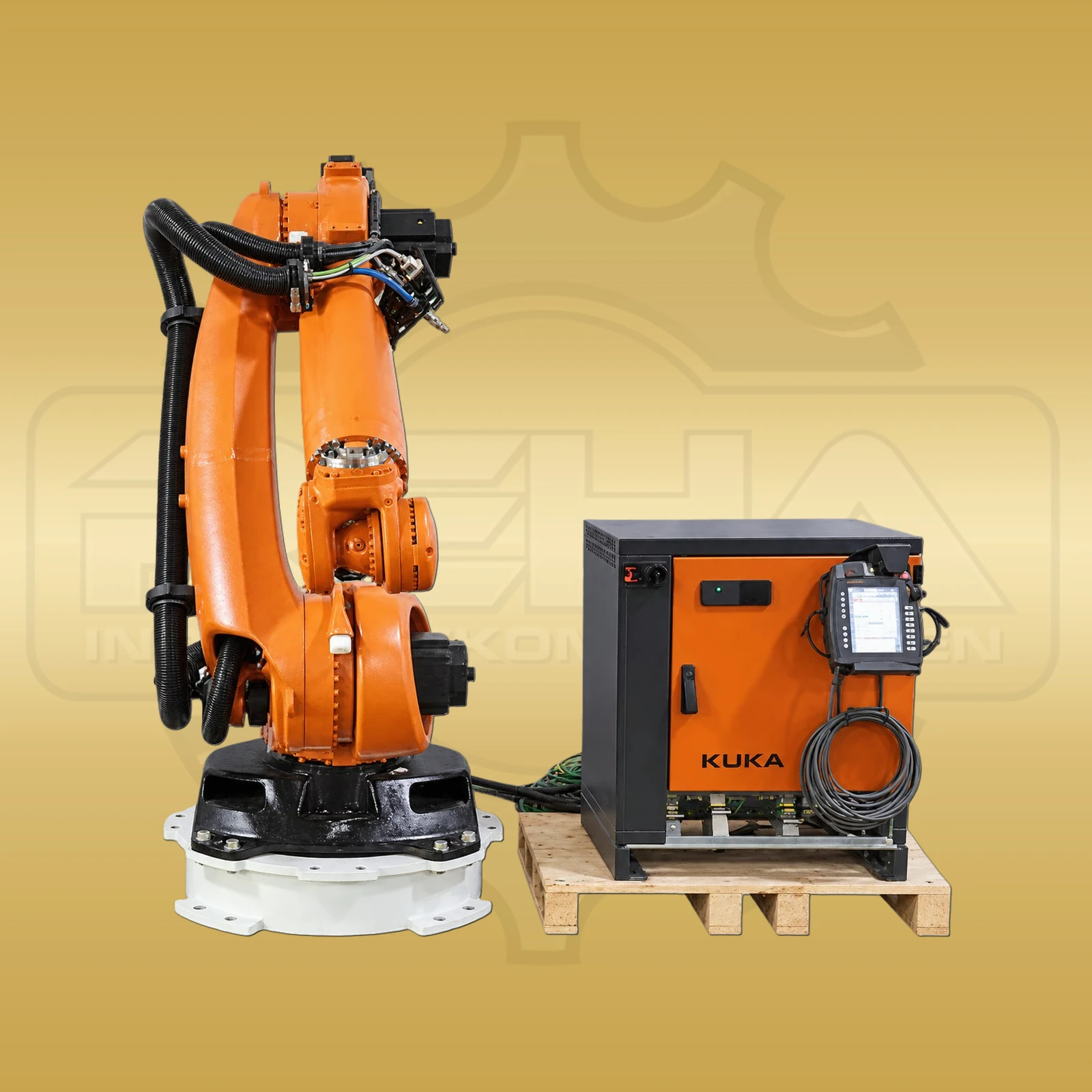

The KUKA KR 60 L30-4 KS is a six-axis industrial robot with a rated payload of 30 kg at the in-line wrist. Its reach is 2,628 mm. The mechanical structure is divided into base frame, rotating column, link arm, arm and wrist. The three main axes A1 to A3 move the arm assembly; the three wrist axes A4 to A6 perform the movements of the in-line wrist. The wrist is attached to the arm via a flange. The drives of the wrist axes are located on the arm and transmit their motion via shafts. The version belongs to the KR 30, 60-4 KS family with the KR C4 controller platform. For the specific order for this manipulator with a three-axis wrist, shipping from Germany to the United States and other international destinations is arranged. The software motion limit of axis A1 is ±150°, its angular velocity 138°/s. For A2, the motion range extends from −105° to +75°; the associated velocity is 130°/s. Axis A3 operates within −120° to +158° at 166°/s. At the wrist, A4 has a range of ±350° and a velocity of 260°/s. Axis A5 is limited to ±119° and reaches 245°/s. For A6, ±350° and 322°/s apply. The specified angular ranges are the respective software limits of the six individual axes. The payload refers to the wrist, while the dead weight of the manipulator is considered separately. This weight is estimated at approx. 620 kg. As a rough housing and arm geometry depending on the joint position, approx. 1.500 × 2,000 × 1,500 mm is assumed.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | KUKA |
|---|---|
| Product series | KR 30/60-4 KS |
| Manufacturer/order/ident number | KR 60 L30-4 KS |
| Device type | Six-axis industrial robot |
| Rated payload at wrist | 30 kg |
| Reach | 2,628 mm |
| Control range axis A1 | ±150° |
| Angular velocity axis A1 | 138°/s |
| Control range axis A2 | −105° to +75° |
| Angular velocity axis A2 | 130°/s |
| Control range axis A3 | −120° to +158° |
| Angular velocity axis A3 | 166°/s |
| Control range axis A4 | ±350° |
| Angular velocity axis A4 | 260°/s |
| Control range axis A5 | ±119° |
| Angular velocity axis A5 | 245°/s |
| Control range axis A6 | ±350° |
| Angular velocity axis A6 | 322°/s |
| Dimensions | approx. 1500 × 2000 × 1500 mm |
| Weight | approx. 620 kg |
Related products
Go to shop
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
Which motion limits apply to A2?
The software motion range of axis A2 extends from −105° to +75°. The angular velocity is 130°/s.
