Product description

The Lenze E84AVSCE1524SX0 is an 8400 StateLine C frequency inverter designed for controlled industrial drives in machinery, conveyor technology, packaging equipment and material-flow systems. The exact device version provides a typical motor output of 1.5 kW and is intended for three-phase mains in the 400-/500-V class. The documented voltage range of 320 to 550 V AC and mains frequency of 45 to 65 Hz support use in internationally operated systems. Lenze VFCplus and sensorless vector control are available for motor control. The output frequency range extends to 599 Hz and therefore provides reserves for application-specific speed concepts. CANopen communication and plug-in extension modules enable connection to existing control architectures. Integrated brake management supports dynamic deceleration with a suitably rated external braking resistor. The STO safety function is used to switch off motor torque safely within the intended machine concept. As an IP20 device, the inverter is intended for protected control-cabinet installation. During replacement, the complete type number, mains and motor data, motor connection, input and output signals, communication option, STO wiring and saved parameter set must match the existing device. Switching frequency, ramps, current limits and brake circuitry must also be transferred for the specific application. Unobstructed cooling air paths and the prescribed mounting clearances support stable continuous operation. The E84AVSCE1524SX0 is therefore particularly suitable as a type-specific replacement in existing 8400 StateLine C installations where the mechanical layout and control structure are to remain unchanged. Stored parameters should be backed up completely before removing the old device and assigned clearly to the machine. Before commissioning, grounding, protective circuitry, motor parameters and safety functions must be checked against the Lenze documentation.

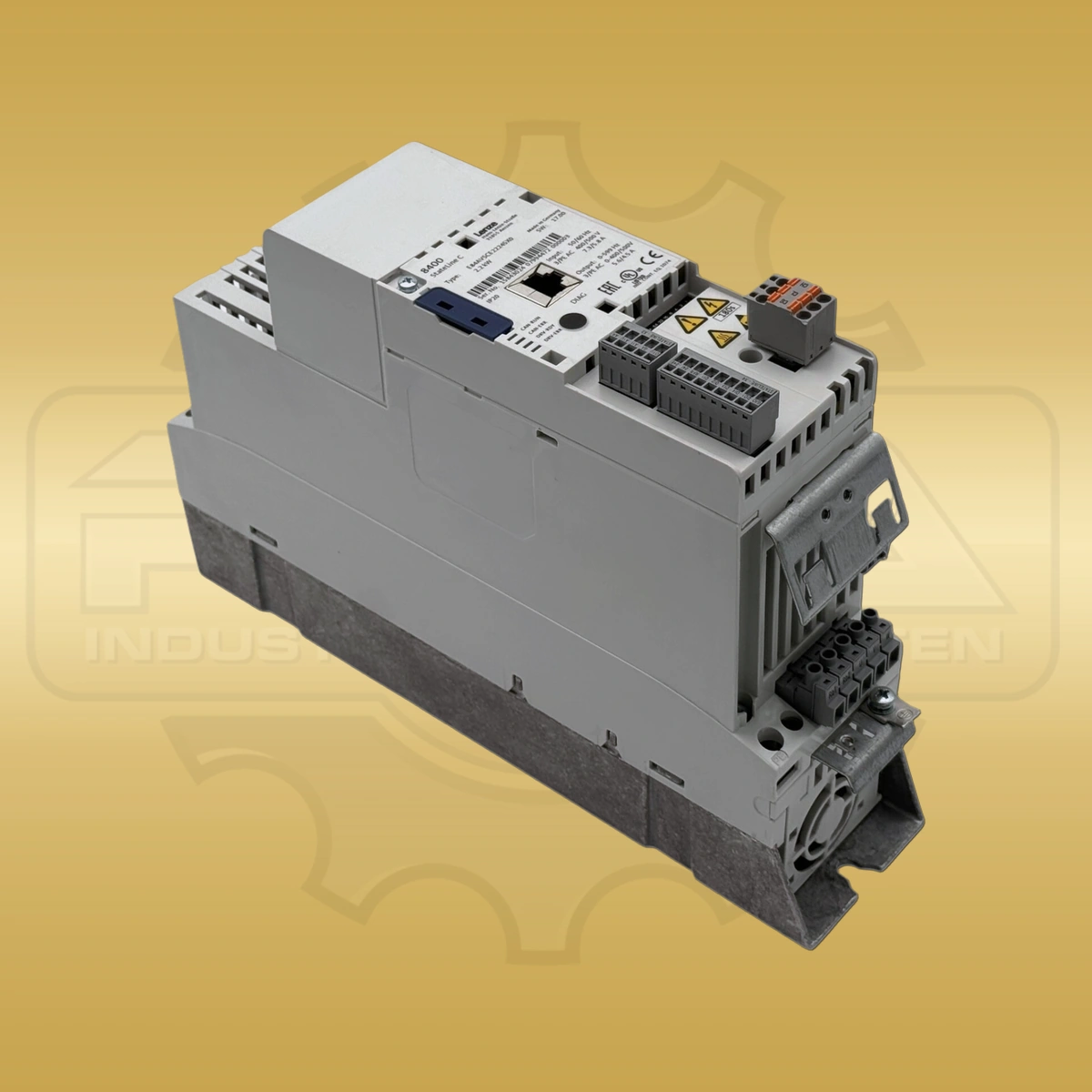

Lenze E84AVSCE1524SX0

Specifications

Manufacturer Lenze
Product range 8400 StateLine C
Manufacturer / order / identification number E84AVSCE1524SX0
Device type frequency inverter
Typical motor power 1.5 kW
Mains connection 3/PE AC 400/500 V
Mains voltage range 320 to 550 V AC
Mains frequency 45 to 65 Hz
Rated output current 3.9 A at 400 V / 3.1 A at 500 V
Output frequency 0 to 599 Hz
Control method VFCplus and sensorless vector control
Communication CANopen
Safety function STO (Safe Torque Off)
Brake management integrated brake chopper for external braking resistor
Protection rating IP20
Parameter setting keypad or Lenze EASY Starter
Control cabinet with PLC modules and automation components
Machine downtime in a production environment

Machine downtime?

Faster delivery

Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.

Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.

Contact us now!

Product safety

Manufacturer / EU responsible person

FAQ

Frequently asked questions

Contact us
Which applications is the Lenze E84AVSCE1524SX0 designed for?

The inverter is intended for speed-controlled industrial drives with a typical 1.5-kW motor output, such as conveyor, packaging and material-flow systems.

What must be checked when replacing the E84AVSCE1524SX0?

The complete order number, mains and motor data, communication option, input and output assignment, STO wiring, brake concept and saved parameter set must be compared.
