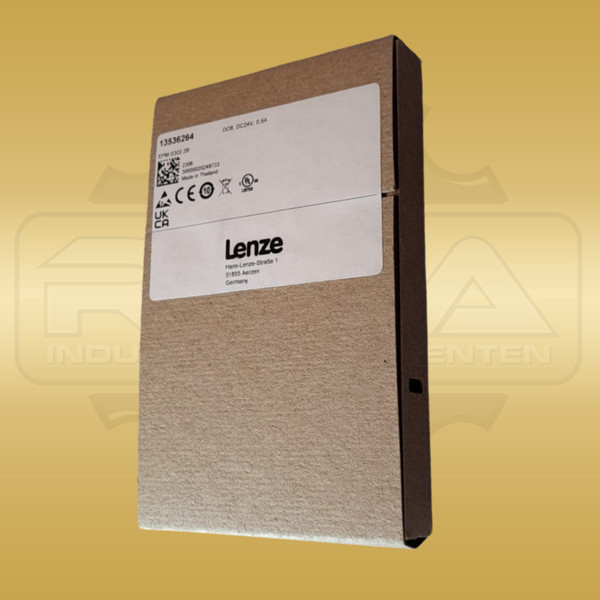

Lenze EPM-S302.2B I/O System 1000 digital output module
€140.00
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description
The Lenze EPM-S206 is a digital input module for the modular I/O system 1000. It detects up to eight binary control signals from the process level and provides them to the higher-level bus system in an eight-bit process image. This version uses negative-switching NPN technology and is designed for a rated voltage of 24 V DC. For the EPM-S206, signal 0 has an input range of 15 to 28.8 V DC, while signal 1 has a range of 0 to 5 V DC. Input current at signal 1 is 3 mA, and the filter delay for both signal transitions is 3 ms. The module uses 1-wire connection technology and requires 65 mA from the backplane bus. The input channels are electrically isolated from the backplane bus, with insulation tested at 500 V DC. Green LEDs for each channel indicate the signal states and support diagnostics directly in the control cabinet. The compact IP20 enclosure measures 100 × 12.5 × 76 mm and weighs only 0.06 kg. This allows the EPM-S206 to be integrated efficiently on the DIN rail in existing Lenze I/O stations. The offered used module additionally carries identification number 13367252 and the designations 2A and E340765-7230V11. For replacement, the type number, NPN switching logic, wiring diagram, hardware version and installed bus coupler should be compared. The EPM-S206 is particularly suitable for machine modules with numerous digital feedback signals, limit switches or status contacts that require a compact, negative-switching 24-V input level. Its eight channels, short input delay and clear LED indication support rapid commissioning and troubleshooting.
Specifications
| Manufacturer | Lenze |
|---|---|
| Product series | I/O system 1000 |
| Manufacturer / order / identification number | EPM-S206 |
| Device type | Digital I/O compound module |
| Function / signal type | Digital inputs, negative-switching (NPN) |
| Input channels | 8 |
| Rated voltage | 24 V DC |
| Input level signal 0 | 15 to 28.8 V DC |
| Input level signal 1 | 0 to 5 V DC |
| Input current at signal 1 | 3 mA |
| Input delay | 3 ms for 0→1 and 1→0 |
| Connection technology | 1-wire technology |
| Backplane bus current consumption | 65 mA |
| Input process image | 8 bits |
| Isolation | 500 V DC between backplane bus and I/O signal |
| Protection rating | IP20 |
| Dimensions (H × W × D) | 100 × 12.5 × 76 mm |
| Weight | 0.06 kg |
Related products
Go to shop
Lenze E84AVBDE3712SX0
€320.00
Lenze EVS9321-ESV004 9300 servo inverter 0.37 kW
€2,200.00
Lenze EMB9343-E
€3,520.00
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
Which signals does the Lenze EPM-S206 process?
The module processes eight negative-switching NPN digital inputs for 24 V DC and transfers them as an eight-bit process image.
Which signal levels apply to the EPM-S206?
For the EPM-S206, signal 0 corresponds to a range of 15 to 28.8 V DC and signal 1 to a range of 0 to 5 V DC.
