Mitsubishi Electric GT2708-STBD
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
A resolution of 320 × 128 pixels characterises the Mitsubishi Electric GT2103-PMBD within the GOT2000-GT21 range. The 3.8-inch TFT is monochrome and displays 32 shades of grey. The visible display area measures 89.0 × 35.6 mm. Brightness can be adjusted through 32 levels. The LED backlight can display white, green, pink, orange or red. The analogue resistive touch panel supports single-point operation. The supply is 24 V DC with a tolerance of +10 and −15 percent. Under maximum load, the device consumes no more than 2.6 W; consumption with the backlight switched off is specified as 2.0 W. The serial RS-422/485 interface operates at up to 115200 bit/s. Ethernet is available as 10BASE-T and 100BASE-TX through the RJ45 connection. A USB Mini-B device interface reaches Full-Speed at 12 Mbit/s. The SDHC slot supports cards up to 32 GB. The protective structure is documented as IP67F outside the enclosure and IP2X inside the control panel. When mounted horizontally, the operating temperature range is 0 to +55 °C; when mounted vertically, it is 0 to +50 °C. Storage is permitted from −20 to +60 °C. Relative humidity may range from 10 to 90 percent and must remain non-condensing. Permissible control-panel thickness is between 1 and 4 mm. The enclosure is 113 mm wide, 74 mm high and 32 mm deep. The control-panel cutout measures 105 × 66 mm. Net weight without mounting fittings is 0.2 kg. The archive image shows Mitsubishi Electric and the complete GT2103-PMBD type number.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Mitsubishi Electric |
|---|---|
| Product range | GOT2000 GT21 |
| Manufacturer/order/identification number | GT2103-PMBD |
| Device type | Graphic Operation Terminal (HMI) |
| Display | 3.8-inch TFT monochrome display |
| Resolution | 320 × 128 pixels |
| Display area | 89.0 × 35.6 mm (W × H) |
| Shades of grey and brightness | 32 shades of grey; brightness adjustable through 32 levels |
| Backlight | 5-colour LED: white, green, pink, orange and red |
| Touch panel | Analogue resistive film; single-point operation |
| Supply voltage | 24 V DC (+10 %, −15 %) |
| Power consumption | Maximum 2.6 W; 2.0 W with backlight switched off |
| Serial interface | RS-422/485, 1 channel, up to 115200 bit/s |
| Ethernet | 10BASE-T/100BASE-TX, RJ45 |
| USB and memory card | USB Mini-B, Full-Speed 12 Mbit/s; SDHC up to 32 GB |
| Protective structure | Outside the enclosure IP67F; inside IP2X |
| Ambient conditions | Operation 0 to +55 °C horizontally or 0 to +50 °C vertically; storage −20 to +60 °C; 10–90 % relative humidity, non-condensing |
| Control-panel cutout | 105 × 66 mm (W × H) |
| Dimensions | 113 × 74 × 32 mm (W × H × D) |
| Weight | 0.2 kg net weight without mounting fittings |
Related products
Go to shop

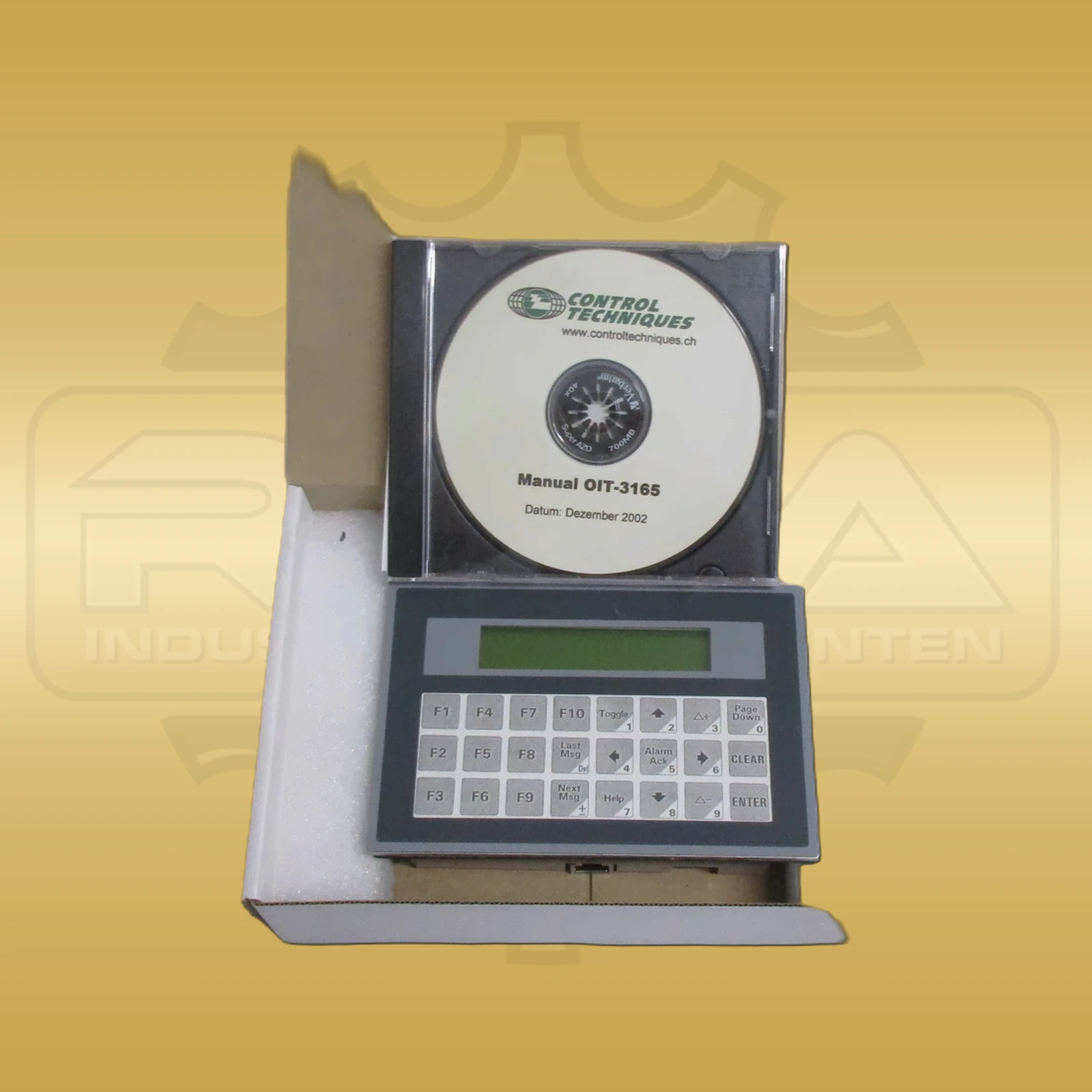

Control Techniques EMC-OIT-3165-A
Price on request

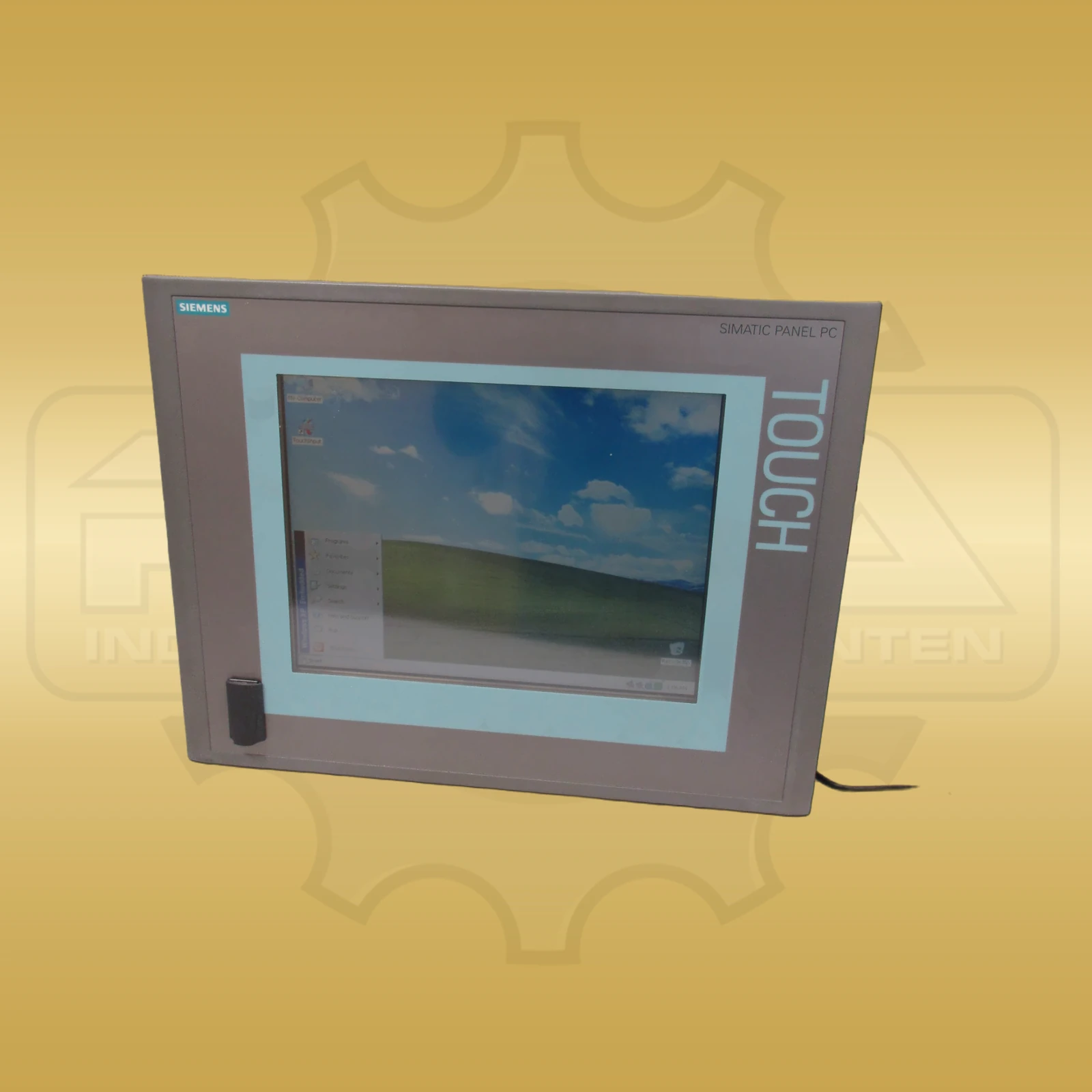

Siemens 6AV7851-0AE10-1AA0
