Product description

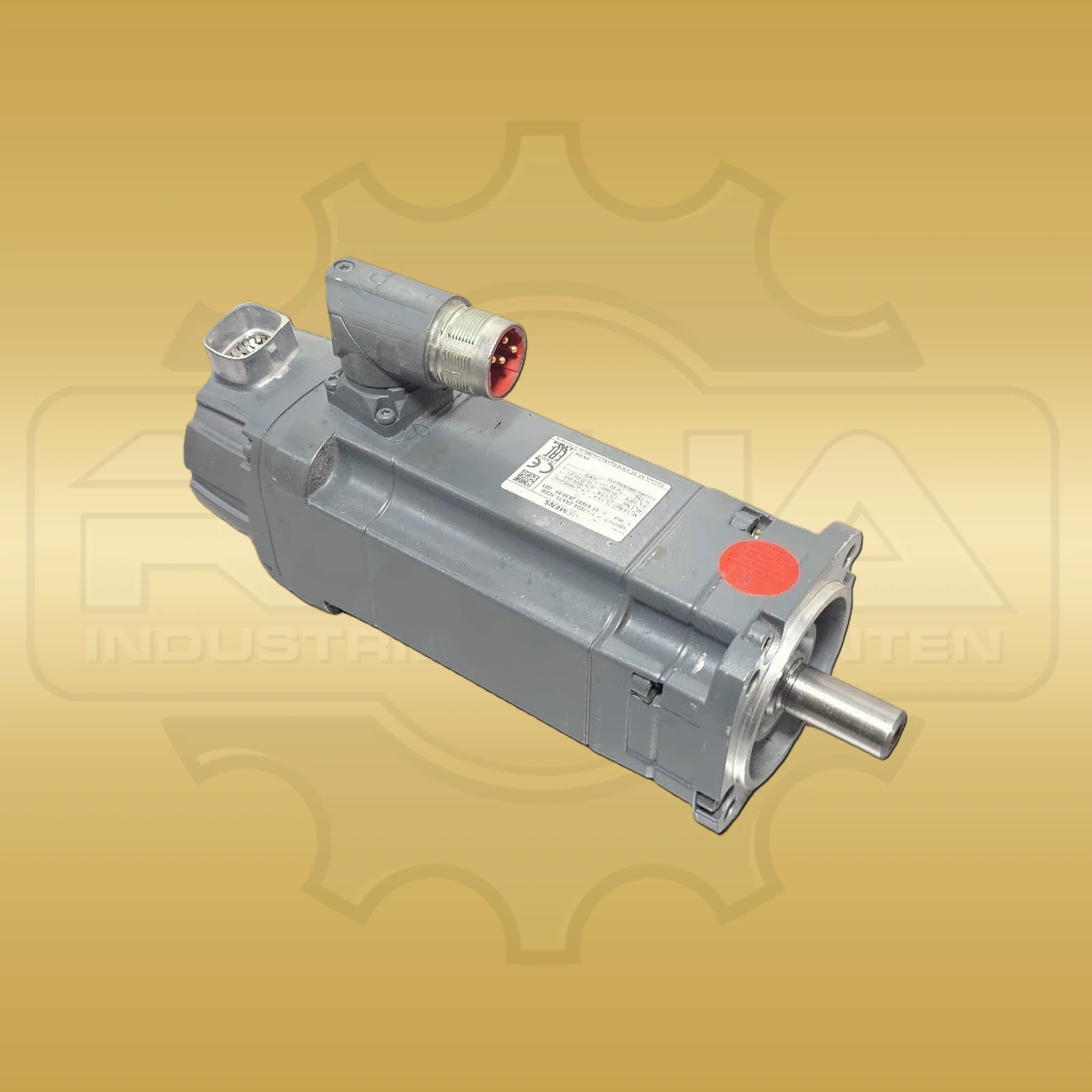

Siemens 1FK7034-2AK71-1CG0 belongs to the compact SIMOTICS S servo motor family. The permanent-magnet synchronous servo motor provides 0.63 kW rated power, 1.6 Nm standstill torque at 100 K and 6000 rpm rated speed. Natural cooling and IM B5 construction with IM V1 and IM V3 mounting positions define the basic mechanical configuration. The complete order number identifies a version without a holding brake. It has a smooth shaft with tolerance N and a rotatable size 1 power connector. Position feedback is provided by an AM24DQI multiturn absolute encoder with 24-bit singleturn and 12-bit multiturn resolution. The encoder interface is DRIVE-CLiQ and protection is IP64. CG0 identifies this encoder and brake configuration of the 1FK7034 motor. Axial outside length is 228.3 mm including the 30 mm shaft. The square motor contour measures 72 mm. With the connector in the upper position, the contour extends 78 mm above the shaft axis and 36 mm below it, producing an overall height of 114 mm. Complete outside dimensions are therefore 228.3 × 72 × 114 mm. Net weight is 3,701 kg. The resulting 228.3 × 72 × 114 mm envelope includes the motor, shaft and upward connector; the complete unit weighs 3,701 kg and uses the AM24DQI feedback system.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | SIMOTICS S 1FK7-CT |
| Manufacturer / order / identification number | 1FK7034-2AK71-1CG0 |
| Device type | Permanent-magnet synchronous servo motor |
| Rated power | 0.63 kW |
| DC-link voltage | 600 V DC |
| Standstill torque | 1.6 Nm at 100 K |
| Rated speed | 6,000 U/min |
| Cooling method | Natural cooling |
| Construction | IM B5; installation positions IM V1 and IM V3 |
| Flange | Size 1 |
| Power connection | Rotatable power connector |
| Encoder | 24-Bit absolute encoder + 12-Bit multiturn |
| Encoder interface | Drive-CLiQ, encoder AM24DQI |
| Shaft | Plain shaft, tolerance N |
| Holding brake | Without holding brake |
| Degree of protection | IP64 |
| Dimensions | 228.3 × 72 × 114 mm (L × W × H; including 30-mm shaft, connector in the illustrated upper position) |
| Weight | 3,701 kg |
