Siemens 1FT5062-1AC71-4AA0
€1,020.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
In frame size 1FT5046, Siemens assigns order number 1FT5046-0AH01-1 to an AC servo motor from the 1FT5 series. The electrical version uses a 210 V DC link; central motor data are 3.7 Nm torque and 4500 rpm. A tachogenerator and shaft-end position encoder provide feedback. The motor has IP64 protection and natural cooling. Construction is IM B5, with IM V1 and IM V3 also listed as mounting positions. Power and signal connections use separate connectors. The complete order number and compact model code 1FT50460AH011 identify the same bound variant. The available shortened identifier does not establish the brake version unambiguously. Weight therefore uses the higher of the two mechanical catalogue values as a clearly marked conservative estimate. Mechanical installation length is 240 mm and the shaft extends by 30 mm, resulting in an overall external length of 270 mm. Flange cross-section is 92 mm, while the connector structure increases total height to 123.5 mm. Complete motor envelope is therefore 270 × 92 × 123.5 mm without connected cables. Shaft height, centering diameter and shaft diameter are 48 mm, 80 mm and 14 mm. The table lists 6.4 kg without and 6.7 kg with a holding brake. Approx. 6.7 kg is used as the conservative handling value.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | 1FT5 |
| Manufacturer / order / identification number | 1FT5046-0AH01-1 |
| DC-link voltage | 210 V DC |
| Torque | 3.7 Nm |
| Thermal rating | 100 K |
| Rated speed | 4500 rpm |
| Cooling | natural cooling |
| Feedback | Tachogenerator and shaft-end position encoder |
| Degree of protection | IP64 |
| Mounting arrangement | IM B5, also IM V1 and IM V3 |
| Connections | Power and signal connectors |
| Model code | 1FT50460AH011 |
| Servo series | AC Servomotor Series 5 |
| Shaft height | 48 mm |
| Centering diameter | 80 mm |
| Shaft diameter | 14 mm |
| Dimensions | 270 × 92 × 123.5 mm (L × W × H; motor envelope including 30-mm shaft extension and connector structure, without cables) |
| Weight | approx. 6.7 kg (conservative; catalogue values 6.4 kg without / 6.7 kg with holding brake) |
Related products
Go to shop

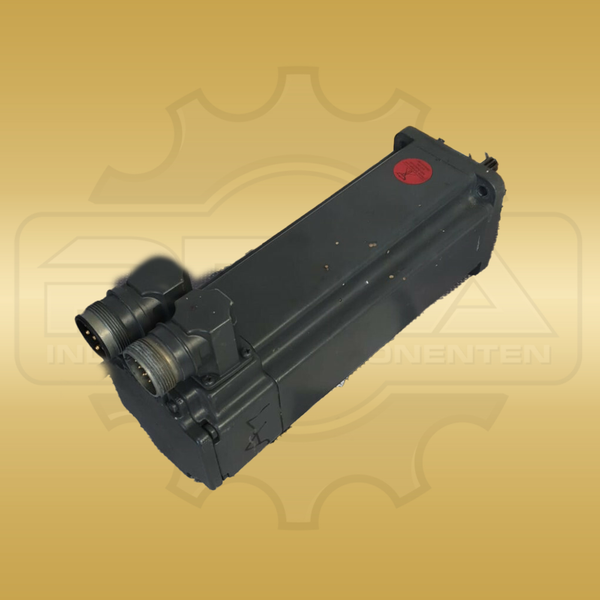

Siemens 1FT5036-1AK71-3AG0
