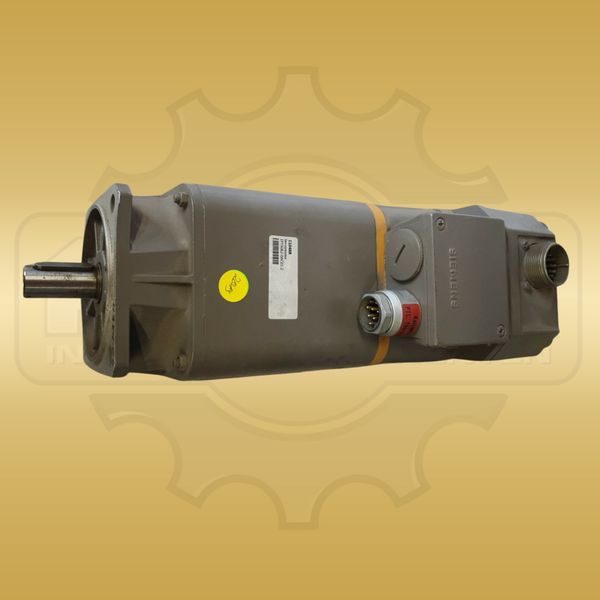

Siemens 1FT5062-0AF71-1-Z
€1,210.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
Siemens 1FT5066-0AF01-2 is a naturally cooled AC servo motor from the 1FT5 product series. The specific version is described for a 210 V DC link. Product documentation states a torque value of 8.0 Nm at 100 K, while rated speed is 3000 U/min. The motor has IP64 protection and is configured as a feed drive. Feedback comprises a tachogenerator and a rotor-position encoder. The electrical version uses a terminal box and a separate signal connector. IM B5 is the documented construction, with IM V1 and IM V3 also listed as mounting positions. Natural cooling, feedback type, connection arrangement and mounting positions characterise this specific 1FT5 configuration. The official Siemens dimension sheet for frame size 1FT5066 states an installation length of 321 mm. The shaft projects by 40 mm, the flange area measures a nominal 115 mm and the connector structure reaches an overall height of 148.5 mm. This results in a motor envelope of 361 × 116 × 148.5 mm. The dimensions describe the motor including shaft and connector structure, but without connected cables. The dimension sheet also specifies a shaft height of 63 mm, a centering diameter of 95 mm and a shaft diameter of 19 mm. The shaft has a keyway according to DIN 6885. These values belong to the illustrated flange and shaft version. The same Siemens dimension sheet states a weight of 10.5 kg for the version without brake. The value previously shown only as approximate is therefore replaced by the documented table value. The complete order number links DC-link voltage, torque, speed, cooling, feedback, connection arrangement, protection and construction to this motor variant.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | 1FT5 |
| Manufacturer / order / identification number | 1FT5066-0AF01-2 |
| Device type | AC servo motor |
| Motor function | Feed drive motor |
| DC-link voltage | 210 V DC |
| Torque | 8.0 Nm at 100 K |
| Rated speed | 3000 U/min |
| Protection rating | IP64 |
| Cooling | Natural cooling |
| Feedback | Tachogenerator and rotor-position encoder |
| Mounting arrangement | IM B5, also IM V1 and IM V3 |
| Connection type | Terminal box and signal connector |
| Shaft height | 63 mm |
| Centering diameter | 95 mm |
| Shaft diameter | 19 mm |
| Dimensions | 361 × 116 × 148.5 mm (L × W × H; motor envelope incl. 40-mm shaft and connector structure; installation length 321 mm) |
| Weight | 10.5 kg (without brake) |
Related products
Go to shop
Siemens 1FT5062-1AC71-4AA0
€1,020.00
Siemens 1FT6044-4AK71-4AB6
€1,500.00
Siemens 1FT6034-4AK71-4EG1
€2,010.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the dimensions and weight of Siemens 1FT5066-0AF01-2?
The motor envelope is 361 × 116 × 148.5 mm including a 40 mm shaft extension at a 321 mm installation length. Documented weight without brake is 10.5 kg.
Which feedback and connection arrangement are documented?
A tachogenerator and rotor-position encoder are documented, together with a terminal box and separate signal connector. Construction is IM B5, with IM V1 and IM V3 also listed.
