Siemens 6AV6646-1AA22-0AX0
€670.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
Siemens 6AV7244-6EA00-0MT1 has LED backlighting and processes gestures with up to five fingers. DVI-I, DisplayPort, four USB-3.0 ports and two RS-232 interfaces are listed. The front is rated IP65 and the enclosure IP20; weight is approximately 7.2 kg. Siemens 6AV7244-6EA00-0MT1 belongs to the SIMATIC IPC477D range and combines an industrial PC, display and touch operation in a compact built-in unit. This version is identified as a 22-inch multi-touch device. For this display class, Siemens specifies Full HD resolution of 1,920 × 1,080 pixels, an active display area of 475 × 267 mm and up to 16.7 million colors. The LED backlight can be dimmed across a range from 0 to 99. For installation, the manual specifies IP65 at the front and IP20 for the enclosure. The capacitive 22-inch version weighs approximately 7.2 kg without expansions. The device family includes DVI-I and DisplayPort for external displays, four rear USB-3.0 ports and two serial RS-232 interfaces. Depending on the processor version, maximum power consumption for the 22-inch model without expansions is 67 to 74 W. The complete Siemens order number 6AV7244-6EA00-0MT1 identifies this IPC477D device. The Siemens dimension drawing shows a device front 560 mm wide and 380 mm high. Overall depth is 81.6 mm, including a documented device depth of 75.5 mm behind the front for the version without expansion cards and without a DVD drive. The associated panel cutout is specified as 542 × 362 mm.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | SIMATIC IPC477D |
| Manufacturer / order / identification number | 6AV7244-6EA00-0MT1 |
| Device type | Embedded Panel PC |
| Construction | Built-in unit |
| Display diagonal | 22 inches |
| Touch technology | Capacitive multi-touchscreen |
| Display resolution | 1,920 × 1,080 pixels |
| Active display area | 475 × 267 mm |
| Colour display | Up to 16.7 million colours |
| Multi-touch operation | Gestures with up to five fingers |
| Backlighting | LED |
| Brightness control | Adjustment range 0 to 99 |
| Graphics interfaces | DVI-I and DisplayPort |
| USB interfaces | 4 × USB 3.0 on the rear of the device |
| Serial interfaces | 2 × RS-232, 9-pin |
| Degree of protection, front | IP65 |
| Degree of protection, enclosure | IP20 |
| Dimensions | 560 × 380 × 81.6 mm (W × H × overall depth; 75.5 mm installation depth without expansions) |
| Weight | approx. 7.2 kg without expansions |
Related products
Go to shop

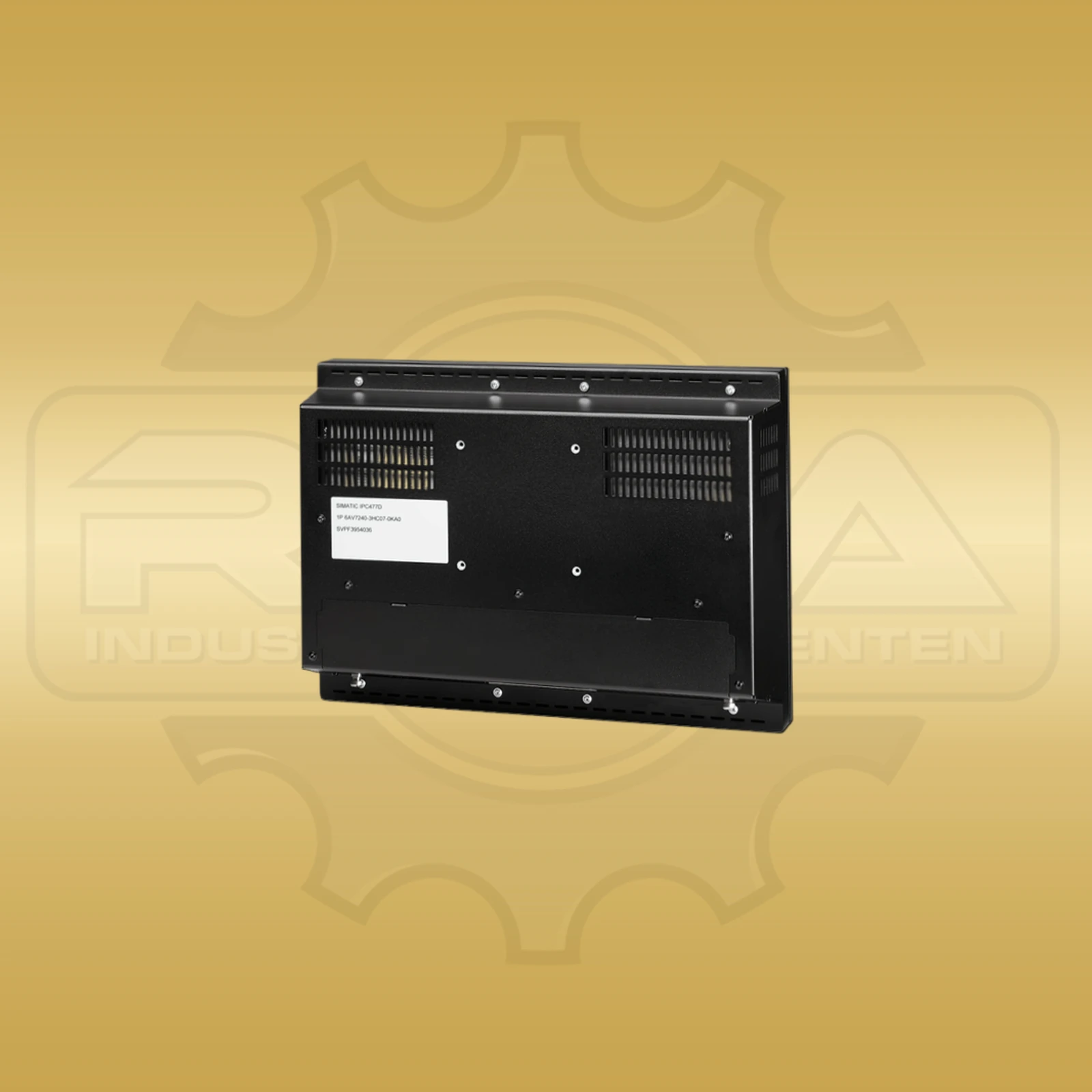

Siemens 6AV7675-4RE00-0AA0
Price on request
Siemens 6ES7414-3XM05-0AB0
€1,460.00
Siemens 6ES7157-0AC81-0XA0
€540.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the external dimensions of the 22-inch version?
External dimensions are 560 × 380 × 81.6 mm; documented installation depth without expansions is 75.5 mm.
What panel cutout is documented?
Siemens specifies a 542 × 362 mm panel cutout for the 22-inch version.
