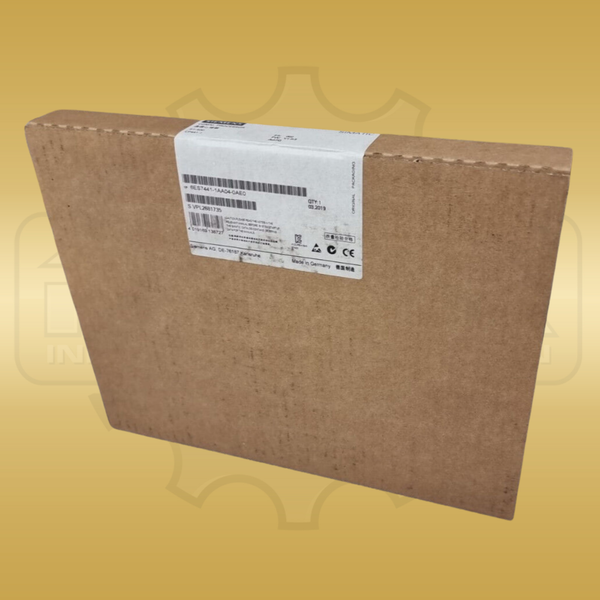

Siemens 6ES7441-1AA04-0AE0
€180.00
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description
Siemens 6ES7 450-1AP01-0AE0 is an FM 450-1 function module from the SIMATIC-S7-400 family. It is used when the S7-400 station must provide high-speed counting, encoder evaluation or direction-dependent pulse acquisition and the installed module must be replaced by the exact Siemens order number 6ES7 450-1AP01-0AE0. The Siemens data sheet identifies this version as FM 450-1 with two counting channels and a configuration package. Relevant electrical data include the 24-V-DC auxiliary and load supplies, current draw of 300 mA from the 5-V backplane bus, short-circuit-proof 5-V and 24-V encoder supplies rated at up to 300 mA each, and typical power dissipation of 6 W. The module provides six digital inputs, four digital outputs and two counter inputs. Siemens specifies RS 422 and a maximum frequency of 500 kHz for the 5-V counter inputs; the 24-V counter inputs support up to 200 kHz. Compatible devices include incremental encoders with symmetrical or asymmetrical signals, 24-V proximity switches and 24-V direction signals. A diagnostic interrupt, hardware interrupt, internal and external fault LEDs, and status indicators for inputs and outputs assist service work. With dimensions of 25 x 290 x 210 mm, a weight of approx. 650 g and a required 48-pin front connector, the unit can be distinguished clearly from standard S7-400 digital modules. For retrofit and repair, compare not only the S7-400 system family but also the counting channels, encoder supply, input voltages, output current, diagnostic behavior and front connector with the installed application. These details allow the S7-400 module to be identified by order number, channel type and connection data for maintenance inventories and planned modernization.
Specifications
| Manufacturer | Siemens |
|---|---|
| Product series | SIMATIC S7-400 / FM 450-1 |
| Manufacturer/Order/Identification number | 6ES7 450-1AP01-0AE0 |
| Device type | FM 450-1 counting function module |
| Counting channels | 2 channels, 32 bit or +/-31 bit |
| Supply | Auxiliary voltage 1L+ and load voltage 2L+, both 24 V DC |
| Current consumption | Max. 50 mA from 1L+, max. 60 ?A from 2L+, max. 300 mA from the 5 V DC backplane bus |
| 5 V encoder supply | 5.2 V +/-2 %, short-circuit proof, max. 300 mA |
| 24-V encoder supply | 24-V, short-circuit proof, max. 300 mA |
| Digital inputs | 6 inputs for gate start, gate stop and counter preset |
| Digital outputs | 4 short-circuit-proof outputs, 0.5 A rated current |
| 5 V counter input | RS 422, 220 ohm terminating resistor, max. 500 kHz |
| 24-V counter input | Signal 0: -30 to +5 V, signal 1: +11 to +30 V, max. 200 kHz |
| Encoder types | Symmetrical/asymmetrical incremental encoders, 24-V proximity switch and 24 V direction signal |
| Diagnostics | Diagnostic interrupt, hardware interrupt, INTF and EXTF LEDs |
| Front connector | 1 x 48-pin connector required |
| Dimensions | 25 x 290 x 210 mm |
| Weight | Approx. 650 g |
Related products
Go to shop
Siemens 6ES7455-1VS00-0AE0 SIMATIC S7-400 FM 455-S
€3,020.00
Siemens 6ES7 431-1KF20-0AB0
Price on request
Siemens 6ES7 432-1HF00-0AB0
€100.00
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What is Siemens 6ES7 450-1AP01-0AE0 used for?
The FM 450-1 module provides two counting channels for counting functions in SIMATIC S7-400 systems.
Which encoders can the FM 450-1 evaluate?
Siemens specifies incremental encoders with symmetrical or asymmetrical signals, 24 V proximity switches and 24 V direction signals.
