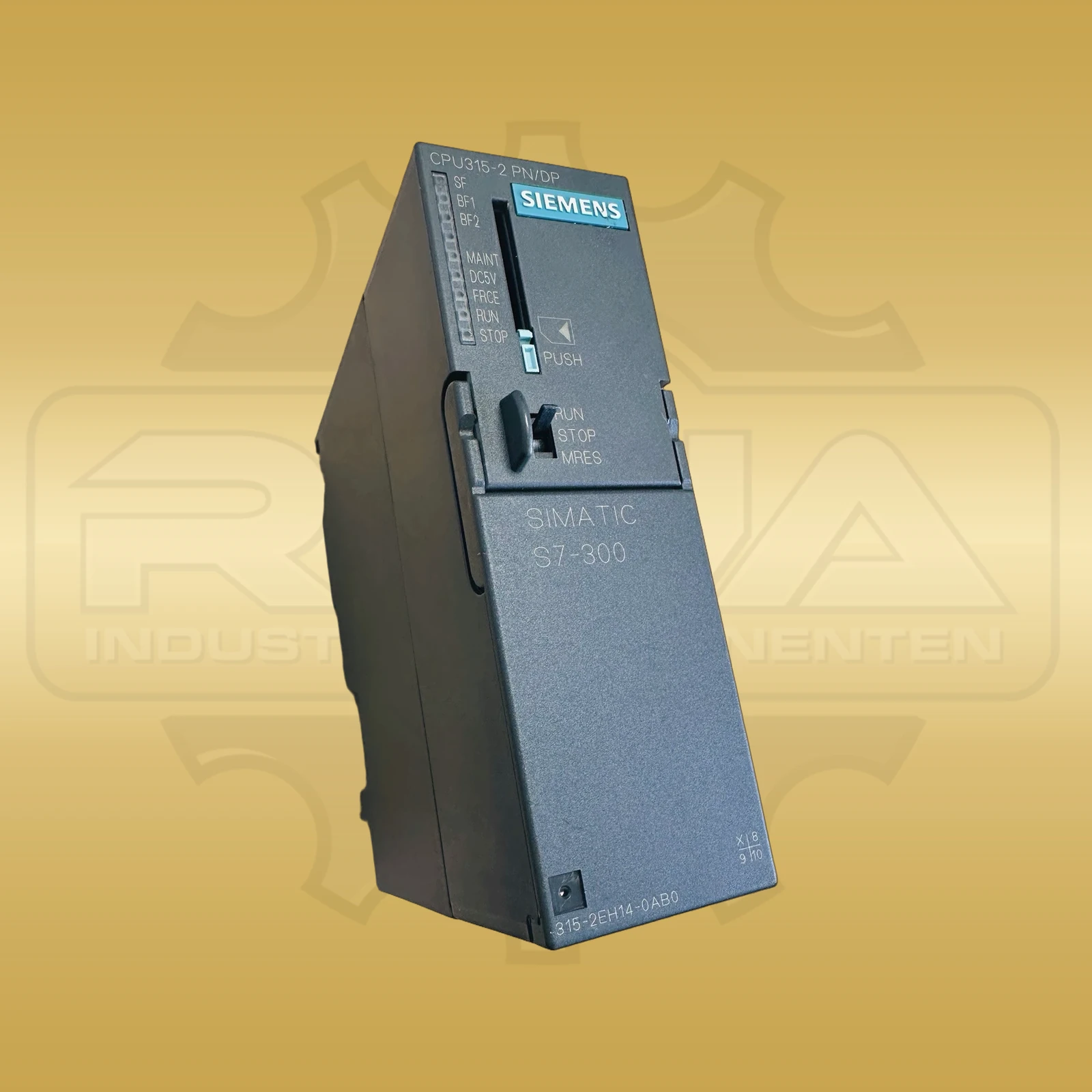

Siemens 6ES7 315-2EH14-0AB0
€820.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
Documented identifiers and values: 6GK7; 343-1CX10-0XE0; 343-1; RJ45; 10; 100; 200; RFC1006; S7; 24 V; 5 V; S7-300; 0.16 A; 0.2 A; 5.8 W; IP20; 40; 125; 120 mm; 0.22 kg; 60 °C; 40 °C. Two RJ45 ports with a transmission rate of 10–100 Mbit/s and an integrated 2-port ERTEC 200 switch are available for this purpose. Its protection class is IP20. With a width of 40 mm, height of 125 mm, depth of 120 mm and net weight of 0.22 kg, the unit is a compact single-width S7-300 module. The complete order number is the primary identifier because other CP-343-1 versions can provide different communication functions and connection capacities despite a similar enclosure. Additional identification and configuration data include the hardware product version, firmware version, STEP-7 configuration, IP address, subnet, connection resources and PROFINET device name. Maximum external current consumption is 0.2 A, and power loss is 5.8 W. It connects controllers from the SIMATIC S7-300 and C7-300 ranges to Industrial Ethernet and PROFINET. The documented product family is SIMATIC NET for S7-300 and C7-300 systems. Installation and commissioning may only be performed by qualified personnel; the configuration and network parameters must be backed up before module replacement.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product range | SIMATIC NET CP 343-1 Lean |
| Manufacturer/order/identification number | 6GK7 343-1CX10-0XE0 |
| Device type | Communications processor |
| Target system | SIMATIC S7-300 / C7-300 |
| Industrial Ethernet interfaces | 2 × RJ45 |
| Transmission rate | 10–100 Mbit/s |
| Integrated switch | 2-port ERTEC 200 switch |
| External supply voltage | 24 V DC |
| Backplane-bus supply | 5 V DC |
| Typical external current consumption | 0.16 A |
| Maximum external current consumption | 0.2 A |
| Typical backplane-bus current consumption | 0.2 A |
| Power loss | 5.8 W |
| Protection class | IP20 |
| Horizontal operating temperature | 0–60 °C |
| Vertical operating temperature | 0–40 °C |
| Dimensions | 40 × 125 × 120 mm |
| Weight | 0.22 kg |
Related products
Go to shop

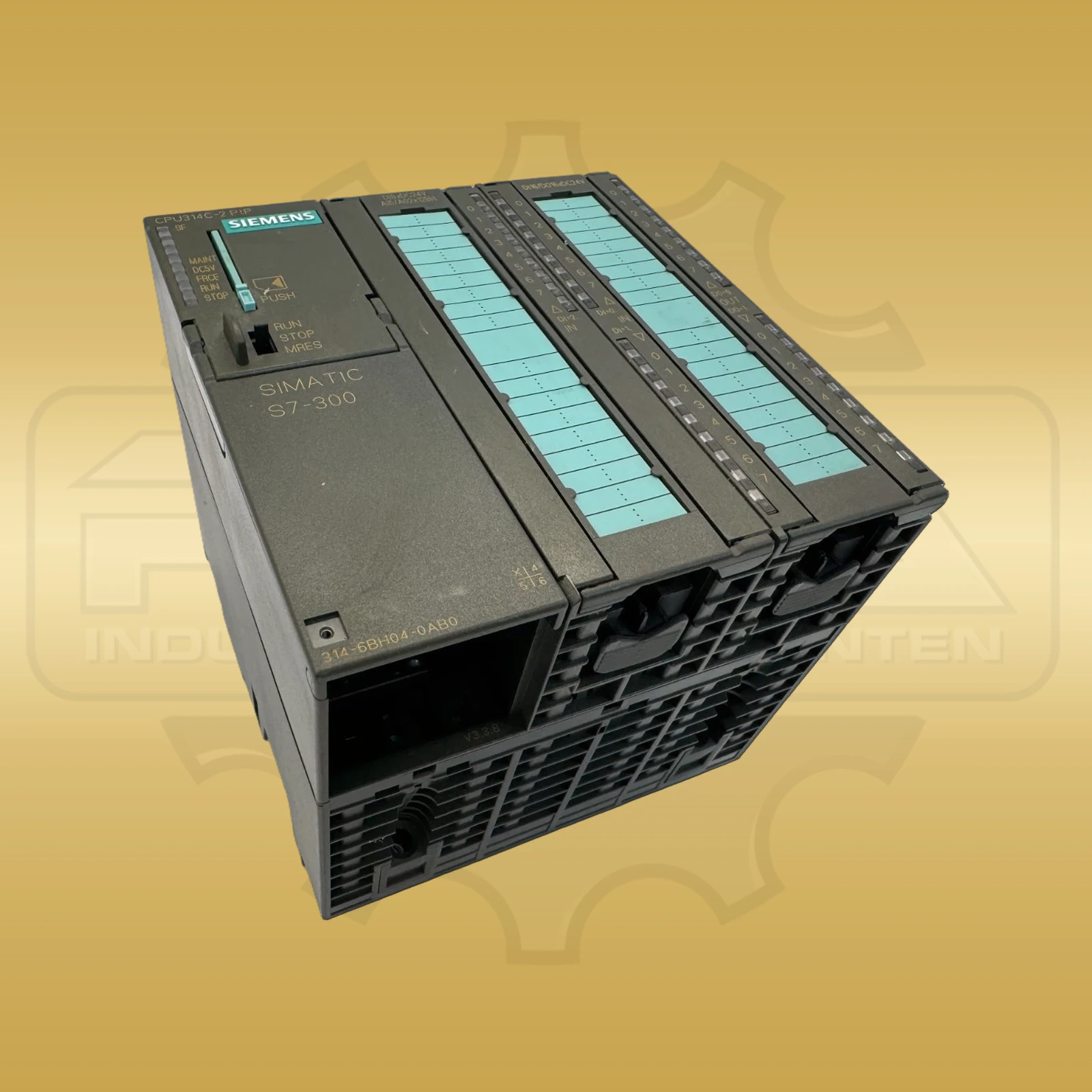

Siemens 6ES7 314-6BH04-0AB0
€3,070.00
Siemens 6ES7317-6FF04-0AB0
€2,090.00
Siemens 6GK5101-1BC00-2AA3
€570.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What is the function of Siemens 6GK7 343-1CX10-0XE0?
CP 343-1 Lean connects SIMATIC S7-300 or C7-300 to Industrial Ethernet through two RJ45 ports and can operate as a PROFINET IO Device.
Which data uniquely identify CP 343-1 Lean?
The relevant identifiers are the order number, hardware version, firmware, STEP-7 configuration, IP address, subnet, connection resources and PROFINET device name.
What applies if an item develops a defect within 14 days?
For the condition categories “Used, removed from an installation” and “New, old stock”, the contractual 14-day right of return in the event of a defect applies. The defect must occur within 14 calendar days after delivery and be reported in text form within the same period.
In particular, the REHA tamper-evident seal must remain fully intact and our RMA approval is required before return. In an accepted case, we decide between replacement and refund. Details in Section 11 of the Terms.
Which shipping methods and delivery times are available?
The shipping method, shipping cost and estimated delivery time are confirmed for the specific order. Depending on the item, destination and urgency, we can check parcel, express or freight shipping as well as collection.
A delivery date is binding only if we expressly confirm it as binding.
Which payment terms apply?
The payment terms stated in the checkout or order confirmation apply. Depending on the order and customer, payment is made in advance or against invoice.
International deliveries and deliveries to new customers are generally made against advance payment unless we expressly confirm another payment arrangement.
Can I return an item ordered incorrectly or found incompatible?
No. There is no general B2B right of return, exchange, cancellation or withdrawal. Incorrect or duplicate orders and a lack of suitability or compatibility with the customer’s installation are not covered by the contractual 14-day right of return in the event of a defect. Details in Section 12 of the Terms.
Can I request individual pricing for several items?
You may request an individual quotation for several items or larger quantities. We then check availability and pricing for the specific requirement; there is no entitlement to a quantity discount. Open the quick enquiry.
Do you also purchase industrial spare parts?
Yes. You can offer us automation and drive components for purchase. Please provide complete type numbers, quantities, condition details and photographs where possible.
After review, we will tell you whether a purchase is possible and on which terms. Learn more about selling industrial stock.
