Siemens 6GK7443-1EX30-0XE0
€1,330.00
Shipping information
Do you require an expedited shipping option for this item?
Please contact us!
Product description
The Siemens CP 443-1 Advanced 6GK7443-1GX20-0XE0 receives its 5-V-DC supply through the S7-400 backplane bus. Typical current consumption is 1.8 A and power loss is 7.25 W. Designed as a single-width compact module, the communication processor connects a SIMATIC S7-400-CPU to Industrial Ethernet. Its 25 × 290 × 210 mm format and net weight of 0.7 kg are particularly relevant when checking the available rack space. Two separate Ethernet interfaces are available on the front. One RJ45 socket transmits at 10, 100 or 1.000 Mbit/s. The second interface consists of four switched RJ45 ports for 10 or 100 Mbit/s. This configuration combines a Gigabit connection and an integrated PROFINET switch in one module. The C-PLUG slot accommodates the specified removable media. In PROFINET operation, the processor functions as an IO controller with RT and IRT. It manages up to 128 PROFINET IO devices in total, including up to 32 IRT devices; four external PROFINET IO lines are specified per rack. A maximum of 4 KiB of user data is available for each input and output area. Open communication includes TCP/IP, ISO and UDP. Up to 64 connections are possible through SEND/RECEIVE blocks, while S7 communication supports up to 128 connections. The flash file area provides 30 MiB and the RAM area 16 MiB. Additional functions include SNMP v1, DCP, LLDP, NTP, web diagnostics, an FTP client and an FTP server. Ring redundancy and MRP are provided. The permissible operating temperature range is 0 to 60 °C, and the degree of protection is IP20. The complete order number, port arrangement and PROFINET capacities are the key references for an unambiguous technical assignment.

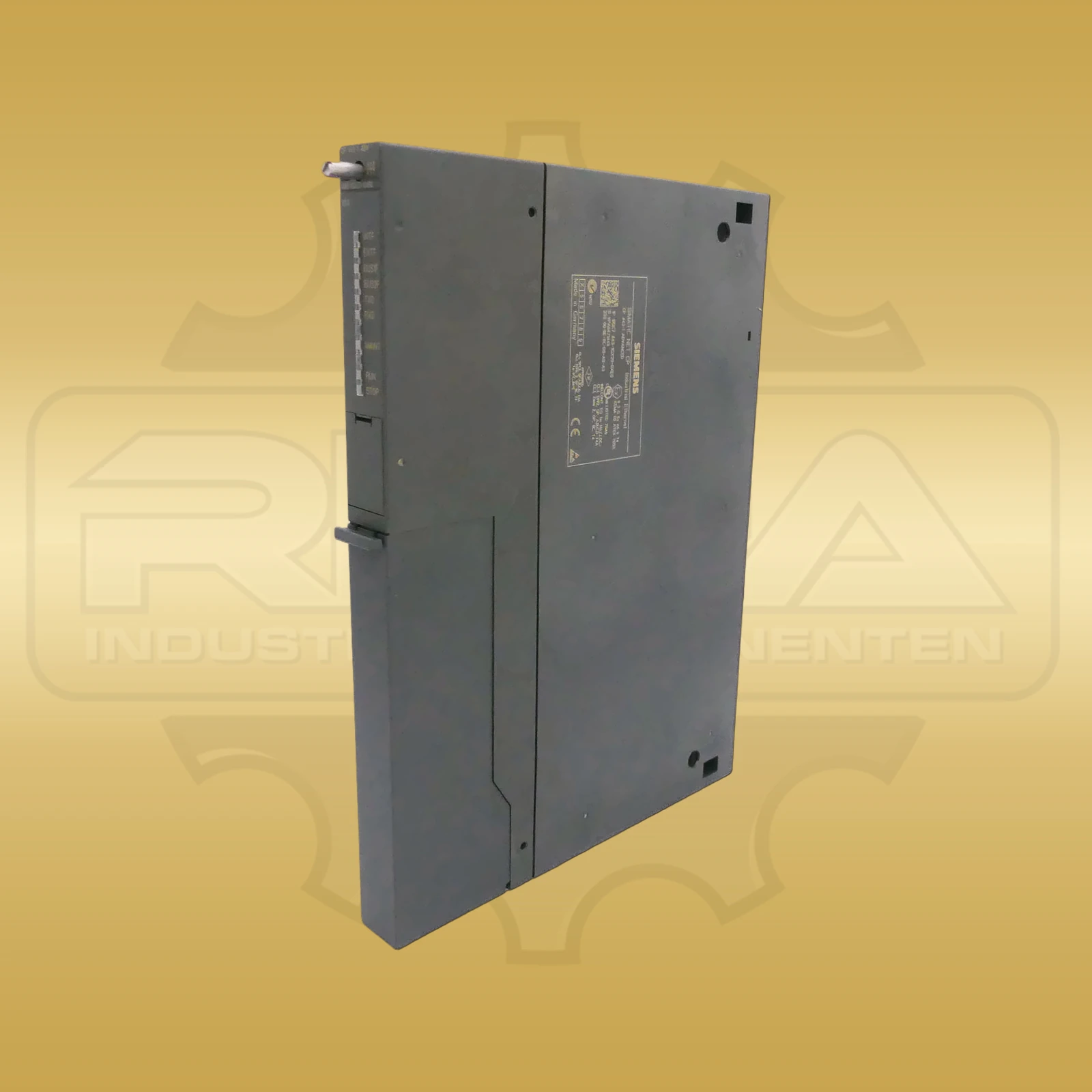

Example image – The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
| Manufacturer | Siemens |
|---|---|
| Product range | SIMATIC NET CP 443-1 Advanced |
| Manufacturer/order/identification number | 6GK7443-1GX20-0XE0 |
| Device type | Industrial Ethernet communication processor |
| System assignment | SIMATIC S7-400 |
| PROFINET function | IO controller with RT and IRT |
| PROFINET interface | 4 × RJ45, switched, 10/100 Mbit/s |
| Gigabit interface | 1 × RJ45, 10/100/1.000 Mbit/s |
| PROFINET IO devices | maximum 128, including maximum 32 IRT devices |
| Open communication | TCP/IP, ISO and UDP; maximum 64 SEND/RECEIVE connections |
| S7 communication | maximum 128 connections |
| Memory | 30 MiB flash file system and 16 MiB RAM |
| Removable media | C-PLUG slot provided |
| Power supply | 5 V DC through the backplane bus |
| Current consumption | typically 1.8 A at 5 V DC |
| Power loss | 7.25 W |
| Degree of protection | IP20 |
| Operating temperature | 0–60 °C |
| Dimensions | 25 × 290 × 210 mm (W × H × D) |
| Weight | 0.7 kg net |
Related products
Go to shop
Siemens 6AG2543-6WX00-4XE0
Price on request
Siemens 6GK5116-0BA00-2AC2
Price on request
Siemens 6GK7443-5DX04-0XE0
€90.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
Which Ethernet connections does the Siemens CP 443-1 Advanced 6GK7443-1GX20-0XE0 provide?
The module provides four switched RJ45 ports at 10/100 Mbit/s and a separate RJ45 interface at 10/100/1.000 Mbit/s.
How many PROFINET IO devices does 6GK7443-1GX20-0XE0 manage?
As a PROFINET IO controller, the module manages up to 128 IO devices in total, including up to 32 IRT devices.
