Siemens 6SN1123-1AA00-0BA2
€830.00
Shipping information
Do you require an expedited shipping option for this item?
Please contact us!
Product description
Siemens 6SN1123-1AA00-0CA2 is a one-axis power module in the SIMODRIVE-611 series. The complete order number identifies the 50-A version with internal cooling. The module supplies energy to the installed control unit and the connected motor; the specific control unit is added according to the drive task. For induction-motor operation, Siemens documents 24 A rated current, 32 A current in the S6-40 % duty cycle, and 32 A peak current at a 3.2 kHz inverter pulse frequency. With synchronous motors, rated current is 18 A and peak current is 36 A; the associated pulse frequency is 4 kHz. The transistor limit current is specified as 50 A. Minimum motor current is 3.6 A. For a regulated DC link, the configuration manual specifies 600 or 625 V DC. Power-module efficiency is 0.98. In induction-motor operation, Siemens lists 260 W total power loss for this version, with 89 W stated as the internal portion for internal cooling. The integrated fan has a maximum unobstructed volumetric air flow of 29 m³/h. The power module is supplied through the DC-link busbars and grounded through the PE connection screws. The motor connection for this size uses connectors. Module width is 50 mm. Siemens specifies a standard height of 480 mm and a depth of 288 mm for internally cooled SIMODRIVE-611 modules, excluding connectors and optional attached accessories. The tabulated weight including packaging is approximately 6.1 kg. Complete order number, control unit, motor type, current demand, DC-link voltage, and cooling concept are the defining reference points for replacement and engineering.

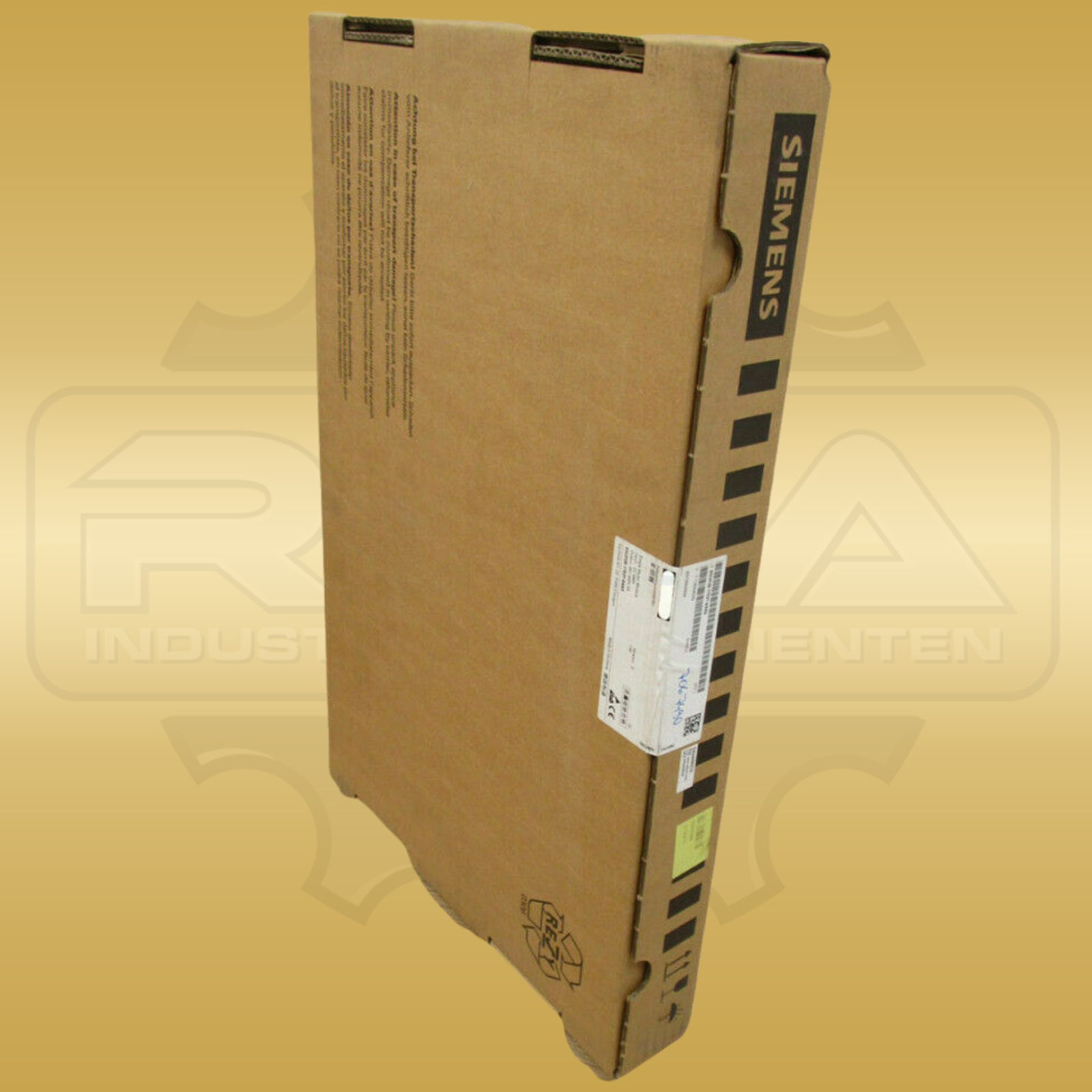

Example image – The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
| Manufacturer | Siemens |
|---|---|
| Product series | SIMODRIVE 611 |
| Manufacturer/order/identification number | 6SN1123-1AA00-0CA2 |
| Device type | One-axis power module |
| Current class | 50 A |
| Cooling type | Internal cooling with fan |
| Induction-motor rated current | 24 Aeff |
| Induction-motor S6-40 % current | 32 Aeff |
| Induction-motor peak current | 32 Aeff |
| Synchronous-motor rated current | 18 Aeff |
| Synchronous-motor peak current | 36 Aeff |
| Inverter pulse frequency | 3.2 kHz induction / 4 kHz synchronous |
| Transistor limit current | 50 A |
| Minimum motor current | 3.6 A |
| Regulated DC-link voltage | 600 V or 625 V DC |
| Efficiency | 0.98 |
| Total power loss | 260 W in induction-motor operation |
| Fan air flow | max. 29 m³/h |
| Dimensions | 50 × 480 × 288 mm (W × H × D) |
| Weight | approx. 6.1 kg (incl. packaging) |
Related products
Go to shop
Siemens 6SN1123-1AA00-0DA2
€280.00
Siemens 1FK6040-6AK71-1EG0
€1,680.00
Siemens 1FK6060-6AF71-1TA0
Price on request
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
Which current ratings does Siemens 6SN1123-1AA00-0CA2 provide?
Siemens specifies 24 A rated and 32 A peak current for induction motors, and 18 A rated and 36 A peak current for synchronous motors.
How is the SIMODRIVE 611 power module cooled?
Version 6SN1123-1AA00-0CA2 uses internal cooling with a fan; maximum unobstructed volumetric air flow is 29 m³/h.
