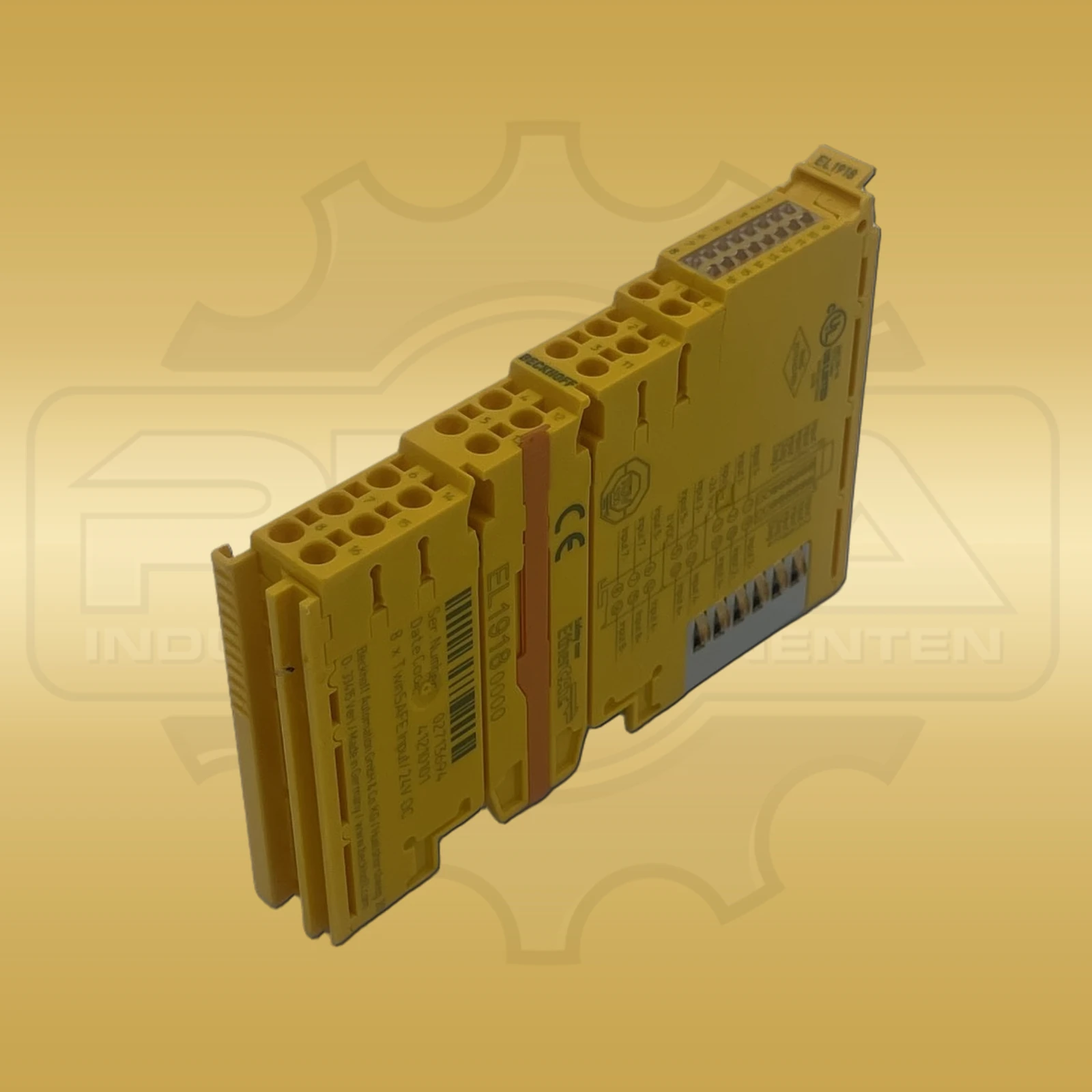

Beckhoff Automation EL1918
Price on request
Shipping information
Do you require an expedited shipping option for this item?
Please contact us!
Product description

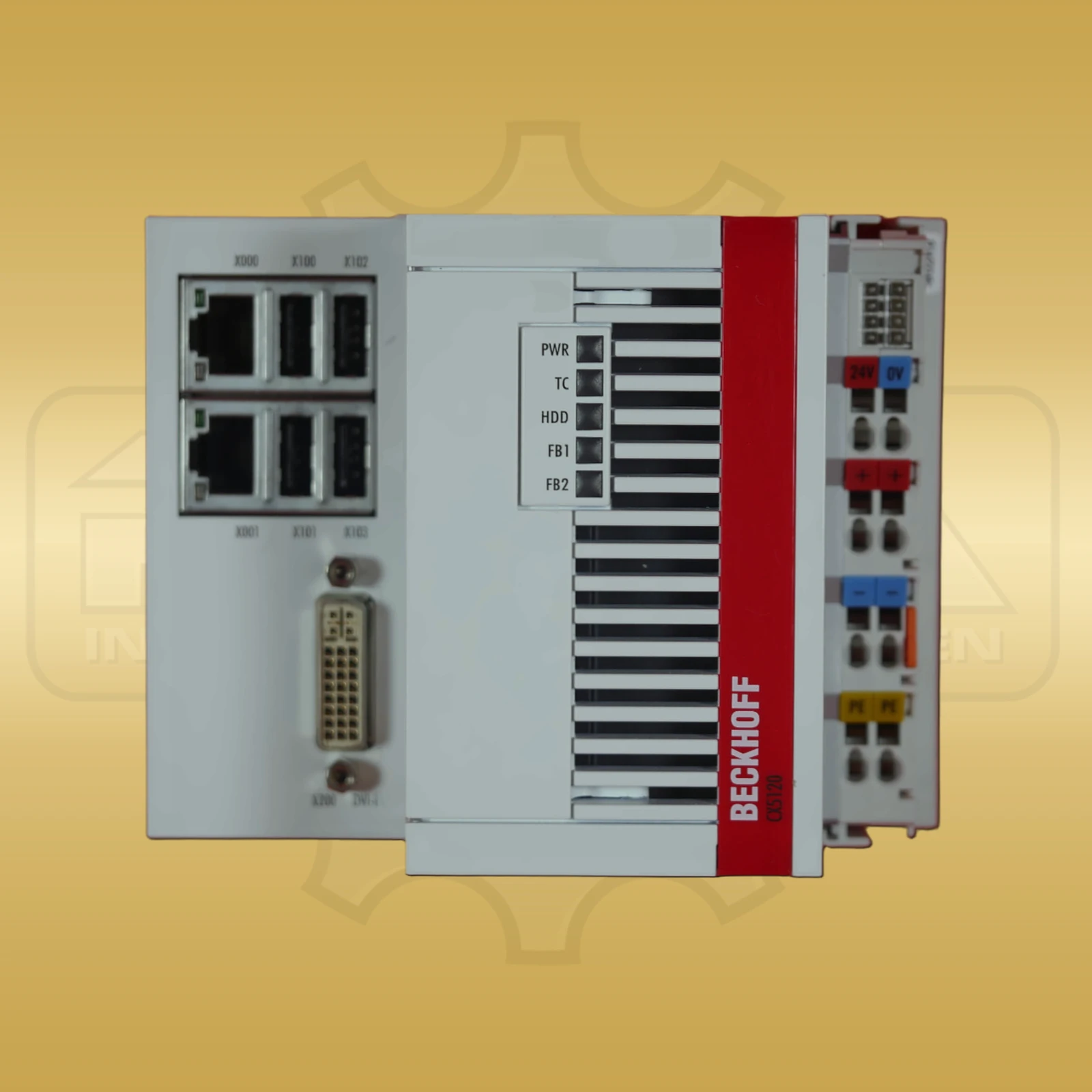

Within the CX5100 range, CX5120-0155 denotes the version with Windows 10 IoT Enterprise 2016 LTSB in 64 Bit and the preinstalled TwinCAT-3 runtime XAR, without included TwinCAT licenses. An Intel Atom E3815 with one core and 1.46 GHz serves as the processing unit; the permanently installed main memory comprises 2 GB DDR3-RAM. Slots for one CFast card and one microSD card are available for flash media, although the cards are not part of the CPU module. Two independent RJ45 interfaces transmit at 10/100/1000 MBit/s. Four USB-2.0 connections, one DVI-I interface and one slot for an optional interface are also present. The I/O level automatically recognizes E-bus or K-bus terminals. An integrated 1-second UPS writes up to 1 MB to the CFast card. The CX5120 uses passive cooling and has an internal battery-backed clock. Five diagnostic indicators cover power, TwinCAT status, flash access and two bus status signals. The supply voltage is 24 V DC with −15 % to +20 %. A current of 2 A is available for the E-bus or K-bus. Maximum power consumption is 11 W and 18 W while charging the UPS. The housing has IP20, measures 122 × 100 × 92 mm and weighs approximately 975 g. The operating temperature range is −25 to +60 °C.
Example image – The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
| Manufacturer | Beckhoff Automation |
|---|---|
| Product range | CX5100 Embedded PCs |
| Manufacturer/order/identification number | CX5120-0155 |
| Device type | Embedded PC / CPU module |
| Processor | Intel Atom E3815, 1.46 GHz |
| Number of cores | 1 |
| Main memory | 2 GB DDR3-RAM, not expandable |
| Flash memory | Slots for CFast and microSD cards |
| Operating system | Windows 10 IoT Enterprise 2016 LTSB, 64 Bit |
| Control software | TwinCAT-3 runtime (XAR), no licenses included |
| Interfaces | 2 × RJ45 Gigabit Ethernet, 1 × DVI-I, 4 × USB 2.0, 1 × optional interface |
| I/O connection | E-bus or K-bus, automatic recognition |
| Power supply | 24 V DC (−15 % / +20 %) |
| E-bus / K-bus current supply | 2 A |
| Maximum power consumption | 11 W; 18 W while charging the UPS |
| Cooling | passive |
| 1-second UPS | integrated, 1 MB on CFast card |
| Protection rating | IP20 |
| Dimensions | 122 × 100 × 92 mm (W × H × D) |
| Weight | approx. 975 g |
Related products
Go to shop

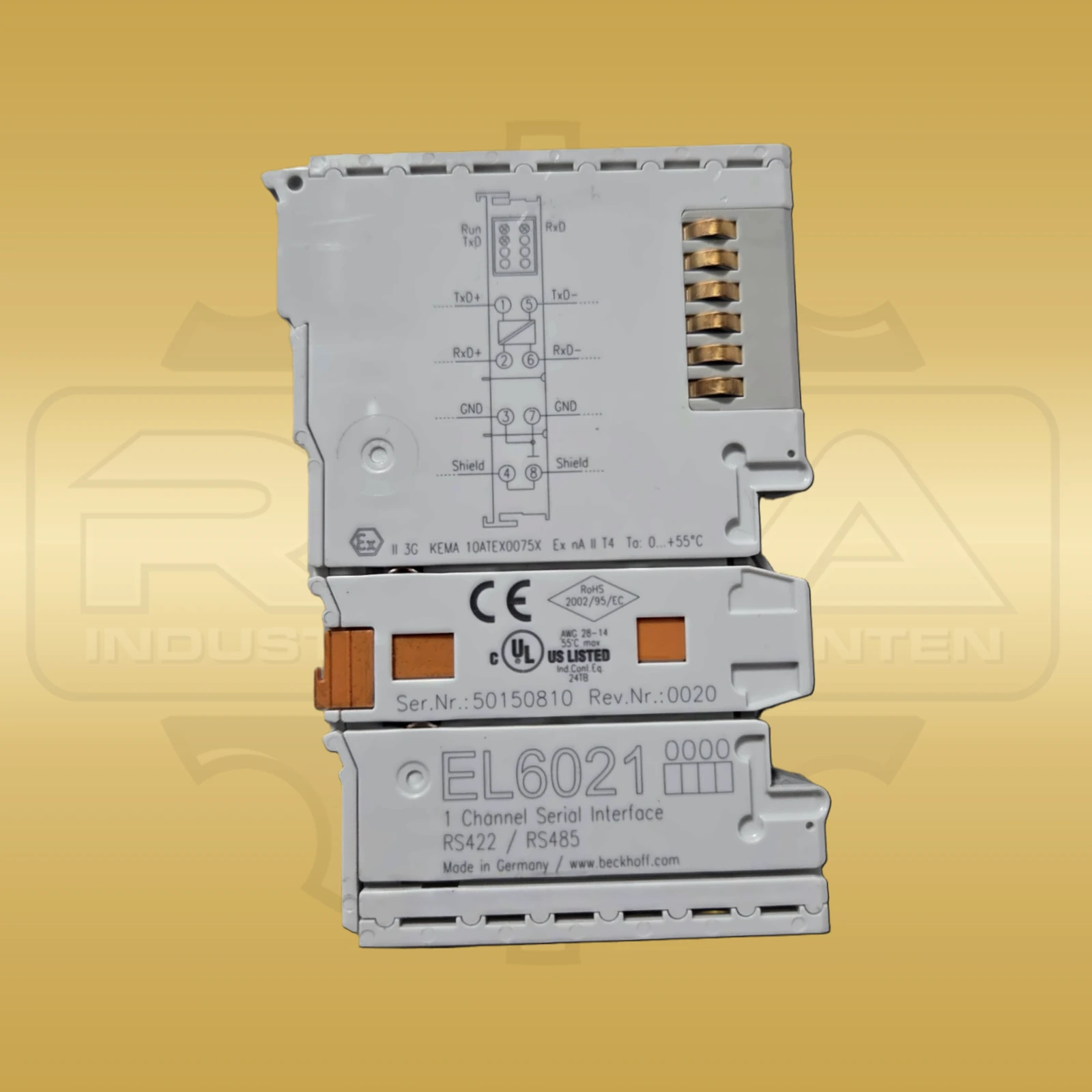

Beckhoff Automation EL6021
Price on request
ABB 2TLA010026R0000
Price on request

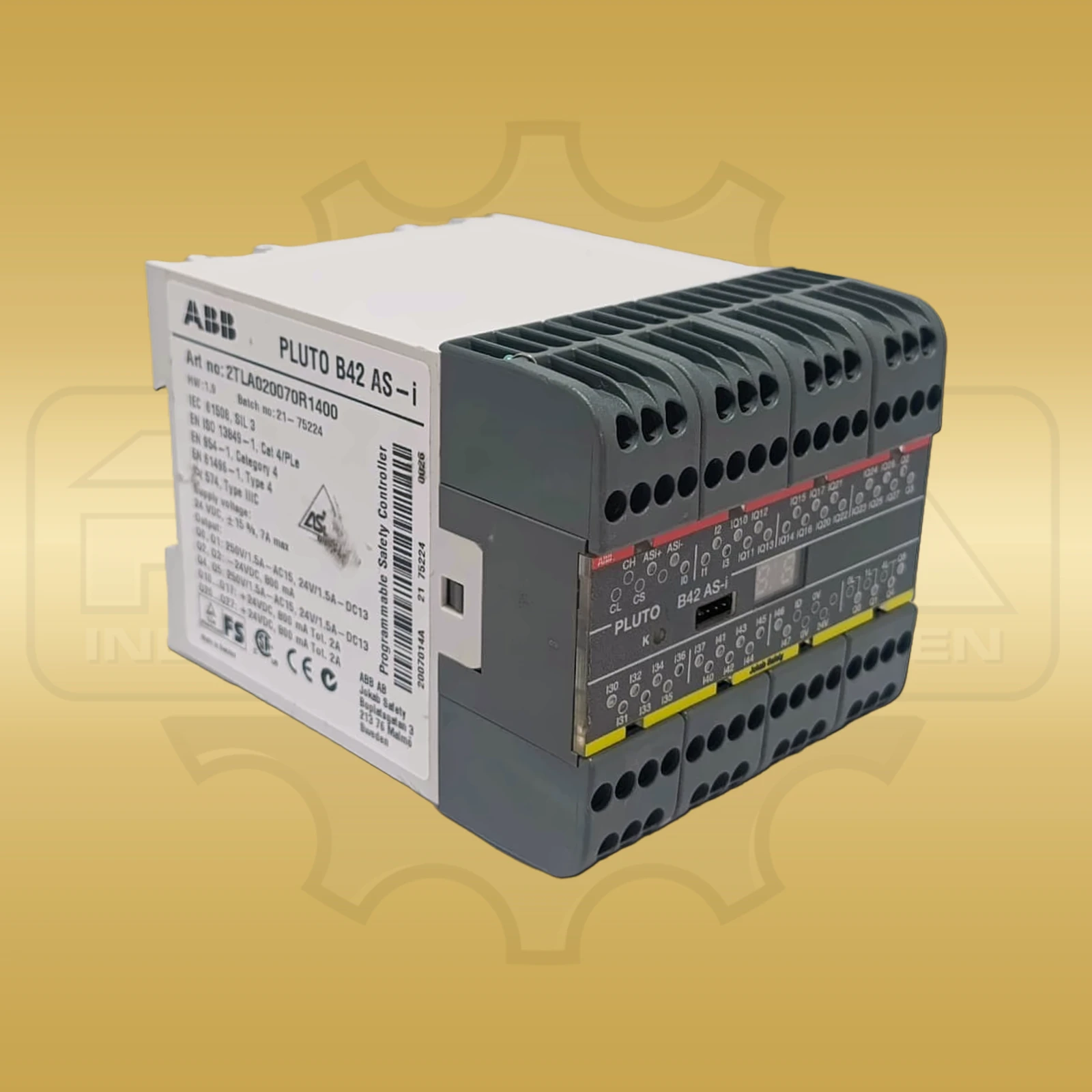

ABB 2TLA020070R1400
Price on request
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
Which software version does the Beckhoff Automation CX5120-0155 use?
The CX5120-0155 version includes Windows 10 IoT Enterprise 2016 LTSB in 64 Bit and the TwinCAT-3 runtime XAR; TwinCAT licenses are not included.
Which standard interfaces are present on the CX5120-0155?
Two RJ45 Gigabit Ethernet interfaces, four USB-2.0 connections, one DVI-I interface and one slot for an optional interface are present.
