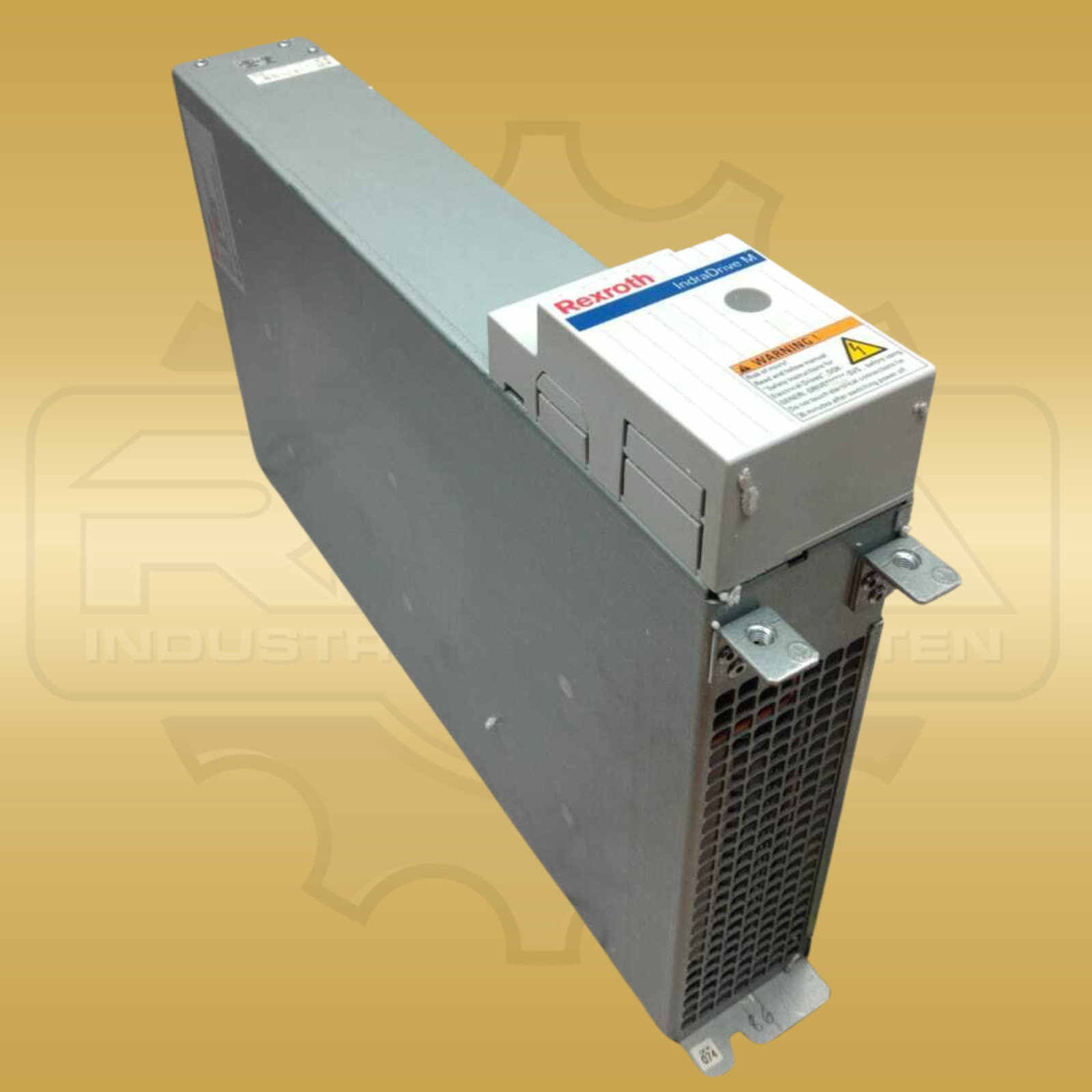

Bosch Rexroth HLC01.1D-05M0-A-007-NNNN
€100.00
excl. VAT
Product condition:
Used, removed from an installation
The item comes from dismantled equipment. We have not carried out an electrical inspection or a comprehensive operational check. Signs of age, use, installation or removal may be present. 14-day right of return in the event of a defect. See Terms and Conditions
- In stock · Ships in approx. 1–2 business days · Express shipping on request
- Urgent? Faster options such as direct or express shipping are often possible. Please state your required date when you request a quote or order.
Do you have any questions?
Personal service
We are happy to help with processing, shipping or individual quotations. Simply contact us:
Online and available Currently unavailable
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
In the common DC link of a drive package, the Bosch Rexroth HLC01.1D-05M0-A-007-NNNN provides additional capacitance. The module belongs to the IndraDrive HLC series and handles the storage of charge within the electrical drive supply. Its system role lies on the DC link side between rectification and inverters. It contains the capacitor assembly for this DC circuit and thus supplements the other components of the drive package. The rated capacitance of this version is 5.0 mF. Together with the rated DC link voltage of 700 V DC, it characterises the electrical size of the module. For thermal considerations, a power loss of 13 W at 750 V DC is additionally specified. This voltage condition explicitly belongs to the power loss value; it does not replace the rated voltage specification. The maximum current is 60 A at an ambient temperature of 55 °C. The temperature assignment is therefore part of the current specification. For an order of the HLC01.1D-05M0-A-007-NNNN with shipping from Germany to the United States and other international destinations, the complete version identifier together with these electrical reference data remains decisive. Cooling is provided by natural convection. The heat generated is released to the surroundings via the housing; a fan is not part of this cooling principle. The housing has degree of protection IP20. An installation depth of 400 mm is specified, while the weight is listed as 8.6 kg. After switching off, the stored charge remains a property of the DC link capacitor. A maximum time of 760 seconds is specified for discharging. This time value describes the discharge process of the capacitor assembly and must be considered separately from the rated values for voltage and capacitance.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Bosch Rexroth |
|---|---|
| Product series | IndraDrive HLC |
| Manufacturer/order/identification number | HLC01.1D-05M0-A-007-NNNN |
| Device type | DC link capacitor module |
| Rated capacitance | 5.0 mF |
| Rated DC link voltage | 700 V DC |
| Maximum current at 55 °C | 60 A |
| Degree of protection | IP20 |
| Cooling method | Natural convection |
| Power loss at 750 V DC | 13 W |
| Maximum discharge time | 760 s |
| Installation depth | 400 mm |
| Dimensions | approx. 100 × 450 × 400 mm |
| Weight (reference not specified) | 8.6 kg |
