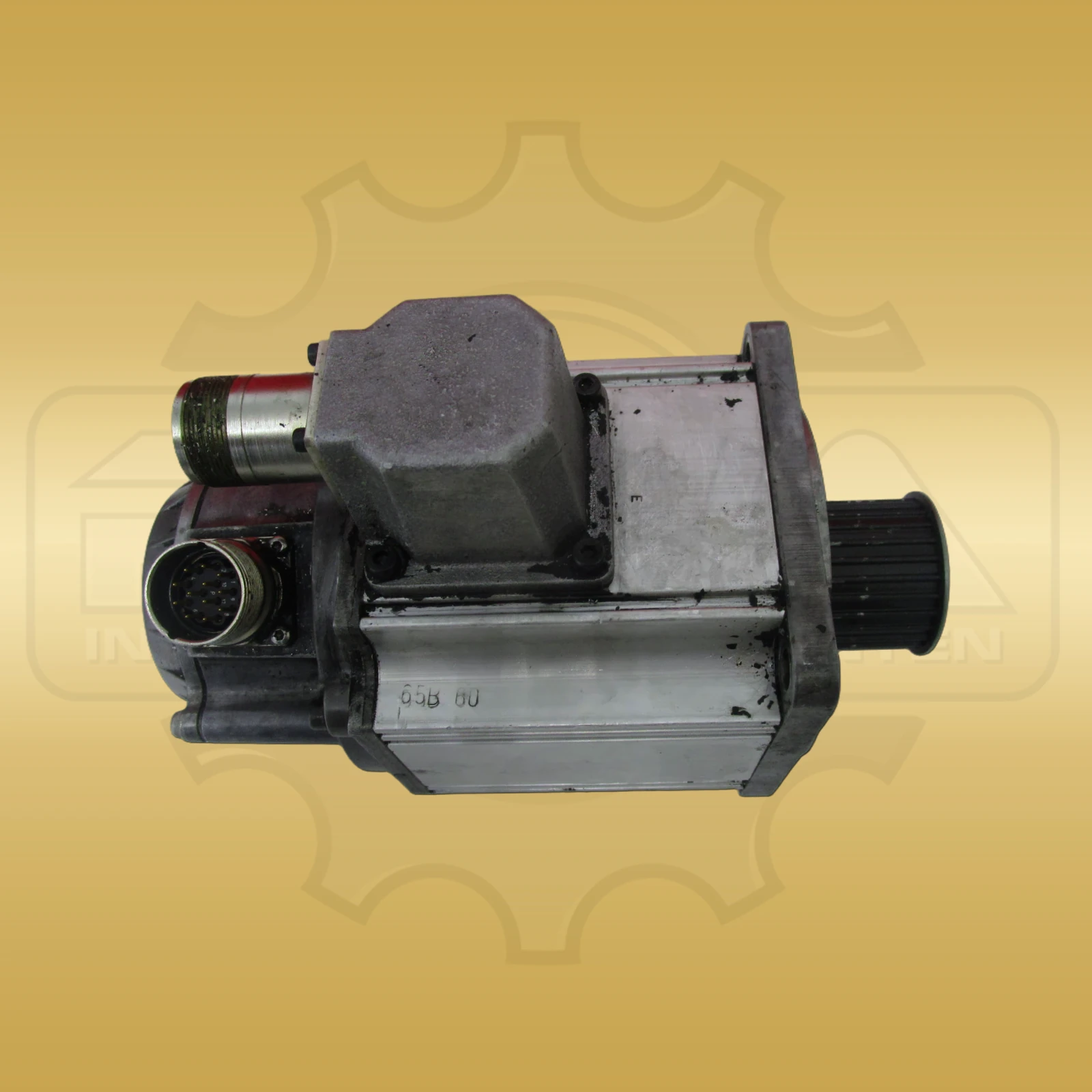

MDD Digital AC servo motor

Bosch Rexroth MDD065B-N-060-N2M-095GB0

€1,010.00

excl. VAT

Product condition:
Used, removed from an installation

The item comes from dismantled equipment. We have not carried out an electrical inspection or a comprehensive operational check. Signs of age, use, installation or removal may be present. 14-day right of return in the event of a defect. See Terms and Conditions

  • Available · Ships in approx. 3–5 business days
  • Urgent? Faster options such as direct or express shipping are often possible. Please state your required date when you request a quote or order.

Quantity: 1

Do you have any questions?

Personal service

We are happy to help with processing, shipping or individual quotations. Simply contact us:

Online and available Currently unavailable

International delivery

Available shipping options and net charges are calculated after the delivery country and postcode are entered at checkout. If no reliable rate is available, request an individual quotation.

Product description

Mechanically, the Bosch Rexroth MDD065B-N-060-N2M-095GB0 is defined by motor size 065, length B and a 95 mm centring diameter. The plain output shaft has a diameter of 14 mm, while the type code specifies the power connection toward side B. No holding brake is installed in the version with final digit 0. Natural convection and surface cooling are specified for the standard housing.

Feedback code M denotes digital servo feedback with an integrated multiturn absolute encoder. This system records position, speed and rotor position. The series uses permanent-magnet synchronous motors with electronic commutation. Motor power and feedback are connected through separate plug connectors. The motor housing and the power and feedback connections meet IP65; IP50 applies at the shaft without a shaft seal.

For winding variant 060, the rated speed is 6,000 min⁻¹. With natural convection, the standstill torque is 1.5 Nm and the standstill current is 5.9 A. Surface cooling raises these ratings to 1.7 Nm and 6.7 A. The theoretical maximum torque is 4.4 Nm, and the peak current is 26.3 A. The rotor has a moment of inertia of 2.2 × 10⁻⁴ kgm²; the torque constant is 0.26 Nm/A.

The permitted ambient temperature extends from 0 to +45 °C, and the maximum installation altitude without derating is 1,000 m. Transport and storage temperatures are specified from -20 to +80 °C. The thermal time constant is 30 minutes with natural convection and 15 minutes with surface cooling. Without a holding brake, length B measures 178 mm along the motor axis with a 100 × 100 mm flange. The motor weight is 3.9 kg.

Specifications

Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.

Identification

Manufacturer Bosch Rexroth
Product range MDD
Manufacturer/order/identification number MDD065B-N-060-N2M-095GB0
Device type Digital AC servo motor

Performance data

Rated speed 6,000 min⁻¹
Standstill torque 1.5 Nm; 1.7 Nm with surface cooling
Standstill current 5.9 A; 6.7 A with surface cooling
Theoretical maximum torque 4.4 Nm
Peak current 26.3 A
Rotor moment of inertia 2.2 × 10⁻⁴ kgm²
Torque constant 0.26 Nm/A at 20 °C
Power connection Plug connector toward side B

Interfaces

Motor feedback Digital servo feedback with integrated multiturn absolute encoder
Output shaft Plain shaft, Ø 14 mm

Installation and environment

Degree of protection IP65 housing and connections; IP50 shaft without shaft seal
Ambient temperature 0 to +45 °C

Dimensions and weight

Motor size / length 065 / B
Dimensions 178 mm overall length; 100 × 100 mm flange; Ø 95 mm centring diameter
Weight 3.9 kg without holding brake

Further details

Holding brake Not installed
Industrial production environment

Urgent requirement?

Shipping options

Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.

Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.

Contact us now!

Product safety

Manufacturer / EU responsible person

FAQ

Questions about MDD065B-N-060-N2M-095GB0

Contact us
Which feedback and shaft versions does the motor use?

Code M denotes digital servo feedback with an integrated multiturn absolute encoder; code G identifies the plain output shaft.

Does the MDD065B-N-060-N2M-095GB0 have a holding brake?

No. The final digit 0 identifies the version without a holding brake.
