MDD Digital AC Servo Motors Permanent-magnet digital AC servo motor

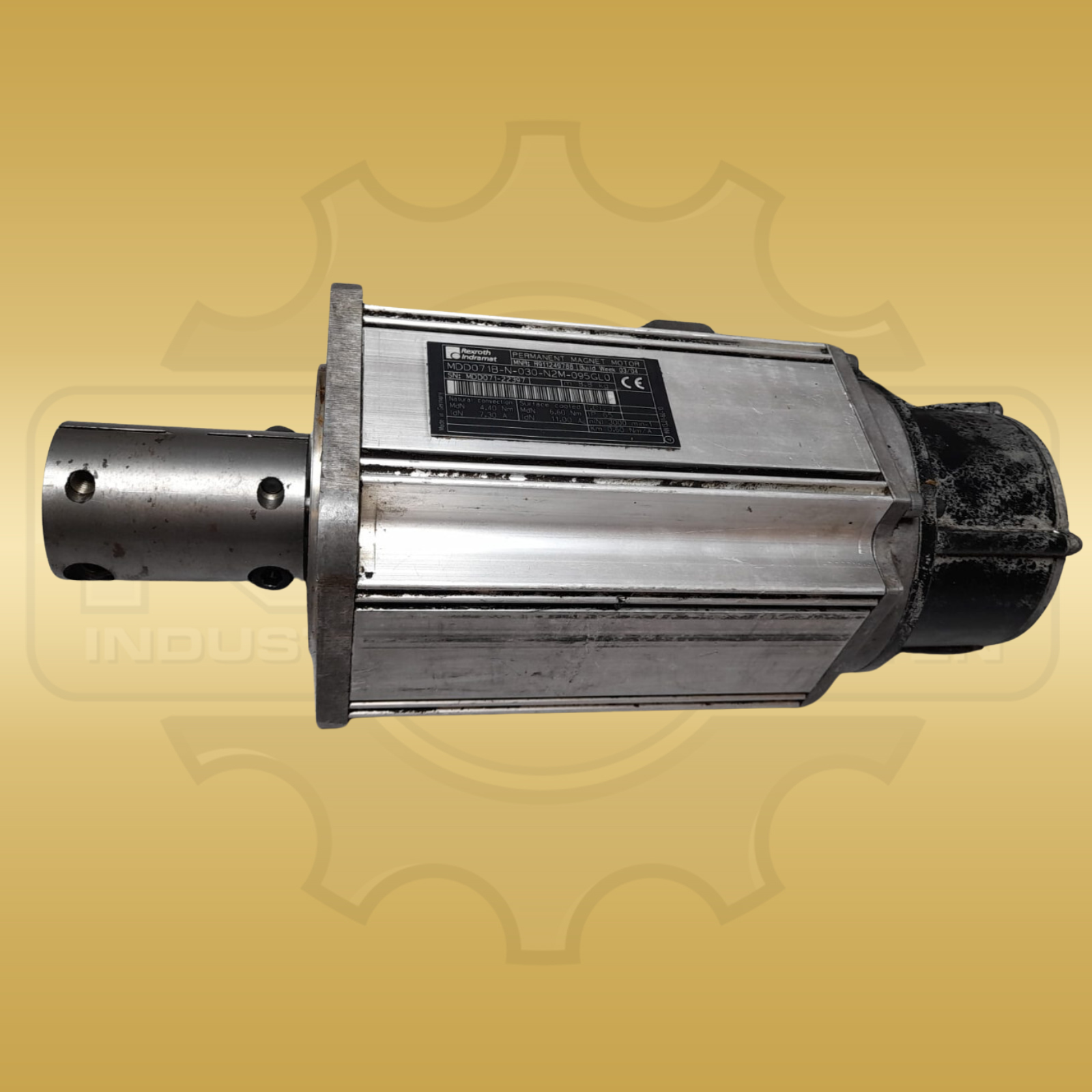

Bosch Rexroth MDD071B-N-030-N2M-095GL0

€470.00

excl. VAT

Product condition:
Used, removed from an installation

The item comes from dismantled equipment. We have not carried out an electrical inspection or a comprehensive operational check. Signs of age, use, installation or removal may be present. 14-day right of return in the event of a defect. See Terms and Conditions

  • In stock · Ships in approx. 1–2 business days · Express shipping on request
  • Urgent? Faster options such as direct or express shipping are often possible. Please state your required date when you request a quote or order.

Quantity: 1

Do you have any questions?

Personal service

We are happy to help with processing, shipping or individual quotations. Simply contact us:

Online and available Currently unavailable

International delivery

Available shipping options and net charges are calculated after the delivery country and postcode are entered at checkout. If no reliable rate is available, request an individual quotation.

Product description

Bosch Rexroth MDD071B-N-030-N2M-095GL0 identifies a permanent-magnet digital AC servo motor from the Indramat MDD range. The material number for this version is R911249788. It belongs to motor size MDD071 with length B and uses natural convection. Rated speed is 3,000 min⁻¹. At standstill the motor supplies 4.4 Nm continuous torque at 7.3 A continuous current. Theoretical maximum torque is 13.6 Nm and maximum current is 32.8 A. Rotor inertia is 8.9 × 10⁻⁴ kgm².

Further electrical values are a 0.60 Nm/A torque constant, 1.60 Ω winding resistance and 9.4 mH winding inductance. The enclosure has IP65 protection. Code N2M denotes digital servo feedback with integrated multiturn absolute encoder. The mechanical version has a plain shaft and no holding brake. Ambient temperature ranges from 0 to +45 °C; storage and transport range from −20 to +80 °C. Maximum external width is 115 mm. Power and feedback connectors produce an overall height of 155.5 mm.

The axial envelope of shaft, flange, motor body and rear end is 288 mm. Complete external dimensions are therefore 155.5 × 115 × 288 mm in height × width × depth order, including the shaft. Motor weight without holding brake and blower is 8.8 kg. Dimensions and weight refer to the individual naturally cooled motor. Type number, material number, feedback, shaft, brake version, dimensions and weight identify this variant.

Specifications

Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.

Identification

Manufacturer Bosch Rexroth
Product series MDD Digital AC Servo Motors
Manufacturer / order / identification number MDD071B-N-030-N2M-095GL0
Device type Permanent-magnet digital AC servo motor

Performance data

Rated speed 3,000 min⁻¹
Continuous standstill torque 4.4 Nm with natural convection
Continuous standstill current 7.3 A with natural convection
Theoretical maximum torque 13.6 Nm
Maximum current 32.8 A
Rotor moment of inertia 8.9 × 10⁻⁴ kgm²
Torque constant at 20 °C 0.60 Nm/A

Interfaces

Feedback Digital servo feedback with integrated multiturn absolute encoder
Output shaft Plain shaft

Installation and environment

Degree of protection IP65

Dimensions and weight

Dimensions 155.5 × 115 × 288 mm (H × W × D, including shaft)
Weight 8.8 kg

Further details

Material number R911249788
Winding resistance at 20 °C 1.60 Ω
Winding inductance 9.4 mH
Holding brake Without
