Bosch Rexroth MKD041B-144-KP1-KN
€870.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

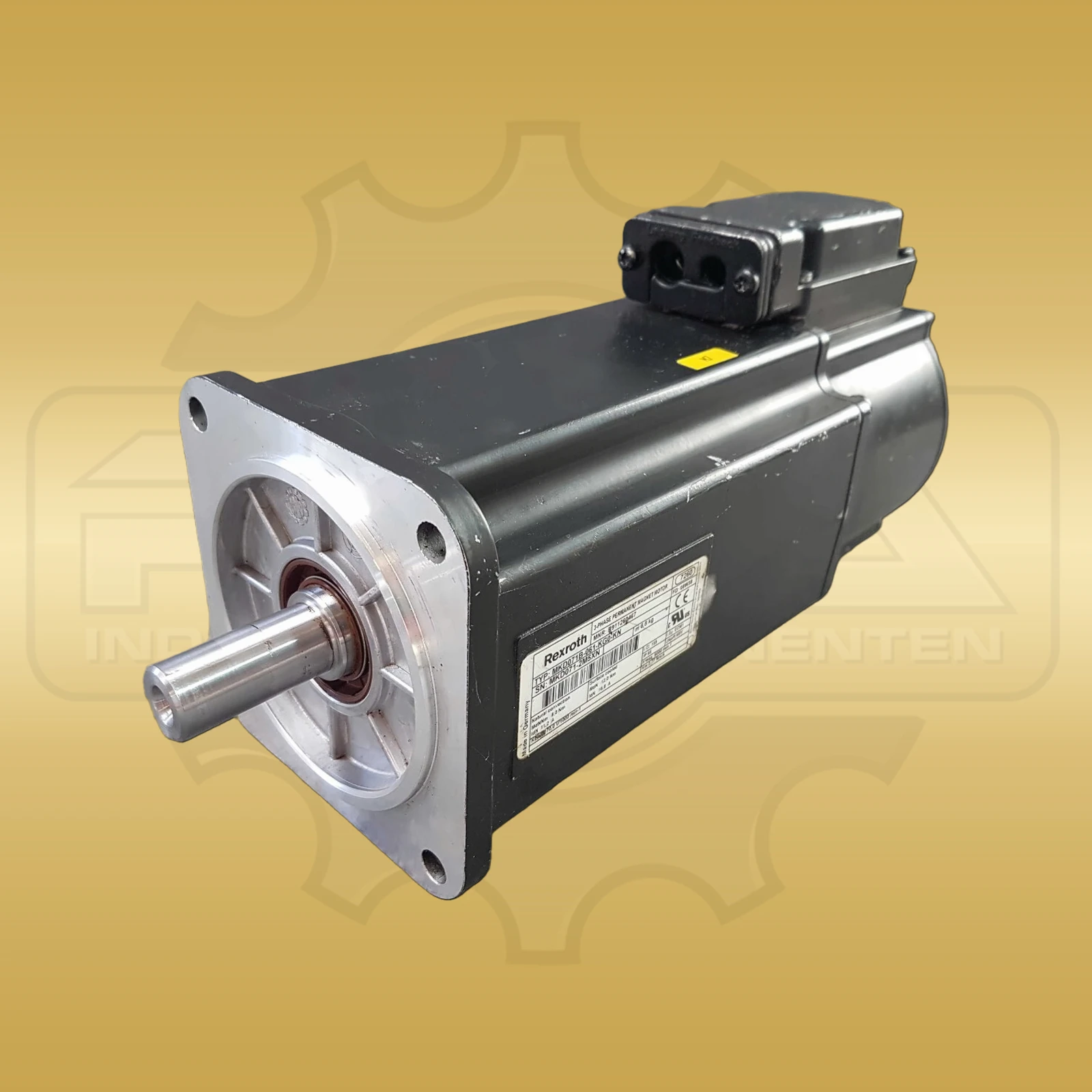

Bosch Rexroth MKD071B-061-KG0-KN identifies a brushless permanent-magnet synchronous servo motor from the MKD series. Bosch Rexroth lists this version under material number R911260467. Motor size is 071 and the winding code is 061. Position feedback uses a resolver with integrated multiturn absolute-position detection over more than 4096 revolutions. Code KG0 describes the combination of this feedback system, a plain output shaft with shaft seal and a version without holding brake. Continuous standstill torque is 8.0 Nm. Continuous current at 100 K is documented as 13.2 A. Maximum speed is 6000 min-1 and characteristic motor speed is 4500 min-1. Rotor inertia is 8.7 x 10-4 kgm². The motor enclosure has IP65 protection and insulation class F. The documentation specifies an ambient temperature range from 0 to 40 °C and an installation altitude up to 1000 m. The Bosch Rexroth dimension drawing gives 130 mm maximum width for the MKD071 version. Overall height with terminal box is 138 mm. The documented axial envelope combines shaft, flange section, motor body and rear end and totals 312 mm. Complete external dimensions are therefore 138 × 130 × 312 mm in height × width × depth order, including the shaft. Documented motor weight without holding brake is 8.8 kg. Dimensions and weight refer to the individual motor without an optional blower. Type number, material number, winding, feedback, shaft, brake version, dimensions and weight identify this exact variant.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Bosch Rexroth |
|---|---|
| Product series | MKD synchronous motors |
| Manufacturer / order / identification number | MKD071B-061-KG0-KN |
| Material number | R911260467 |
| Motor type | brushless permanent-magnet synchronous servo motor |
| Frame size | 071 |
| Winding code | 061 |
| Feedback | resolver feedback with integrated multiturn absolute-position detection |
| Absolute range | more than 4096 revolutions |
| Maximum speed | 6000 min-1 |
| Characteristic speed | 4500 min-1 |
| Continuous standstill torque | 8.0 Nm |
| Continuous standstill current | 13.2 A at 100 K |
| Degree of protection | IP65 |
| Insulation class | F |
| Rotor inertia | 8.7 x 10-4 kgm² |
| Output shaft | plain shaft with shaft seal |
| Ambient temperature | 0 to 40 °C |
| Dimensions | 138 × 130 × 312 mm (H × W × D, including shaft) |
| Weight | 8.8 kg |
Related products
Go to shop
Bosch Rexroth MKD071B-061-KP1-KN
€1,560.00
Bosch Rexroth MDD071B-N-030-N2M-095GB1
€830.00
Bosch Rexroth MDD071B-N-030-N2M-095GL0
€470.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
Does Bosch Rexroth MKD071B-061-KG0-KN have a holding brake?
No. Version KG0 has resolver feedback and a plain shaft with shaft seal, but no holding brake.
What applies if an item develops a defect within 14 days?
For the condition categories “Used, removed from an installation” and “New, old stock”, the contractual 14-day right of return in the event of a defect applies. The defect must occur within 14 calendar days after delivery and be reported in text form within the same period.
In particular, the REHA tamper-evident seal must remain fully intact and our RMA approval is required before return. In an accepted case, we decide between replacement and refund. Details in Section 11 of the Terms.
Which shipping methods and delivery times are available?
The shipping method, shipping cost and estimated delivery time are confirmed for the specific order. Depending on the item, destination and urgency, we can check parcel, express or freight shipping as well as collection.
A delivery date is binding only if we expressly confirm it as binding.
Which payment terms apply?
The payment terms stated in the checkout or order confirmation apply. Depending on the order and customer, payment is made in advance or against invoice.
International deliveries and deliveries to new customers are generally made against advance payment unless we expressly confirm another payment arrangement.
Can I return an item ordered incorrectly or found incompatible?
No. There is no general B2B right of return, exchange, cancellation or withdrawal. Incorrect or duplicate orders and a lack of suitability or compatibility with the customer’s installation are not covered by the contractual 14-day right of return in the event of a defect. Details in Section 12 of the Terms.
Can I request individual pricing for several items?
You may request an individual quotation for several items or larger quantities. We then check availability and pricing for the specific requirement; there is no entitlement to a quantity discount. Open the quick enquiry.
Do you also purchase industrial spare parts?
Yes. You can offer us automation and drive components for purchase. Please provide complete type numbers, quantities, condition details and photographs where possible.
After review, we will tell you whether a purchase is possible and on which terms. Learn more about selling industrial stock.
Receive a quotation by email
Request price
Use the form to request item-specific price, availability and estimated delivery information.
