Product description
As a mains-fed controller for AC main spindle drives, the Bosch Rexroth RAC-3.1-150-460-A00-W1-220 combines power control and regenerative feedback in one control cabinet unit. This version belongs to the Indramat-RAC-3 series and is assigned to the 150-A current class. Its power section is supplied from a three-phase AC mains connection at 380 to 460 V and 50 to 60 Hz; the permissible voltage tolerance is ±10 percent. For continuous operation, a controller current of 92 A and an output of 35 kW at the motor shaft are specified. The controller briefly reaches a peak output of 55 kW. Regenerative output is specified as 27 kW continuously and 55 kW for a maximum of five seconds. This version processes an analogue ±10 V signal as the speed setpoint. Code A00 denotes a version without an additional encoder input and without an additional interface. W identifies the version without an additional bleeder resistor, while the digit 1 specifies the built-in fan. The control electronics require 230 V AC at 50 to 60 Hz and 200 VA. Motor feedback is routed through the 15-pin X3 connector; control, signal and analogue outputs are located on the 37-pin X2 connector. An AS programming module stores the drive-specific and application-specific parameters. The enclosure measures 300 mm in width, 690 mm in height and 380 mm in depth. The net weight is 49 kg. For this specific controller, shipping to the United States and other international destinations is arranged for the individual order. Protection rating IP10 requires installation in a suitable control cabinet or closed enclosure. At full rated data, the permissible ambient temperature range is +5 to +45 °C; reduced rated data apply up to +55 °C.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Bosch Rexroth |
|---|---|
| Product series | Indramat RAC 3 |
| Manufacturer/order/identification number | RAC-3.1-150-460-A00-W1-220 |
| Device type | AC main spindle drive controller |
| Current class | 150 A |
| Power electronics mains connection | 3 × AC 380–460 V, ±10 %, 50–60 Hz |
| Control voltage | AC 230 V, ±10 %, 50–60 Hz; 200 VA |
| Speed setpoint | Analogue ±10 V |
| Additional encoder input | Not fitted |
| Additional interface | Not fitted |
| Additional bleeder resistor | Not fitted |
| Cooling | Built-in fan |
| Continuous controller current | 92 A |
| Continuous output at motor shaft | 35 kW |
| Peak output at motor shaft | 55 kW |
| Continuous regenerative output | 27 kW |
| Peak regenerative output | 55 kW for a maximum of 5 s |
| Protection rating | IP10 |
| Dimensions | 300 × 690 × 380 mm (W × H × D) |
| Weight | 49 kg net |
Related products
Go to shop

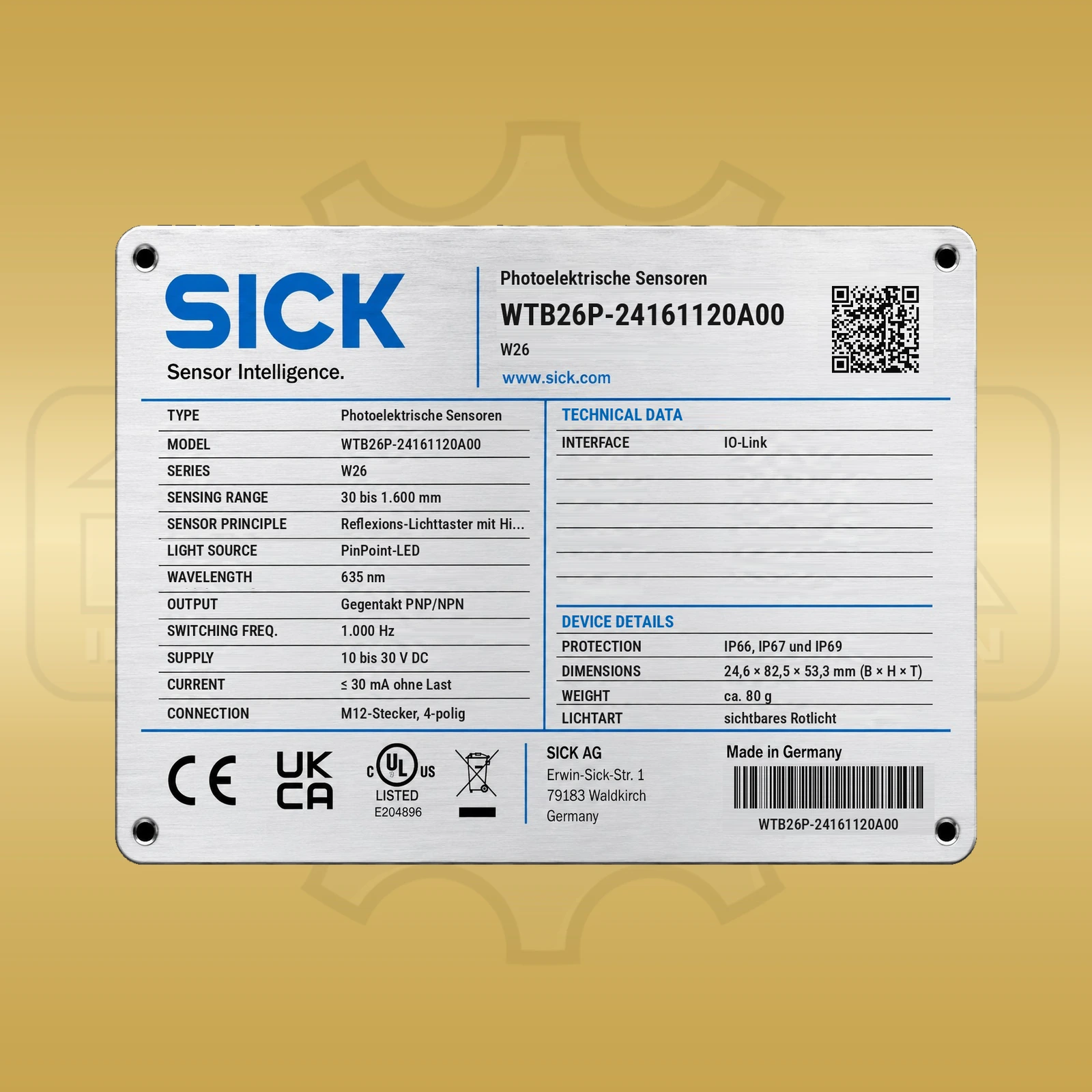

SICK WTB26P-24161120A00
