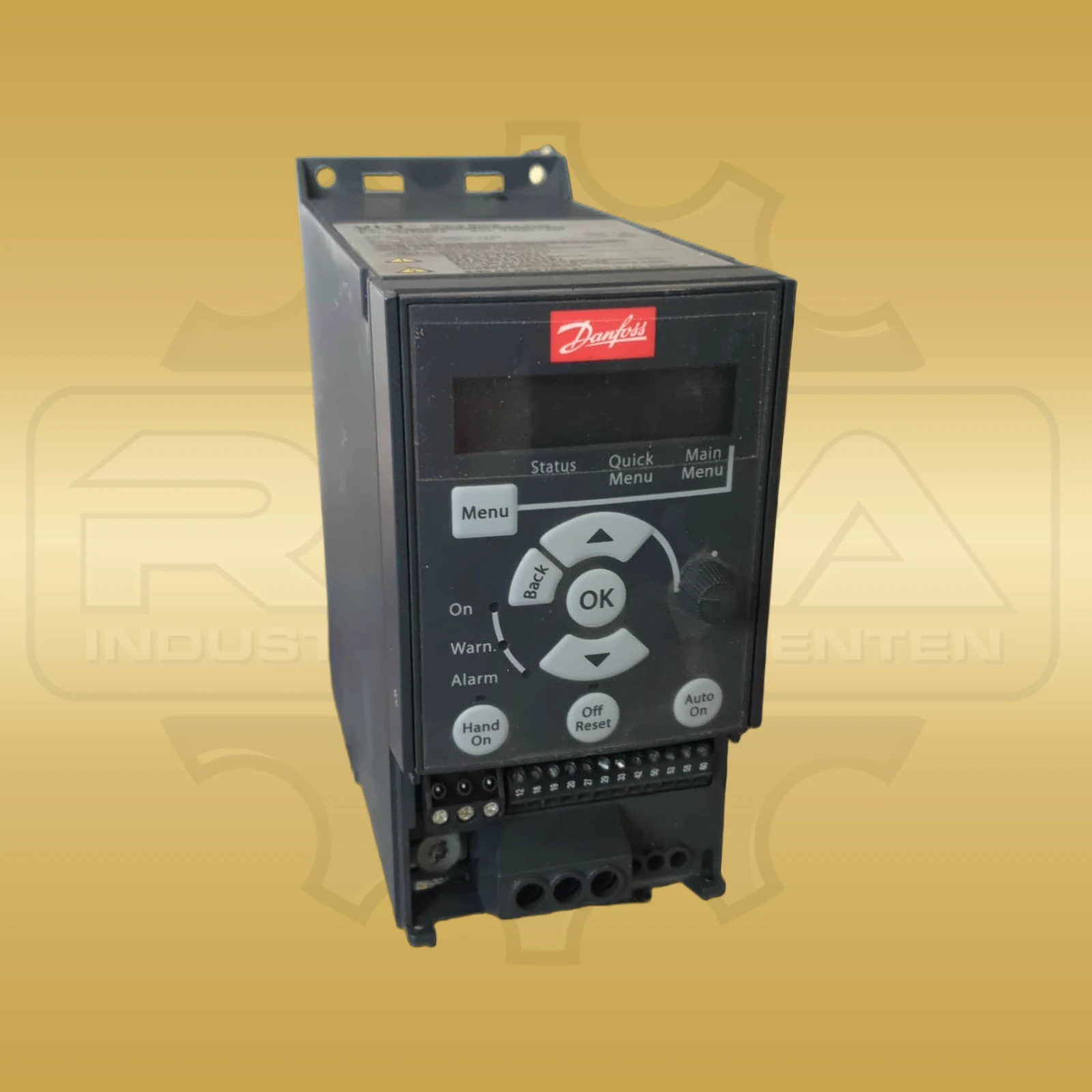

Danfoss 132F0003
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
Control terminals, the graphical user interface, and the internal device bus form the operation and signal level of the Danfoss 131B0790. The order number refers to a VLT AutomationDrive FC 302 with the full type code FC-302PK37T5E20H1XGXXXXSXXXXAXBXCXXXXD0. The configuration provides 0.37 kW motor power for three-phase grids from 380 to 500 V. The IP20 chassis belongs to frame size A2. For this power class, Danfoss specifies an output current of 1.3 A at 380 to 440 V and 1.2 A at 441 to 500 V. The short-term maximum current is 2.1 or 1.9 A respectively. The continuous input current is 1.9 A; the typical power loss is specified as 35 W. This clearly distinguishes the power section and thermal classification from larger FC-302 variants. In the type code, H1 denotes the integrated RFI filter of class A1/B. X at the braking position indicates a version without a brake transistor. The baseboard has a 3C2 protective coating. Option slots A and B are unpopulated in this configuration, while D0 identifies the connection for an external 24-V-DC supply. The graphical user interface supports parameterization, status display, and diagnostics directly on the drive. Mechanically, the A2 frame size measures 268 mm in height, 90 mm in width, and 205 mm in depth; with option modules, the depth can reach 220 mm. The maximum device weight is 4.9 kg. Order number 131B0790 is crucial because power, grid class, enclosure, filter, operation, and option configuration together define a specific FC-302 variant. The absence of option cards also forms part of the unique configuration.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Danfoss |
|---|---|
| Product Series | VLT AutomationDrive FC 302 |
| Manufacturer/Order/ID Number | 131B0790 |
| Full Type Code | FC-302PK37T5E20H1XGXXXXSXXXXAXBXCXXXXD0 |
| Device Type | Variable Frequency Drive |
| Motor Power | 0.37 kW |
| Power Supply | 3 × 380–500 V AC |
| Output Current | 1.3 A at 380–440 V; 1.2 A at 441–500 V |
| Max Current 60 s | 2.1 A or 1.9 A respectively |
| Protection Class | IP20 / Chassis |
| Frame Size | A2 |
| RFI Filter | Class A1/B (H1) |
| User Interface | Graphical Control Panel |
| PCB Coating | 3C2 |
| Brake Transistor | Not included |
| Dimensions | Approx. 268 × 90 × 205 mm |
| Weight | Max. 4.9 kg |
Related products
Go to shop
ABB ACS550-U1-038A-4
Price on request
ABB ACS580-01-025A-4
Price on request
Control Techniques M702-034
€640.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What power rating and supply voltage does Danfoss 131B0790 have?
The FC-302 variable frequency drive has a rated motor power of 0.37 kW and a three-phase power supply of 380 to 500 V AC.
What enclosure and filter configuration does 131B0790 have?
The configuration uses an IP20 chassis in frame size A2 and an RFI filter of class A1/B.
