Danfoss FC-102P11KT4E20H1
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
The 11 kW power class and three-phase mains range from 380 to 480 V AC characterise the Danfoss FC-102P11KT4E20H1XGXXXXSXXXXAXBXCXXXXDX within the VLT HVAC Drive FC 102 range. The complete type identifier belongs to article number 131F0427 and distinguishes this B3 version from other power and enclosure variants. At 380 to 439 V, rated output current is 24 A; in the range from 440 to 480 V, it is specified as 21 A. Mains frequency is 50 to 60 Hz, while efficiency at rated load is 0.98. The frequency converter is specified with IP20 or UL Open Type. An integrated Class A1/B EMC filter corresponds to Class C1. Operation is provided through a graphical Local Control Panel. The variant code specifies no brake chopper and no A, B, C or D communication option; the circuit-board coating is also defined as uncoated. These details remain bound to the complete FC-102P11KT4E20H1XGXXXXSXXXXAXBXCXXXXDX character string so that characteristics from adjacent configurations are not assigned to this version. The enclosure measures 165 mm in width, 399 mm in height and 249 mm in depth. The variant-specific net weight is 12 kg. For the specific order, dispatch from Germany can be arranged for the United States and other international destinations with these mechanical characteristics taken into account. Together with B3 enclosure size, protection rating, control unit and electrical values, they provide an objective comparison of the documented product data. VLT HVAC Drive FC 102 and HVAC frequency converter identify the device family and device type. The complete type number, Danfoss article number 131F0427 and the documented power, current, protection and enclosure data remain authoritative for identity checks.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Danfoss |
|---|---|
| Product range | VLT HVAC Drive FC 102 |
| Manufacturer/order/identification number | FC-102P11KT4E20H1XGXXXXSXXXXAXBXCXXXXDX |
| Danfoss article number | 131F0427 |
| Device type | HVAC frequency converter |
| Rated power | 11 kW / 15 hp |
| Phases | Three-phase |
| Mains voltage | 380–480 V AC |
| Mains frequency | 50–60 Hz |
| Rated output current | 24 A at 380–439 V; 21 A at 440–480 V |
| Protection rating | IP20 / UL Open Type |
| Enclosure size | B3 |
| EMC filter | Integrated, Class A1/B (C1) |
| Brake chopper | Not included |
| Control unit | Graphical Local Control Panel (LCP) |
| Circuit-board coating | Uncoated |
| Communication options | No A, B, C or D option |
| Efficiency at rated load | 0.98 |
| Dimensions | 165 × 399 × 249 mm (W × H × D) |
| Weight | 12 kg net weight |
Related products
Go to shop
Danfoss FC-102P37KT4P55H1
€2,080.00
Danfoss FC-302P1K1T5E20H1
Price on request

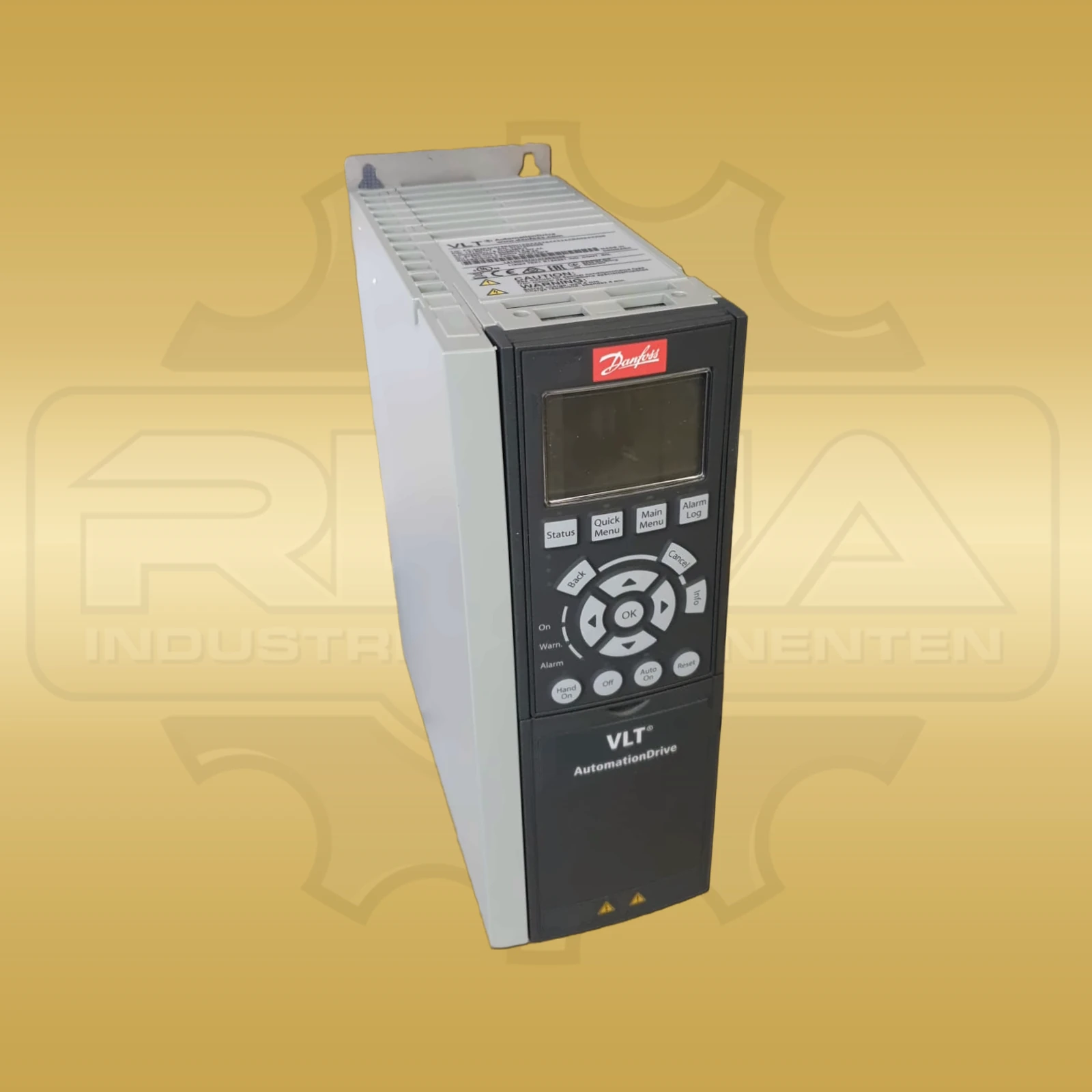

Danfoss FC-302P4K0T5E20H1XGXXXXSXXXXAXBXCXXXXD0
