Danfoss 131X3591
€140.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

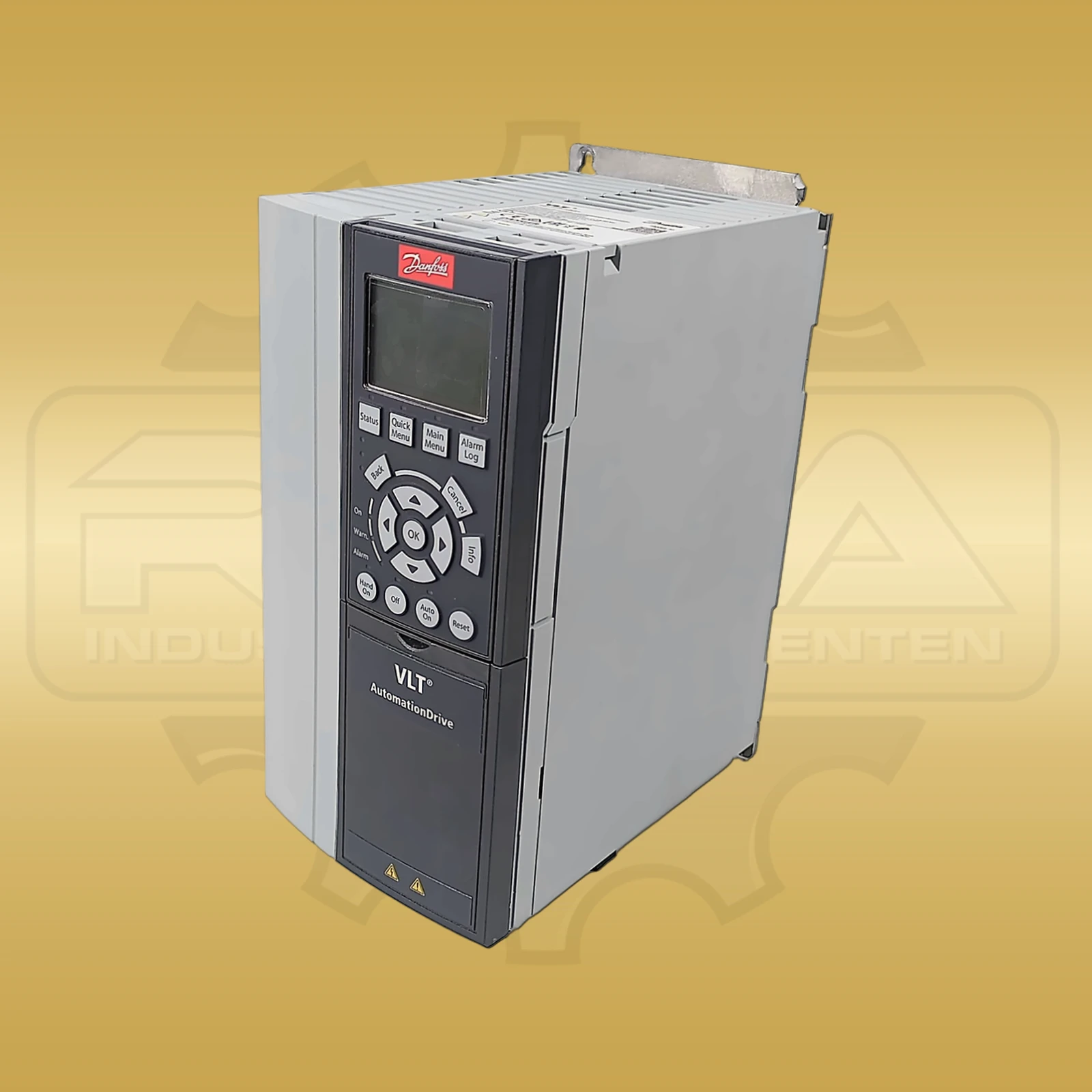

Danfoss FC-302P5K5T5E20H1 identifies a VLT AutomationDrive FC 302 frequency inverter. Type-code element P5K5 denotes a power class of 5.5 kW or 7.5 hp. T5 denotes the three-phase mains voltage range of 3 × 380–500 V AC. Enclosure code E20 denotes a control-cabinet version with IP20 protection. Filter code H1 denotes the integrated class A1/B EMC filter. At 5.5 kW and IP20, this version belongs to enclosure size A3. Technical equipment includes control of asynchronous and permanent-magnet motors and the FC-302 platform for speed-, torque- and position-related control tasks. The visible specification remains limited to the base type code FC-302P5K5T5E20H1. Additional options, communication cards or safety modules are only part of a fully extended type designation and are not assumed here. Manufacturer, product series, complete manufacturer/order/identification number, power class, voltage code, enclosure version, protection rating and filter code jointly define the exact identity. The Danfoss A3 enclosure in IP20 has a width of 130 mm, a height of 268 mm and a depth of 205 mm without option A/B. Complete external dimensions are therefore 130 × 268 × 205 mm in width × height × depth order. This configuration has a maximum enclosure weight of 6.6 kg; product weight is therefore conservatively shown as ca. 6.6 kg. Dimensions and weight refer to the individual frequency inverter without packaging. Type code, enclosure size and mechanical data are bound within the same variant chain.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Danfoss |
|---|---|
| Product series | VLT AutomationDrive FC 302 |
| Manufacturer / order / identification number | FC-302P5K5T5E20H1 |
| Device type | Frequency inverter |
| Power rating | 5.5 kW / 7.5 hp |
| Mains voltage class | 3 × 380–500 V AC |
| Voltage code | T5 |
| Enclosure version | E20, control-cabinet installation |
| Degree of protection | IP20 |
| RFI filter | H1, class A1/B |
| Motor types | Asynchronous and permanent-magnet motors |
| Installation environment | Industrial control cabinet |
| Dimensions | 130 × 268 × 205 mm (W × H × D, A3 IP20 enclosure without option A/B) |
| Weight | ca. 6.6 kg |
Related products
Go to shop
Danfoss 134G2553
€250.00
Danfoss FC-102P11KT4E20H1
Price on request
Danfoss FC-302P2K2T5E20H1
Price on request
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the dimensions and weight of Danfoss FC-302P5K5T5E20H1?
Without option A/B, the A3-IP20 enclosure measures 130 × 268 × 205 mm in width × height × depth order. Product-specific estimated weight is ca. 6.6 kg.
What power and mains voltage does Danfoss FC-302P5K5T5E20H1 have?
The power class is 5.5 kW or 7.5 hp. The mains voltage range is 3 × 380–500 V AC.
