Fanuc A06B-0063-B003
€1,020.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

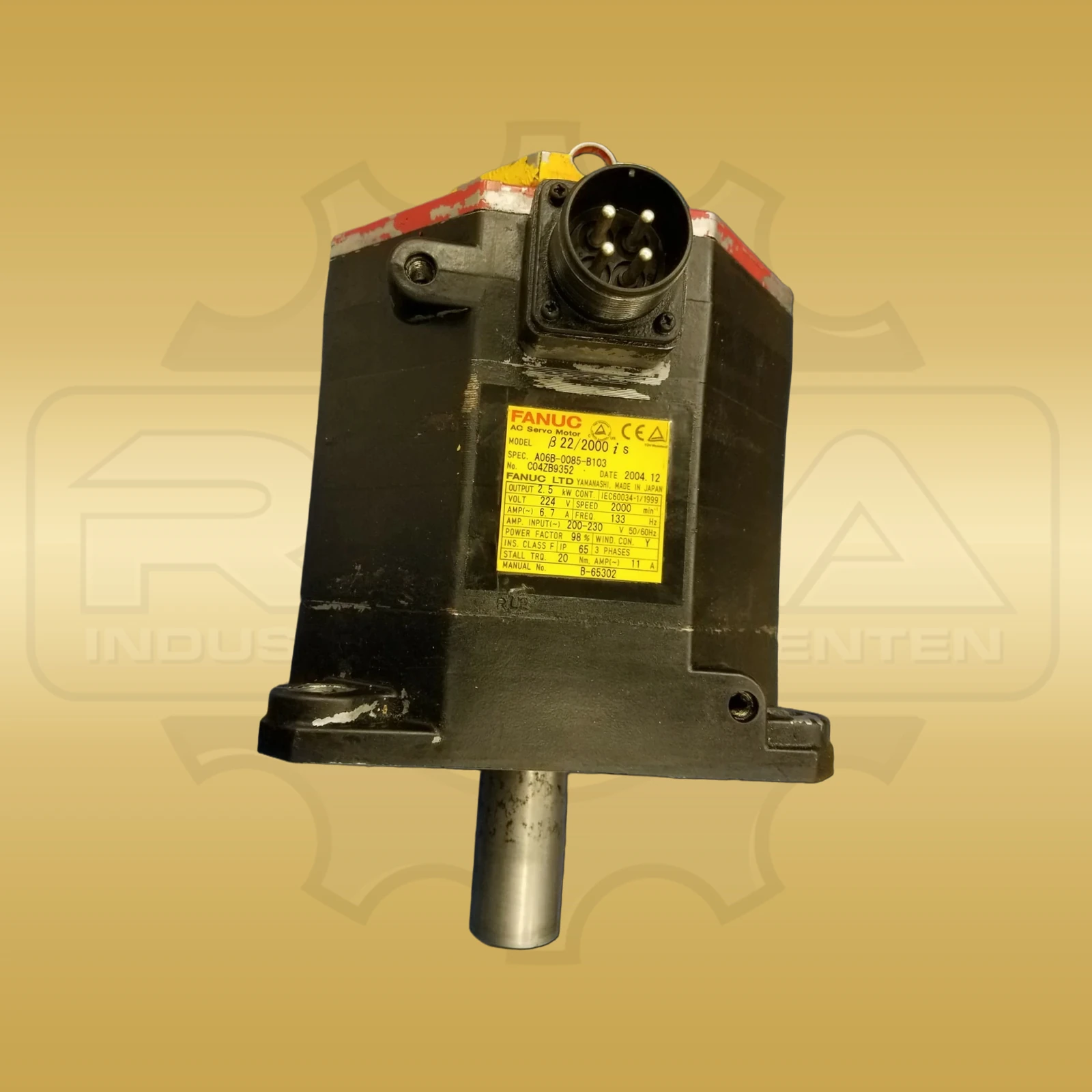

Fanuc A06B-0085-B103 is the ordering number for the βiS 22/2000 version of the permanent-magnet AC servo motor series. The B103 variant code identifies a straight shaft, construction without a holding brake and a β128iA pulse coder. Rated output is 2.5 kW at a rated speed of 2,000 min⁻¹. Continuous stall torque is 20 Nm and maximum torque is 45 Nm. This mechanical version has a 79 mm long plain shaft with a diameter of 35 mm and a flange with a 200-mm bolt circle. Four mounting holes, each 13.5 mm in diameter, are positioned on that circle. The square motor body measures 174 mm at the flange side. Derived directly from the dimensioned drawing, complete overall dimensions including shaft and connector are 174 mm wide, 214 mm high and 281 mm long. Motor weight is 7 kg. The rear encoder section carries the electrical pulse-coder connection, while the separate power connector is located on the side of the motor housing. The full ordering number, straight shaft, absence of a holding brake and encoder version together define the exact configuration. Adjacent variants of the same motor size differ particularly in shaft form, brake and pulse coder. Rated data, flange pattern and connector position therefore provide separate identifying details for comparison with similarly named βiS motors.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | FANUC |
|---|---|
| Product series | βiS |
| Manufacturer/order/identification number | A06B-0085-B103 |
| Device type | Permanent-magnet AC servo motor |
| Motor model | βiS 22/2000 |
| Rated output | 2.5 kW |
| Rated voltage | 244 V |
| Continuous torque | 20 Nm |
| Maximum torque | 45 Nm |
| Rated speed | 2,000 min⁻¹ |
| Maximum speed | 2,000 min⁻¹ |
| Shaft end | Straight shaft |
| Holding brake | Without holding brake |
| Feedback | Absolute encoder |
| Encoder | β128iA |
| Dimensions | 174 × 214 × 281 mm (W × H × L, including shaft and connector) |
| Weight | 7 kg |
Related products
Go to shop
Fanuc A06B-2127-B303
€1,090.00
Lenze MCS09F38-SRMP1-A14N-ST5S00N-R0SU
€670.00

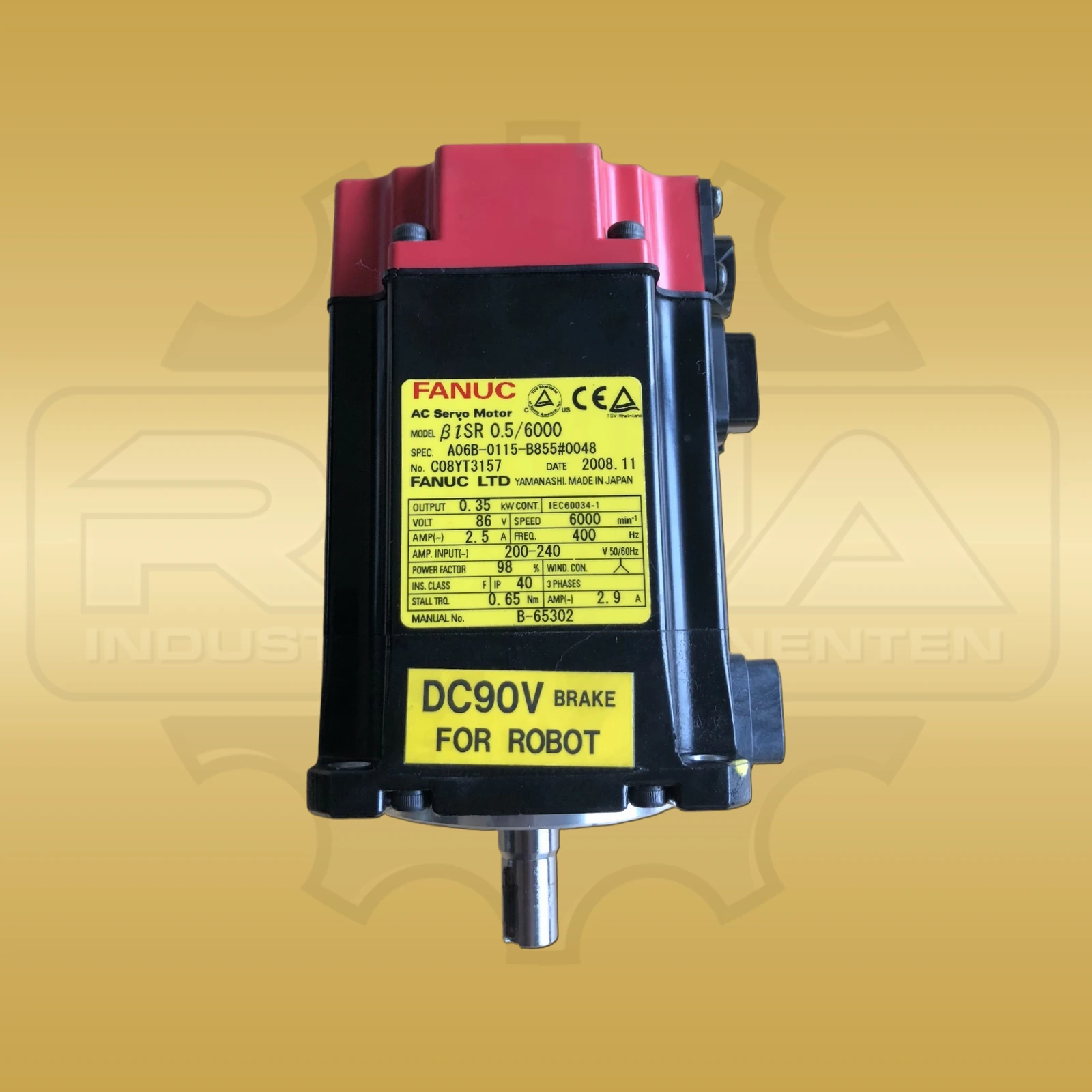

Fanuc A06B-0115-B855#0048
€1,310.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the dimensions and weight of Fanuc A06B-0085-B103?
Complete overall dimensions including shaft and connector are 174 × 214 × 281 mm in width × height × length order. Manufacturer-specified weight is 7 kg.
Which mechanical configuration does B103 identify?
B103 identifies this βiS 22/2000 with a straight shaft, no holding brake and a β128iA pulse coder.
