Fanuc A06B-1504-B104
€1,290.00
excl. VAT
Product condition:
Used, removed from an installation
The item comes from dismantled equipment. We have not carried out an electrical inspection or a comprehensive operational check. Signs of age, use, installation or removal may be present. 14-day right of return in the event of a defect. See Terms and Conditions
- In stock · Ships in approx. 1–2 business days · Express shipping on request
- Urgent? Faster options such as direct or express shipping are often possible. Please state your required date when you request a quote or order.
Do you have any questions?
Personal service
We are happy to help with processing, shipping or individual quotations. Simply contact us:
Online and available Currently unavailable
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

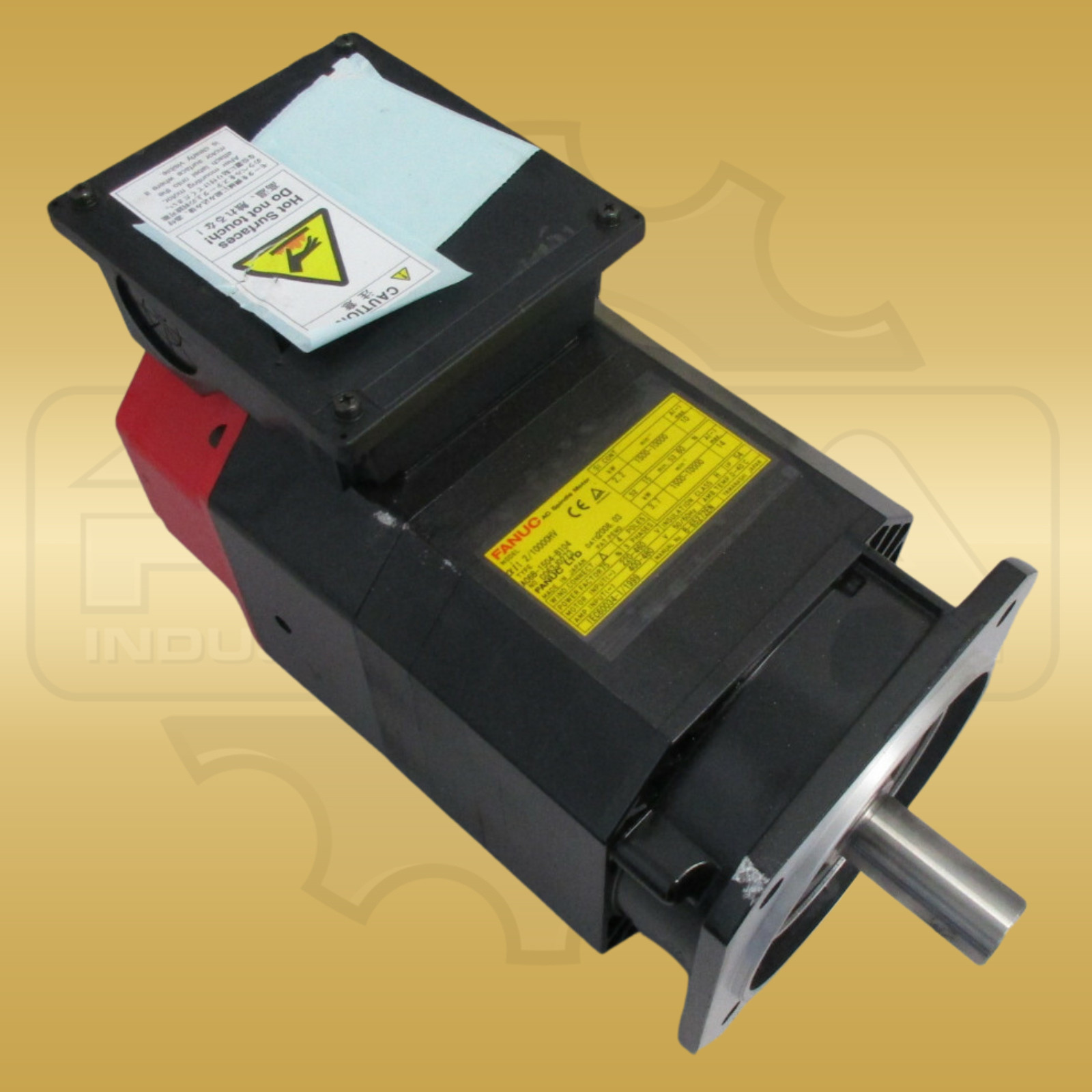

As a separately ventilated AC spindle motor of the α(HV)i series, the FANUC A06B-1504-B104 combines a continuous output of 2.2 kW with a base speed of 1500 min⁻¹. The maximum speed is 10000 min⁻¹. For S2 with 15 minutes or S3 with 60 percent, FANUC documents a short-time output of 3.7 kW. This allows the model to be classified unambiguously in technical terms for speed-related matching within an existing FANUC spindle configuration. The continuous current is 10 A, the short-time current 15 A. The continuous torque is 14.0 Nm, the rotor moment of inertia 0.0078 kg·m². In addition, the manufacturer table states an acceleration power of 4.44 kW and a winding resistance of 1180 mΩ. Speed detection is performed via an iMZ sensor with 128 teeth per revolution. These values make the electrical assignment to the existing drive configuration easier. The flange version is totally enclosed and separately ventilated according to cooling method IC0A6. The fan requires 200/230 V AC, single-phase, at 50/60 Hz and has a power consumption of 34 W. In this version, the exhaust air is routed on the side opposite the shaft end. For the specific order, the motor is handled with shipping from Germany to the United States and other international destinations. The FANUC dimension drawing shows a flange size of 174 × 174 mm, an installation length of 320 mm from the flange and a shaft projection of 60 mm. The shaft diameter is 28 mm. The permissible radial load is documented as 1274 N at the shaft end and 1445 N at the shaft center. The net weight is 27 kg. When matching spare parts, the complete designation A06B-1504-B104, the flange version, the sensor system and the existing mechanical interface must all correspond.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | FANUC |
|---|---|
| Product series | FANUC AC Spindle Motor α(HV)i series |
| Manufacturer/order/ident number | A06B-1504-B104 |
| Device type | AC spindle motor |
| Motor model | αiI 2/10000HV |
| Continuous output | 2.2 kW |
| Short-time output | 3.7 kW at S2 15 min / S3 60 % |
| Continuous current | 10 A |
| Short-time current | 15 A |
| Base speed | 1500 min⁻¹ |
| Maximum speed | 10000 min⁻¹ |
| Continuous torque | 14.0 Nm |
| Rotor moment of inertia | 0.0078 kg·m² |
| Winding resistance | 1180 mΩ |
| Cooling | Totally enclosed, separately ventilated, IC0A6 |
| Fan supply | 200/230 V AC, single-phase, 50/60 Hz |
| Speed detection | iMZ sensor, 128 teeth/rev |
| Permissible radial load | 1274 N at the shaft end / 1445 N at the shaft center |
| Dimensions | 174 × 174 × 380 mm (flange W × H × overall length including shaft) |
| Weight | 27 kg |
Related products
Go to shop
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What output and speed does the A06B-1504-B104 have?
The motor delivers 2.2 kW in continuous operation and 3.7 kW at S2 15 minutes or S3 60 percent. The base speed is 1500 min⁻¹, the maximum speed 10000 min⁻¹.
What mechanical design does the motor have?
The αiI 2/10000HV has flange mounting, a 28-mm shaft, an iMZ sensor and separately ventilated cooling.
