Product description

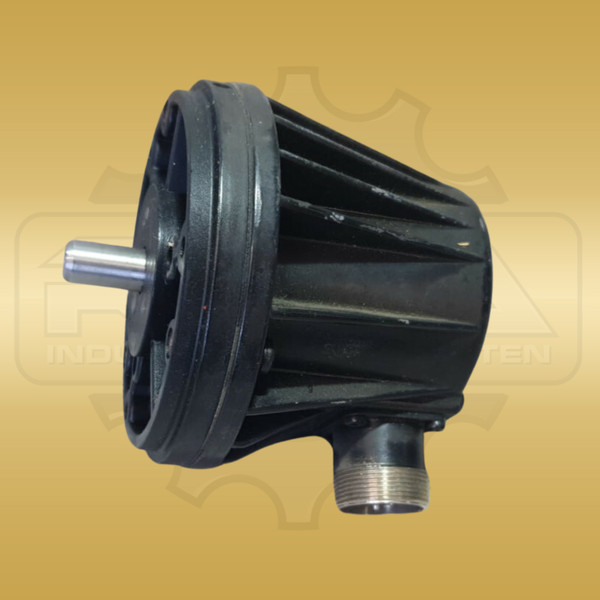

Heidenhain 223675-0C is an incremental rotary encoder from the established ROD 426 series. Its compact dimensions and high measuring resolution suit a wide range of industrial applications. The encoder provides 2000 lines per revolution and differential TTL signals to EIA RS-422: two incremental tracks displaced by 90° (Ua1/Ūa1 and Ua2/Ūa2), one reference pulse (Ua0/Ūa0) and an error signal (ŪaS) for monitoring operational readiness. The maximum scanning frequency is 300 kHz, resulting in a usable maximum speed of 9,000 min⁻¹ at 2000 lines. The unit operates from DC 5 V ± 0.5 V and draws no more than 120 mA without load. Its 6-mm solid shaft is intended for mounting through a synchro flange and a separate shaft coupling. Electrical connection uses a 12-pin M23 flange connector. The robust housing is rated IP67, while the shaft input is rated IP64. The specified temperature range is −40 °C to +100 °C. Vibration resistance of up to 300 m/s² and shock resistance of up to 2000 m/s² for 6 ms to EN 60068 complete the mechanical profile. Heidenhain 223675-0C is suitable for CNC machine tools, handling systems, drive controls and positioning duties that require precise position and speed measurement. Compare the line count, output interface, shaft, flange, connector and protection ratings with the installed encoder before replacement. Available directly from our warehouse in Germany.

Heidenhain 223675-0C

Specifications

Manufacturer Heidenhain
Product series ROD 426
Manufacturer/Order/Identification number 223675-0C
Encoder type Incremental rotary encoder with integral bearing
Line count 2000 lines/revolution
Output interface TTL (differential RS-422)
Output signals Ua1, Ūa1, Ua2, Ūa2, Ua0, Ūa0, ŪaS
Supply voltage DC 5 V ± 0.5 V
Current consumption ≤ 120 mA (without load)
Scanning frequency ≤ 300 kHz
Shaft diameter Ø 6 mm
Maximum speed ≤ 9,000 min⁻¹ (at 2000 lines/revolution, f ≤ 300 kHz)
Connection 12-pin M23 flange connector
Protection rating IP67 (housing), IP64 (shaft input)
Operating temperature −40 °C to +100 °C
Cooling method Natural convection
Weight approx. 0.3 kg
