Product description

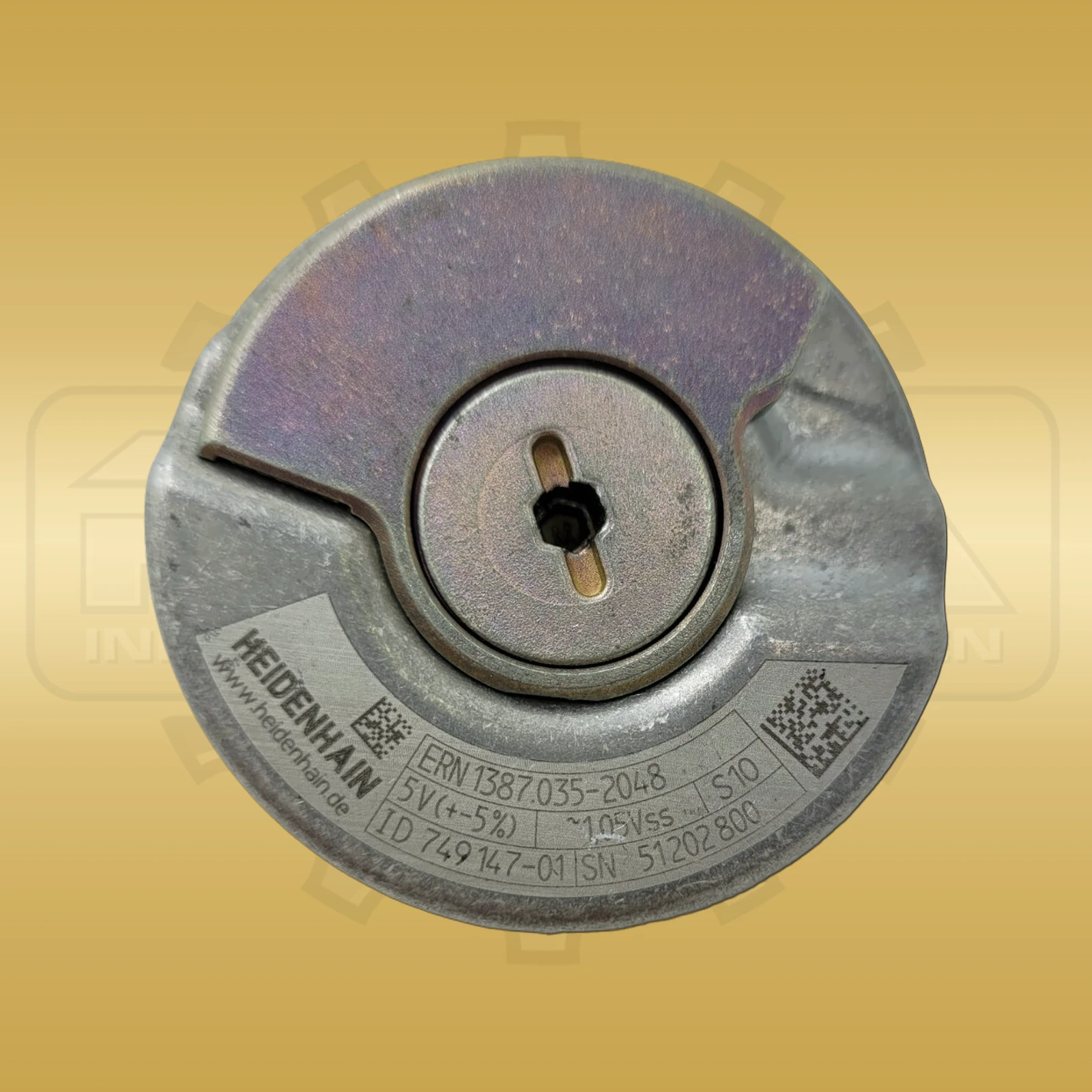

The Heidenhain 749 147-01 is an incremental rotary encoder from the ERN 1387.035 series for precise position and speed feedback on servo and spindle motors. Its complete model designation is ERN 1387.035-2048, combining the mechanical version with a line count of 2.048 per revolution. The encoder has integral bearings and is attached to the motor through a stator coupling. This construction accommodates permitted mechanical tolerances between the rotor and encoder housing without replacing accurate centring and installation to the manufacturer’s specifications. A 5 V DC supply is required. Electrical connection is provided by a straight, double-row 14-pin connector. The tapered shaft with a 9.25 mm functional diameter and a taper ratio of 1:10 is an essential mechanical identity feature. A maximum mechanical speed of 12,000 min⁻¹ is specified for this encoder version. The IP40 rating applies to the encoder in the installed system and requires a suitably protected motor or machine housing. In operation, the ERN 1387 supplies feedback for speed control, positioning and commutation in the associated drive system. For a like-for-like replacement, ID number 749 147-01, the complete ERN designation, line count, supply voltage, connector and pin assignment, shaft geometry and mounting distances must match. A different variant suffix may change the signal format or connector version and must not be treated as equivalent. Encoder evaluation, direction of rotation, reference position and mechanical runout must be checked against the drive and machine documentation after installation. This rotary encoder is particularly suitable for repair, retrofit and strategic spare-parts stocking when existing Heidenhain motor feedback must be restored without changing the control architecture.
Specifications
| Manufacturer | Heidenhain |
|---|---|
| Product series | ERN 1387 |
| Manufacturer / order / identification number | 749 147-01 |
| Model | ERN 1387.035-2048 |
| Device type | Incremental rotary encoder |
| Application | Motor feedback for position and speed |
| Bearings | Integral bearings |
| Mounting principle | Installation by stator coupling |
| Line count | 2,048 per revolution |
| Supply voltage | 5 V DC |
| Electrical connection | 14-pin connector |
| Shaft type | Tapered shaft |
| Functional diameter | 9.25 mm |
| Taper ratio | 1:10 |
| Maximum mechanical speed | 12,000 min⁻¹ |
| Degree of protection | IP40 according to EN 60529 |
