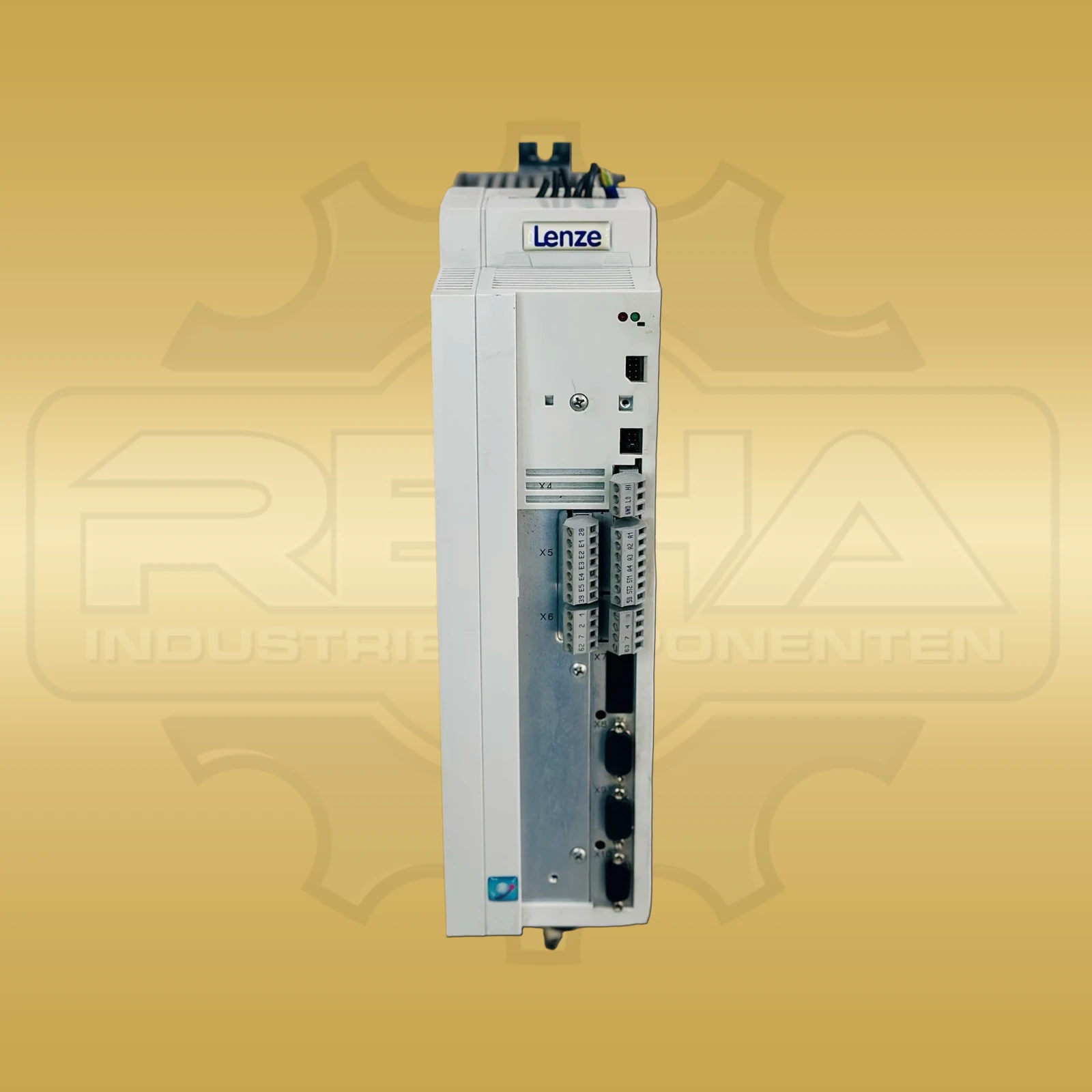

Lenze E82MV752_4B001
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
Vector control and U/f control are the control methods of the Lenze EVF9324-EV. The device belongs to the 9300 vector series and operates as a frequency inverter for electrical motor control. U/f control offers linear and quadratic characteristics. Vector control handles motor control as a separate control method. The complete type number identifies size 9324 in installation version E and functional version V. At 400 V, this size is assigned a typical motor power of 3 kW for a four-pole asynchronous motor. Under these mains conditions, the rated output current is 7 A at a switching frequency of 2 or 4 kHz. At 16 kHz, the corresponding current value is 5.2 A. The output frequency range extends from −300 to +300 Hz. Setpoints can be processed through digital commands and analogue signals. For this purpose, the series has two bipolar analogue inputs and two bipolar analogue outputs. Digital inputs and outputs complement the control terminals; a dedicated input handles controller inhibit. For drive functions with feedback, an incremental encoder input with TTL level and a signal frequency of up to 500 kHz is provided. A digital frequency input for TTL signals up to 500 kHz or HTL signals up to 200 kHz is also available. This connection can alternatively be used as an incremental encoder input with HTL level. The master frequency output provides TTL signals up to 500 kHz. The encoder and digital frequency connections are each implemented as nine-pin Sub-D sockets. The different interfaces separate analogue setpoints, digital control signals and motor movement feedback within drive control. The maximum mains voltage range is 320 to 528 V AC, and the mains frequency is 45 to 65 Hz.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Lenze |
|---|---|
| Product range | 9300 vector |
| Manufacturer/order/identification number | EVF9324-EV |
| Control methods | Vector control; linear or quadratic U/f characteristic |
| Typical motor power at 400 V | 3 kW (4-pole asynchronous motor) |
| Rated output current at 2/4 kHz | 7 A (400 V) |
| Rated output current at 16 kHz | 5.2 A (400 V) |
| Maximum mains voltage range | 320–528 V AC |
| Mains frequency | 45–65 Hz |
| Output frequency | −300 to +300 Hz |
| Analogue inputs | 2, bipolar |
| Analogue outputs | 2, bipolar |
| Incremental encoder input | TTL, up to 500 kHz, 9-pin Sub-D socket |
| Digital frequency input | TTL up to 500 kHz or HTL up to 200 kHz |
| Master frequency output | TTL, up to 500 kHz, 9-pin Sub-D socket |
| Dimensions | 250 × 97 × 384 mm (D × W × H) |
| Weight | 6 kg |
