Lenze 00401423
€100.00
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description

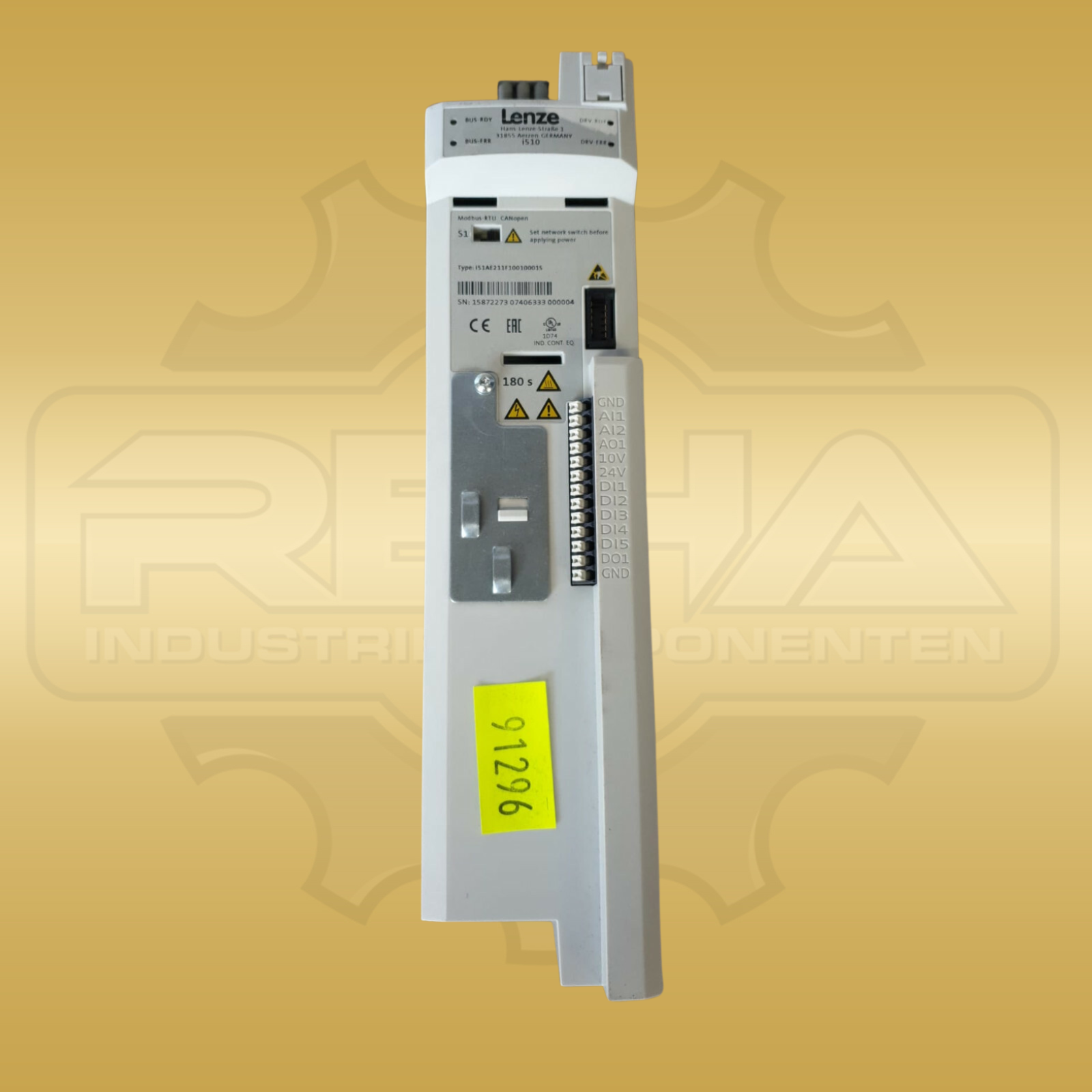

The Lenze I51AE111F10010001S is a compact i510 cabinet frequency inverter for controlled three-phase drives in industrial machinery and plant engineering. This exact version is intended for three-phase 400-/480-V supplies and provides 1.1 kW or 1.5 hp rated power. The permissible mains voltage range is 340 to 528 V at 45 to 65 Hz. The output supplies 0 to 400/480 V, 2.2 kVA apparent power and 3 A rated current at switching frequencies of 2, 4 or 8 kHz. At 16 kHz, the documented rated output current is 2 A. Lenze specifies a rated input current of 3.7 A without a mains choke and 2.5 A with a mains choke. The IP20 version incorporates an RFI filter and is designed for installation in a control cabinet. CANopen and Modbus RTU allow integration into existing control and fieldbus architectures. Five digital inputs, one digital output, two analog inputs, one analog output and one NO/NC relay are available for control signals. This allows common setpoint, enable, signalling and feedback functions to be connected without an additional basic I/O module. The i510 cabinet series is suitable for conveyor, travel, pump, fan and agitator drives, among other applications. The offered unit carries the complete type number I51AE111F10010001S, which identifies its power class, mains connection, IP20 enclosure, integrated filter and Basic I/O version with CANopen or Modbus. For replacement, the complete type number, mains and motor data, fieldbus configuration, control terminals, parameter backup and machine approvals must therefore match exactly. Before commissioning, motor ratings, ramps, protective functions and communication parameters must be transferred from the existing installation and checked professionally.
Specifications
| Manufacturer | Lenze |
|---|---|
| Product series | i510 cabinet |
| Manufacturer / order / identification number | I51AE111F10010001S |
| Device type | Frequency inverter for control-cabinet mounting |
| Rated power | 1.1 kW / 1.5 hp |
| Mains connection | 3/PE AC 400/480 V |
| Mains voltage range | 3/PE AC 340–528 V |
| Mains frequency | 45–65 Hz |
| Output voltage | 3 AC 0–400/480 V |
| Apparent output power | 2.2 kVA |
| Rated output current | 3 A at 2, 4 or 8 kHz |
| Rated output current at 16 kHz | 2 A |
| Rated input current without mains choke | 3.7 A |
| Rated input current with mains choke | 2.5 A |
| Degree of protection | IP20 |
| RFI filter | Integrated |
| Communication | CANopen and Modbus RTU |
| Digital inputs / outputs | 5 / 1 |
| Analog inputs / outputs | 2 / 1 |
| Relay output | 1 NO/NC relay |
Related products
Go to shop
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What mains voltage is the Lenze I51AE111F10010001S designed for?
This version operates on a three-phase 400-/480-V supply. The documented permissible mains voltage range is 340 to 528 V at 45 to 65 Hz.
Which communication protocols does this i510 cabinet support?
The Basic I/O version I51AE111F10010001S supports CANopen and Modbus RTU. Before replacement, the bus configuration, node address, wiring and parameter set must match the existing machine.
