Lenze 00401423
€100.00
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description

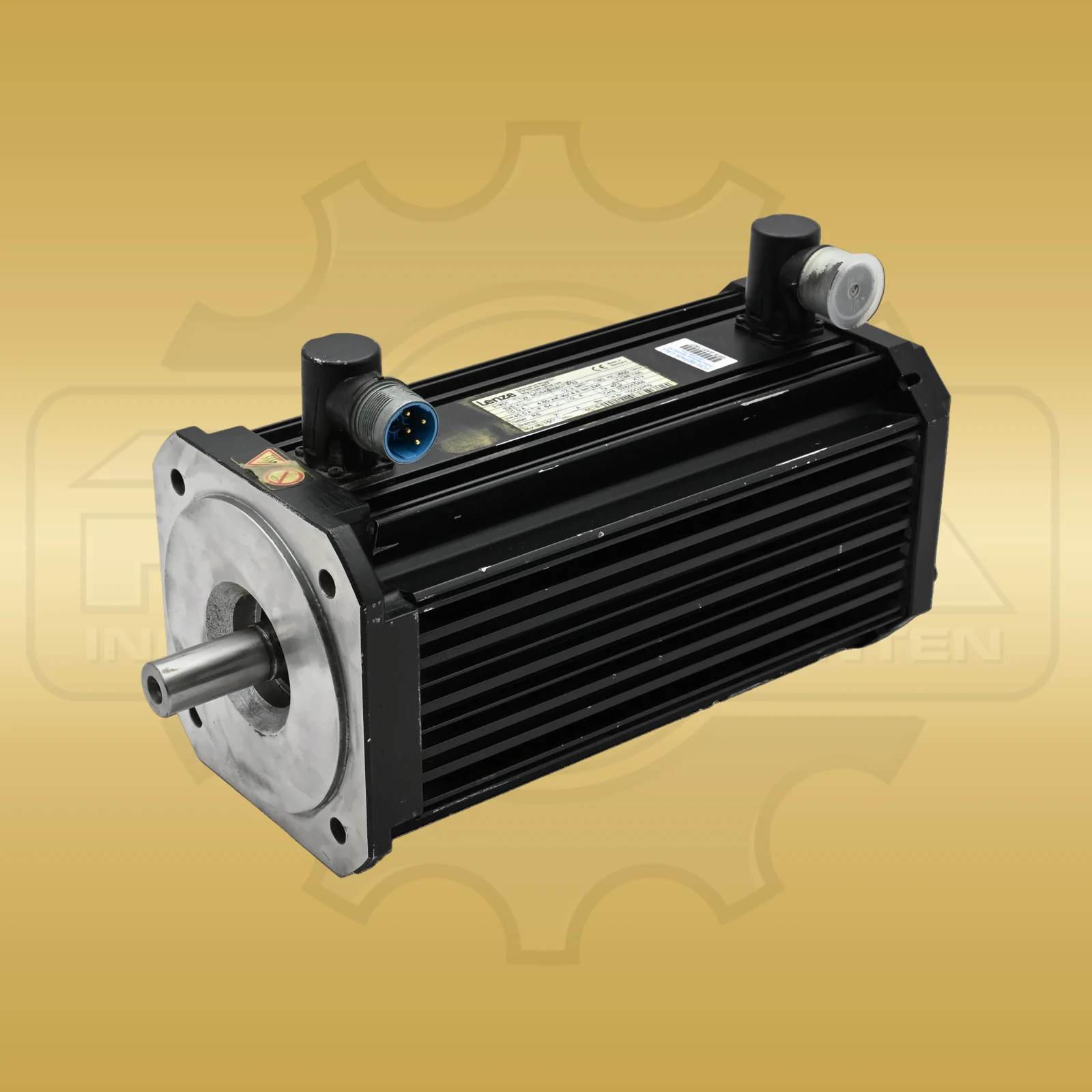

The Lenze MDSKSRS071-33 is a permanent-magnet synchronous servo motor from the MDSKS series for precise feed, positioning and production axes. The documented version belongs to size 071 and uses winding variant 33. It operates with 330 V AC, 6.7 A and an electrical frequency of 150 Hz. A power rating of 3.11 kW is specified at 3000 U/min. The motor is naturally cooled and therefore requires no separately mounted external fan. This supports compact integration into existing machine structures and reduces additional attachments. For the mechanical interface of size 071, a shaft diameter of 19 mm, a shaft length of 40 mm and a centering diameter of 130 mm are documented. The corresponding flange version has 9-mm mounting holes. These clearly defined dimensions are particularly important for replacement because the coupling, motor mount and axis alignment must continue to fit without modification. The MDSKSRS071-33 is therefore particularly suitable as a type-identical replacement motor in existing Lenze servo systems where power, speed, winding and mechanical design must be retained. The combination supports compact axes with high dynamics and clearly defined mechanical integration in production machines. The complete MDSKSRS071-33 variant sequence is essential for identification; adjacent MDSKS motors can differ in size, winding, feedback, brake, shaft or connection version. Before installation, check the complete type number, motor data, feedback, power and signal cables, connector pinout, shaft end, flange, coupling, direction of rotation, load profile and parameter settings of the installed servo controller against the machine documentation. Existing cable and controller limits must also match the electrical version.
Specifications
| Manufacturer | Lenze |
|---|---|
| Product series | MDSKS |
| Manufacturer/order/identification number | MDSKSRS071-33 |
| Device type | permanent-magnet synchronous servo motor |
| Frame size | 071 |
| Winding variant | 33 |
| Rated voltage | 330 V AC |
| Rated current | 6.7 A |
| Power | 3.11 kW |
| Speed | 3000 U/min |
| Frequency | 150 Hz |
| Cooling method | natural self-cooling |
| Shaft diameter | 19 mm |
| Shaft length | 40 mm |
| Centering diameter | 130 mm |
| Flange holes | 9 mm |
Related products
Go to shop
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the performance data of the Lenze MDSKSRS071-33?
The documented data is 3.11 kW at 3000 U/min as well as 330 V AC, 6.7 A and 150 Hz. The motor uses natural self-cooling.
What is important when replacing the MDSKSRS071-33?
Check the complete type number, winding, feedback, brake, shaft, flange, coupling, connections, cables and parameter settings of the existing Lenze servo controller.
