Product description

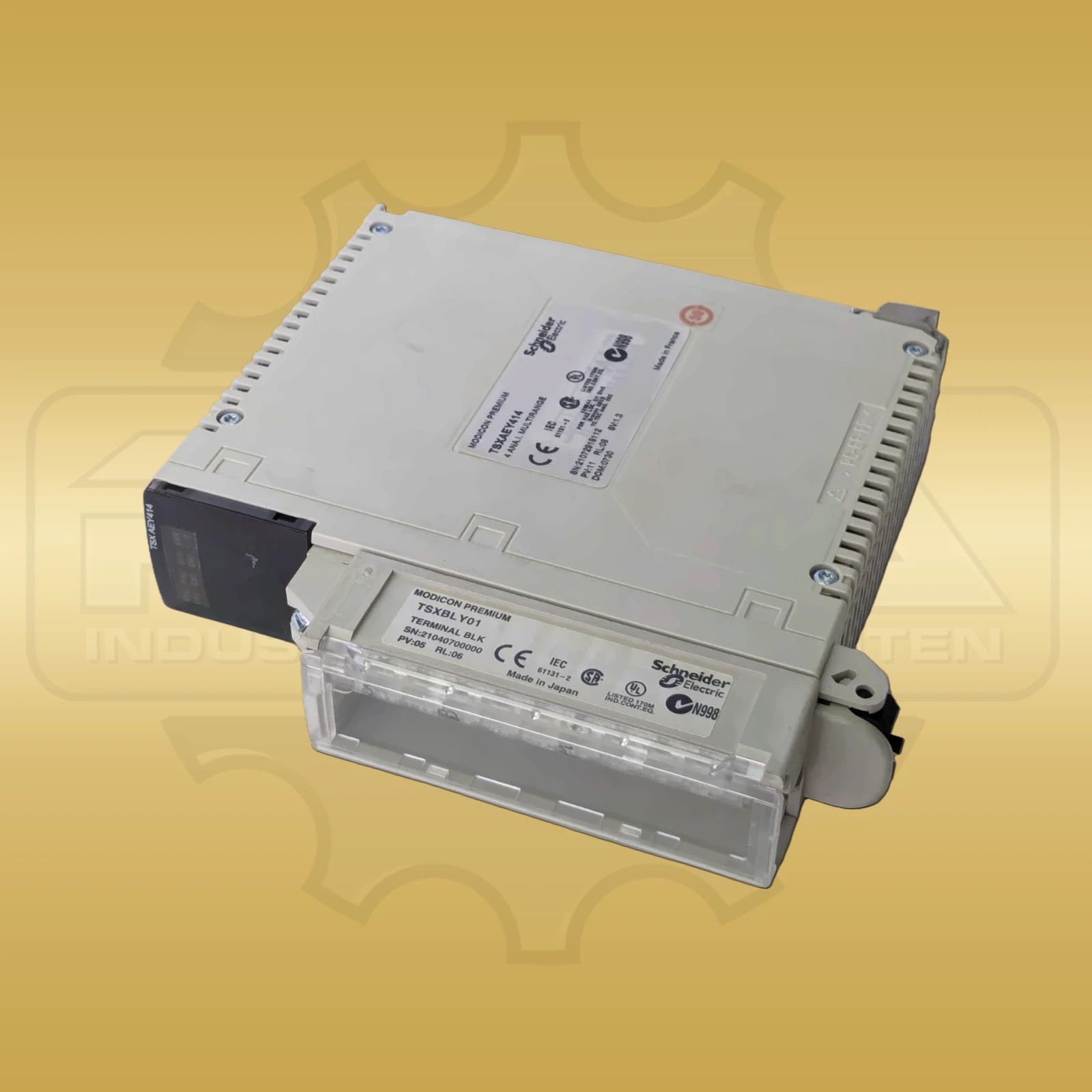

Schneider Electric TSXAEY414 is a multirange analog input module for the Modicon Premium automation platform. Its four analog inputs are galvanically isolated from one another and can be configured channel by channel. Supported voltage signals include ±10 V, 0 to 10 V, ±5 V, 0 to 5 V and 1 to 5 V. Current ranges are 0 to 20 mA and 4 to 20 mA with an external 250 Ω shunt. For temperature and resistance measurement, the module handles Pt100, Pt1000 and Ni1000 sensors in two- or four-wire arrangements, resistance ranges up to 400 Ω or 3850 Ω, and thermocouple types B, E, J, K, L, N, R, S, T and U. The A/D converter operates at 16 bits and acquisition of all four channels takes 550 ms. Cold-junction compensation is either automatic internally or external through a class A Pt100 sensor on channel 0. Typical backplane consumption is 660 mA at 5 V DC. The separately available TSX BLY 01 screw terminal block is required. Complete outside dimensions are 150 × 35 × 140 mm in length × width × height order. Device weight is 0.30 kg. The defining configuration combines the exact type number, channel assignment, measuring ranges, wiring, cold-junction compensation and Control Expert configuration.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Schneider Electric |
|---|---|
| Product series | Modicon Premium |
| Manufacturer/order/identification number | TSXAEY414 |
| Device type | multi-range analog input module |
| Analog input channels | 4, mutually isolated |
| Input architecture | channel-by-channel configurable multi-range acquisition |
| Voltage ranges | ±10 V, 0–10 V, ±5 V, 0–5 V and 1–5 V |
| Current ranges | 0–20 mA and 4–20 mA with 250-Ω shunt |
| Thermocouple types | B, E, J, K, L, N, R, S, T and U |
| Temperature sensors | Pt100, Pt1000 and Ni1000 in two- or four-wire configuration |
| Resistance ranges | 0–400 Ω and 0–3850 Ω |
| Millivolt range | −13 to +63 mV |
| A/D conversion | 16 bits, 0–65535 steps |
| Acquisition cycle | 550 ms for 4 channels |
| Channel-to-bus and ground isolation | 1780 V rms |
| Cold-junction compensation | automatic internal or external with class A Pt100 on channel 0 |
| Maximum power dissipation | 4.7 W |
| Backplane bus current draw | typically 660 mA at 5 V DC |
| Dimensions | 150 × 35 × 140 mm (L × W × H) |
| Weight | 0.30 kg |
