Siemens 1FK6063-6AF71-1AH0
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
Siemens 1FK6060-6AF71-1TA0 is a permanent-magnet synchronous servo motor from the 1FK6 series. The six-pole version delivers 6.0 Nm torque at a thermal rating of 100 K and reaches 3000 U/min. The motor uses natural cooling and is built in IM B5 construction. Mounting positions are V1 and V3. The specific TA0 version uses a two-pole resolver with one pole pair for feedback. The shaft end has a feather key and tolerance N. A holding brake is not fitted. Power and signal connections are separate, and the connectors rotate through 270°. IP64 defines the enclosure protection for this complete order number. Encoder, shaft, brake and connector arrangement therefore distinguish it from adjacent 1FK6 versions. Keyed shaft, resolver and missing holding brake are jointly relevant to mechanical and electrical identification. The complete servo motor is 250 mm long, 130 mm wide and 165 mm high. This produces complete outside dimensions of 250 × 130 × 165 mm. Product weight is 8.5 kg. Dimensions and weight refer to the complete servo motor, not to an individually offered rotor or separate motor housing. The complete assembly includes housing, shaft, connectors and resolver.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | SIMOTICS S / 1FK6 |
| Manufacturer / order / identification number | 1FK6060-6AF71-1TA0 |
| Device type | permanent-magnet synchronous servo motor |
| Number of poles | 6 |
| Torque | 6.0 Nm at 100 K |
| Speed | 3000 U/min |
| Cooling method | natural self-cooling |
| Mounting design | IM B5 |
| Documented mounting positions | V1 and V3 |
| Encoder system | resolver, 2-pole, pole-pair number 1 |
| Shaft end | shaft with key |
| Shaft tolerance | version N |
| Holding brake | without holding brake |
| Connection technology | power and signal connectors |
| Connector orientation | rotatable through 270° |
| Protection rating | IP64 |
| Motor type | three-phase AC servo motor |
| Dimensions | 250 × 130 × 165 mm (L × W × H) |
| Weight | 8.5 kg |
Related products
Go to shop

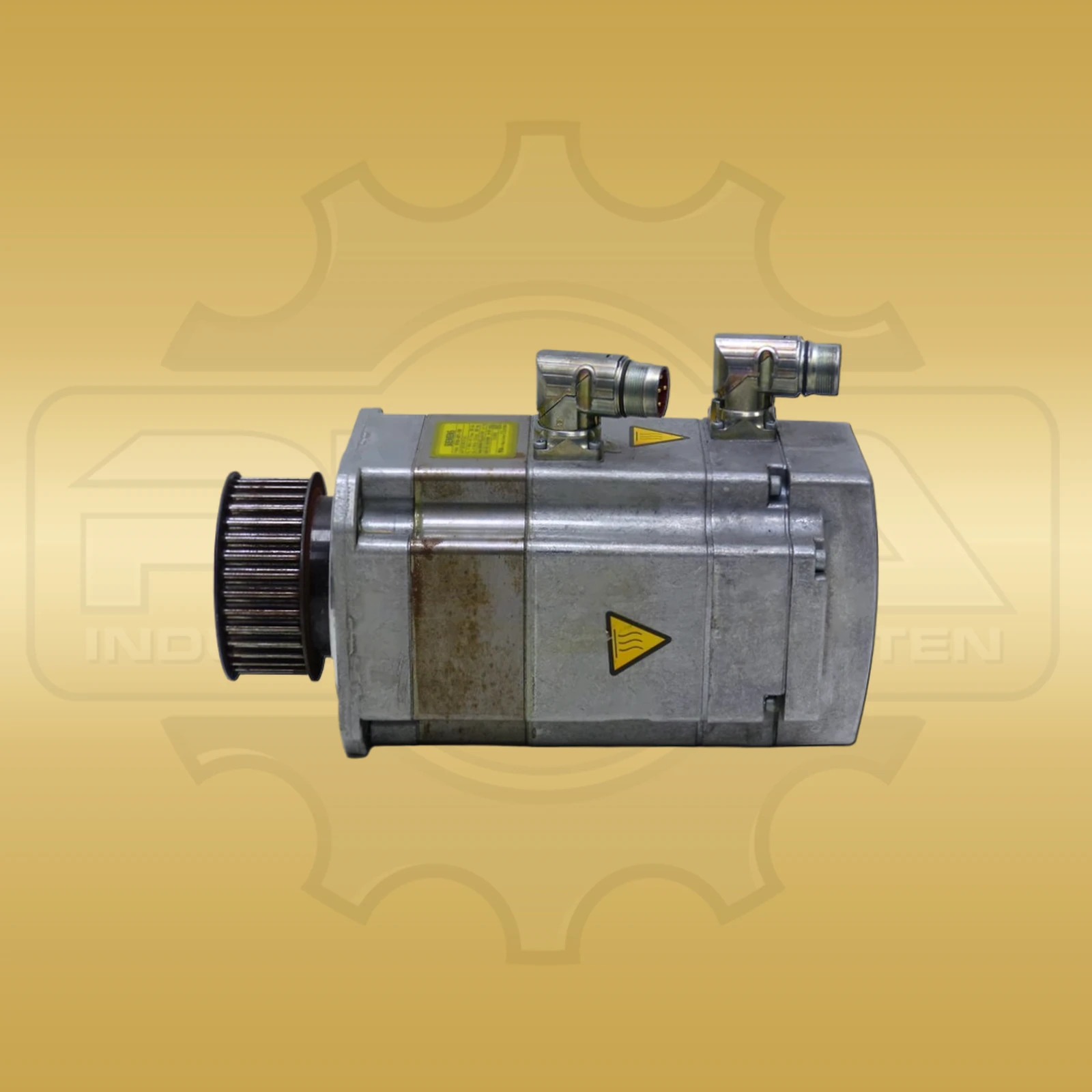

Siemens 1FK7060-5AF71-1EH0
€1,040.00
Siemens 1FK6063-6AF71-1EB0
€1,490.00
Siemens 1FK6063-6AF71-1AG0
€1,860.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the dimensions of Siemens 1FK6060-6AF71-1TA0?
Complete outside dimensions of the servo motor are 250 × 130 × 165 mm.
What is the weight of Siemens 1FK6060-6AF71-1TA0?
The complete servo motor weighs 8.5 kg.
What applies if an item develops a defect within 14 days?
For the condition categories “Used, removed from an installation” and “New, old stock”, the contractual 14-day right of return in the event of a defect applies. The defect must occur within 14 calendar days after delivery and be reported in text form within the same period.
In particular, the REHA tamper-evident seal must remain fully intact and our RMA approval is required before return. In an accepted case, we decide between replacement and refund. Details in Section 11 of the Terms.
Which shipping methods and delivery times are available?
The shipping method, shipping cost and estimated delivery time are confirmed for the specific order. Depending on the item, destination and urgency, we can check parcel, express or freight shipping as well as collection.
A delivery date is binding only if we expressly confirm it as binding.
Which payment terms apply?
The payment terms stated in the checkout or order confirmation apply. Depending on the order and customer, payment is made in advance or against invoice.
International deliveries and deliveries to new customers are generally made against advance payment unless we expressly confirm another payment arrangement.
Can I return an item ordered incorrectly or found incompatible?
No. There is no general B2B right of return, exchange, cancellation or withdrawal. Incorrect or duplicate orders and a lack of suitability or compatibility with the customer’s installation are not covered by the contractual 14-day right of return in the event of a defect. Details in Section 12 of the Terms.
Can I request individual pricing for several items?
You may request an individual quotation for several items or larger quantities. We then check availability and pricing for the specific requirement; there is no entitlement to a quantity discount. Open the quick enquiry.
Do you also purchase industrial spare parts?
Yes. You can offer us automation and drive components for purchase. Please provide complete type numbers, quantities, condition details and photographs where possible.
After review, we will tell you whether a purchase is possible and on which terms. Learn more about selling industrial stock.
