Siemens 1FT5064-0AC01-2-Z
€150.00
Shipping information
Do you require an expedited shipping option for this item?
Please contact us!
Product description
The Siemens 1FT5064-0AG01-2-Z belongs to the 1FT5 motor series and is a permanent-magnet AC servomotor for speed-controlled and position-controlled drive axes. The documented version uses a 210 V DC link and has a rated speed of 4000 U/min. Its standstill torque is 5.5 Nm at a winding overtemperature of 100 K. These technical details place the motor within the compact 1FT5064 frame size. Feedback is provided by a tachogenerator and rotor position encoder; motor power and the signal system use a terminal box and signal connector respectively. The self-cooled construction has no attached forced-ventilation unit. IP64 protection is documented for the enclosure. The mechanical version follows the IM B5 flange mounting arrangement and the Siemens documentation also lists the IM V1 and IM V3 mounting positions. This frame size has a shaft height of 63 mm, a shaft diameter of 19 mm and a flange centring diameter of 95 mm. The associated Siemens dimension drawing specifies a total length of 275 mm and a square flange outline of 115 × 115 mm for the 1FT5064. These dimensions define the mechanical identification data. Electrical ratings, feedback and connector orientation are additional identity characteristics. The “-Z” suffix denotes an order-specific special version; the exact options cannot be derived without the complete additional codes. The full order number, all additional nameplate markings, shaft and flange dimensions, connector orientation and feedback system together identify the required motor variant within the 1FT5 series.

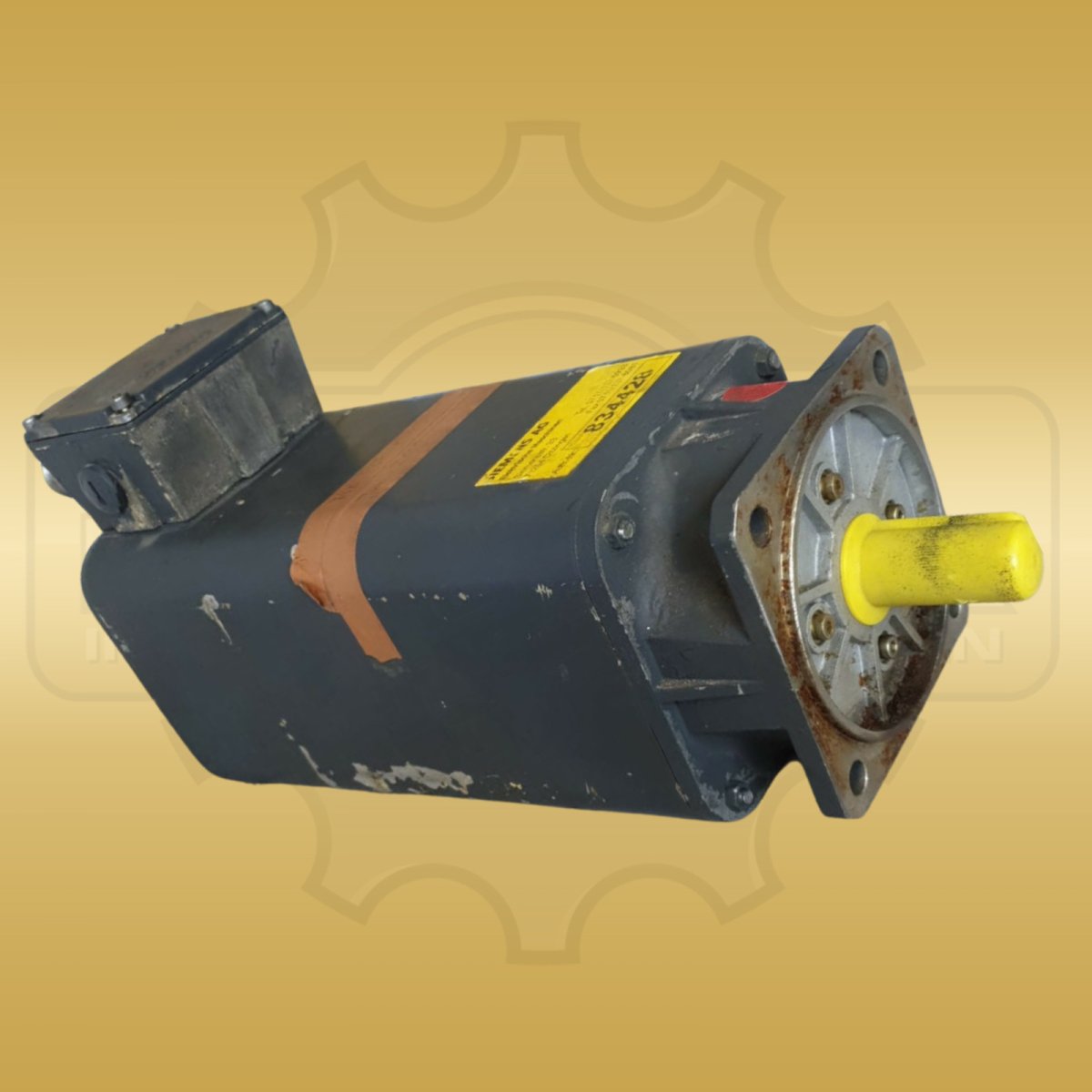

Example image – The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
| Manufacturer | Siemens |
|---|---|
| Product series | 1FT5 |
| Manufacturer/order/identification number | 1FT5064-0AG01-2-Z |
| Device type | AC servomotor |
| Motor principle | Permanent-magnet synchronous servomotor |
| DC-link voltage | 210 V DC |
| Rated speed | 4000 U/min |
| Standstill torque | 5.5 Nm at 100 K |
| Cooling method | Self-cooled, non-ventilated |
| Degree of protection | IP64 |
| Mounting arrangement | IM B5 (IM V1, IM V3) |
| Feedback | Tachogenerator and rotor position encoder |
| Connection version | Terminal box and signal connector |
| Shaft height | 63 mm |
| Flange centring | Ø 95 mm |
| Shaft diameter | 19 mm |
| Dimensions | 115 × 115 × 275 mm |
| Weight | approx. 10 kg |
Related products
Go to shop

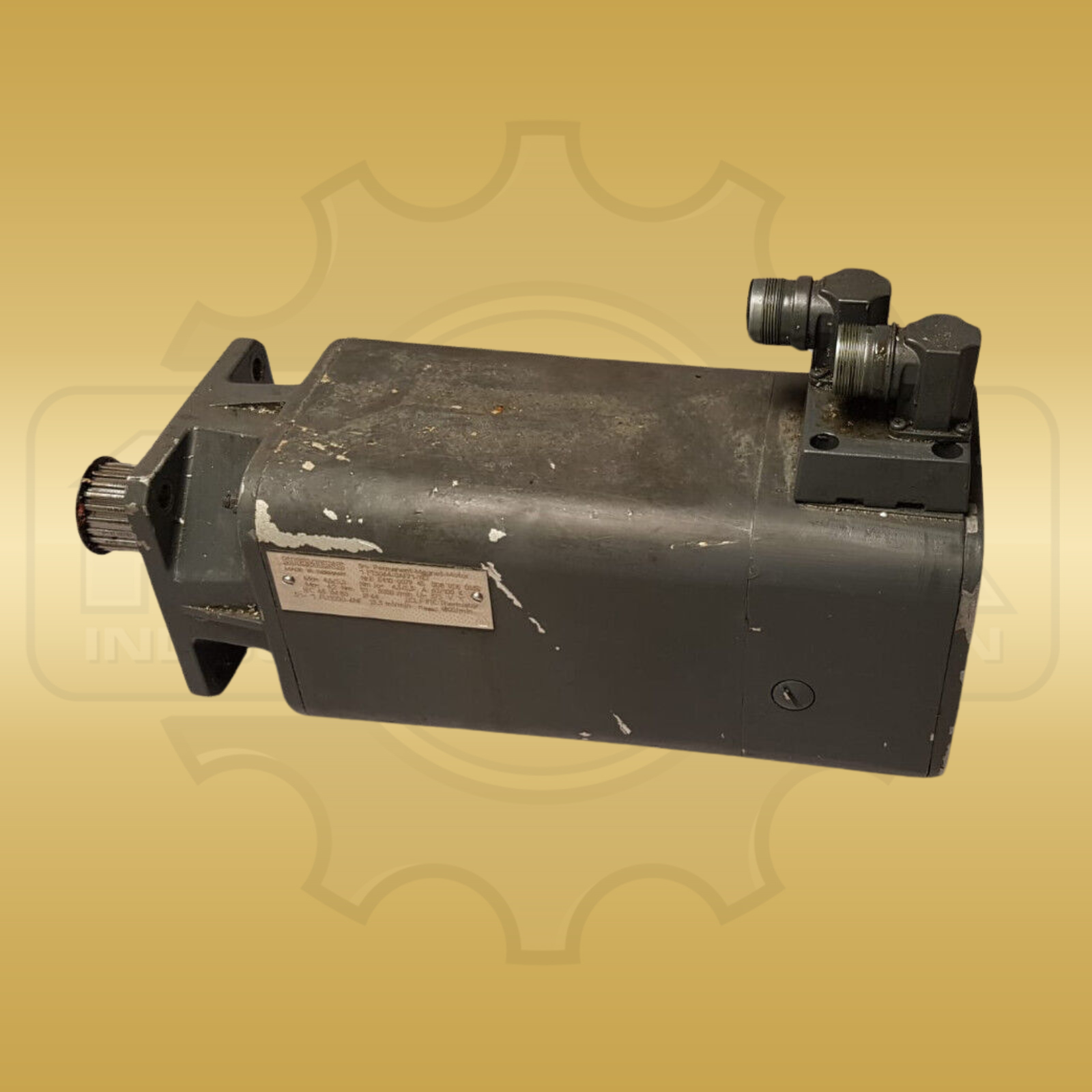

Siemens 1FT5064-0AF71-1
€290.00
Siemens 1FT5066-0AC71-2-Z
Price on request
Siemens 1FT5062-0AF71-1-Z
€1,210.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
Which details identify the Siemens 1FT5064-0AG01-2-Z variant?
The identifying data comprise the complete order number including every Z option marking on the nameplate, the connection version, feedback system, shaft dimensions, flange dimensions and mounting dimensions. The -Z suffix alone does not describe the complete special configuration.
What are the basic mechanical dimensions of the 1FT5064-0AG01-2-Z?
The Siemens dimension drawing assigns the 1FT5064 a shaft height of 63 mm. It documents a 115 × 115 mm flange outline, a total length of 275 mm, a flange centring diameter of 95 mm and a shaft diameter of 19 mm.
What applies if an item develops a defect within 14 days?
For the condition categories “Used, removed from an installation” and “New, old stock”, the contractual 14-day right of return in the event of a defect applies. The defect must occur within 14 calendar days after delivery and be reported in text form within the same period.
In particular, the REHA tamper-evident seal must remain fully intact and our RMA approval is required before return. In an accepted case, we decide between replacement and refund. Details in Section 11 of the Terms.
Which shipping methods and delivery times are available?
The shipping method, shipping cost and estimated delivery time are confirmed for the specific order. Depending on the item, destination and urgency, we can check parcel, express or freight shipping as well as collection.
A delivery date is binding only if we expressly confirm it as binding.
Which payment terms apply?
The payment terms stated in the checkout or order confirmation apply. Depending on the order and customer, payment is made in advance or against invoice.
International deliveries and deliveries to new customers are generally made against advance payment unless we expressly confirm another payment arrangement.
Can I return an item ordered incorrectly or found incompatible?
No. There is no general B2B right of return, exchange, cancellation or withdrawal. Incorrect or duplicate orders and a lack of suitability or compatibility with the customer’s installation are not covered by the contractual 14-day right of return in the event of a defect. Details in Section 12 of the Terms.
Can I request individual pricing for several items?
You may request an individual quotation for several items or larger quantities. We then check availability and pricing for the specific requirement; there is no entitlement to a quantity discount. Open the quick enquiry.
Do you also purchase industrial spare parts?
Yes. You can offer us automation and drive components for purchase. Please provide complete type numbers, quantities, condition details and photographs where possible.
After review, we will tell you whether a purchase is possible and on which terms. Learn more about selling industrial stock.
