Siemens 1FT7046-5AF71-1CA0
€2,930.00
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description
The Siemens 1FT6064-6AC71-4AG0 is a permanent-magnet synchronous servo motor from the 1FT6 series for precise feed, positioning and machine axes. The exact -6AC71 winding variant uses natural cooling and has a rated speed of 2,000 min⁻¹. The Siemens configuration manual specifies six poles, 8.0 Nm rated torque at 100 K and 3.8 A rated current for this version. Stall torque is 7.9 Nm at 60 K and 9.5 Nm at 100 K, with corresponding stall currents of 3.4 A and 4.2 A. At the optimum operating point, the motor delivers 1.68 kW at 2,000 min⁻¹. Short-term limiting values are 38 Nm and 23 A, while the maximum permissible mechanical speed is 9,100 min⁻¹. The torque constant of 2.26 Nm/A, winding resistance of 2.93 Ohm at 20 °C and rotating-field inductance of 28 mH are also relevant to electrical design. These characteristics determine the motor's behavior with the existing SIMODRIVE or MASTERDRIVES system and must match the axis parameters. The full order number 1FT6064-6AC71-4AG0 also identifies the specific connection, encoder, shaft and brake configuration. According to the ordering code, the offered motor has a plain shaft and no holding brake. Before installation, the complete order number, encoder connection, connector outlet, shaft coupling, flange, motor cable and assigned converter must be compared with the existing machine. Neighboring 1FT6064 versions may use different speeds, encoders, shaft ends or brakes despite sharing the same frame size. This used servo motor is therefore particularly suitable as a like-for-like replacement where the axis mechanics, power module and saved controller data are to remain unchanged.
Specifications
| Manufacturer | Siemens |
|---|---|
| Product series | 1FT6 |
| Manufacturer / order / identification number | 1FT6064-6AC71-4AG0 |
| Motor type | Permanent-magnet synchronous servo motor |
| Cooling method | Natural cooling |
| Rated speed | 2,000 min⁻¹ |
| Number of poles | 6 |
| Rated torque | 8.0 Nm at 100 K |
| Rated current | 3.8 A |
| Stall torque | 7.9 Nm at 60 K; 9.5 Nm at 100 K |
| Stall current | 3.4 A at 60 K; 4.2 A at 100 K |
| Power at optimum operating point | 1.68 kW at 2,000 min⁻¹ |
| Maximum mechanical speed | 9,100 min⁻¹ |
| Maximum torque | 38 Nm |
| Maximum current | 23 A |
| Torque constant | 2.26 Nm/A |
| Winding resistance at 20 °C | 2.93 Ohm |
| Rotating-field inductance | 28 mH |
| Shaft end | Plain shaft |
| Holding brake | Without |
Related products
Go to shop
Siemens 6RA2178-6DS20-0
€5,450.00

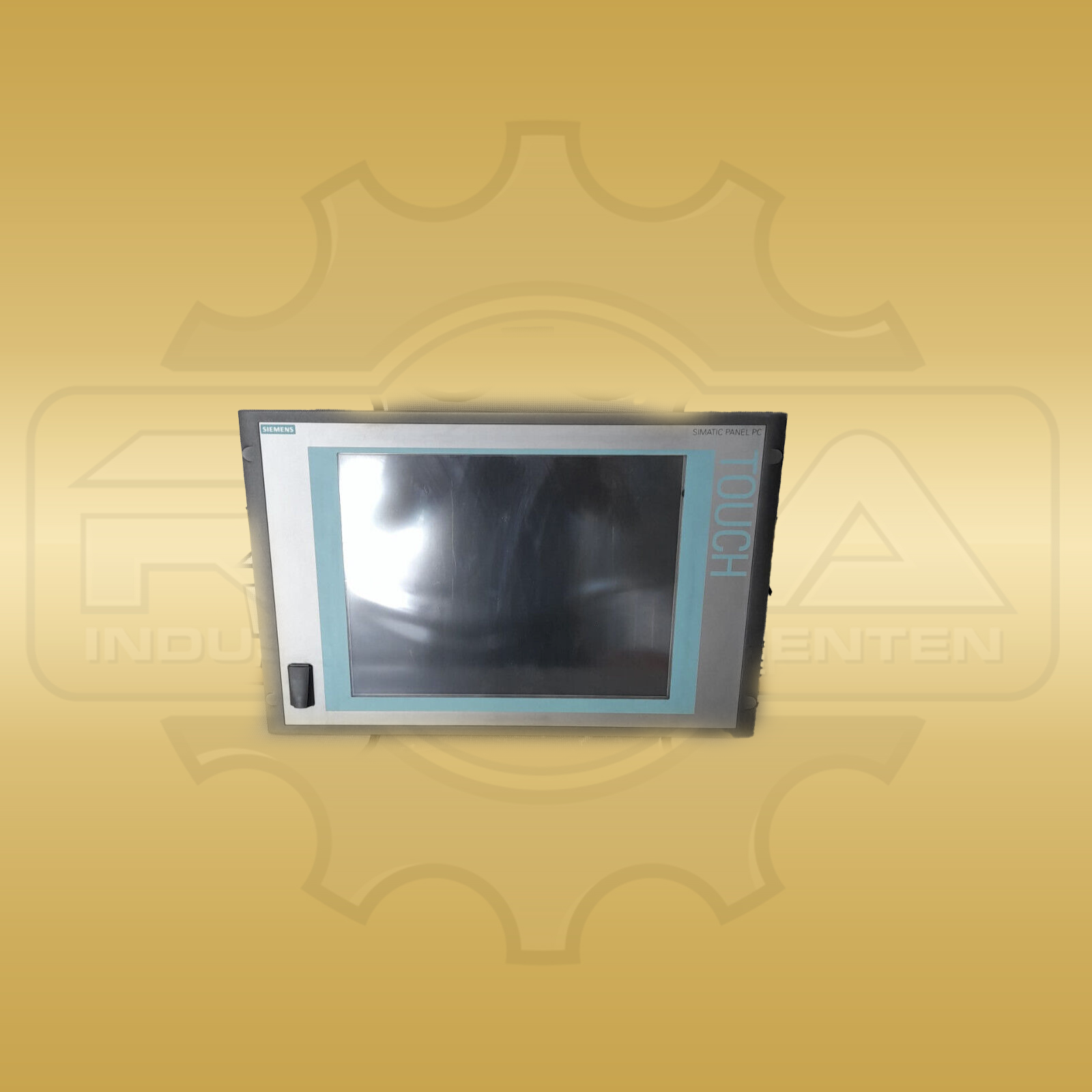

Siemens 6AV7853-0AH20-3HA0
€5,380.00

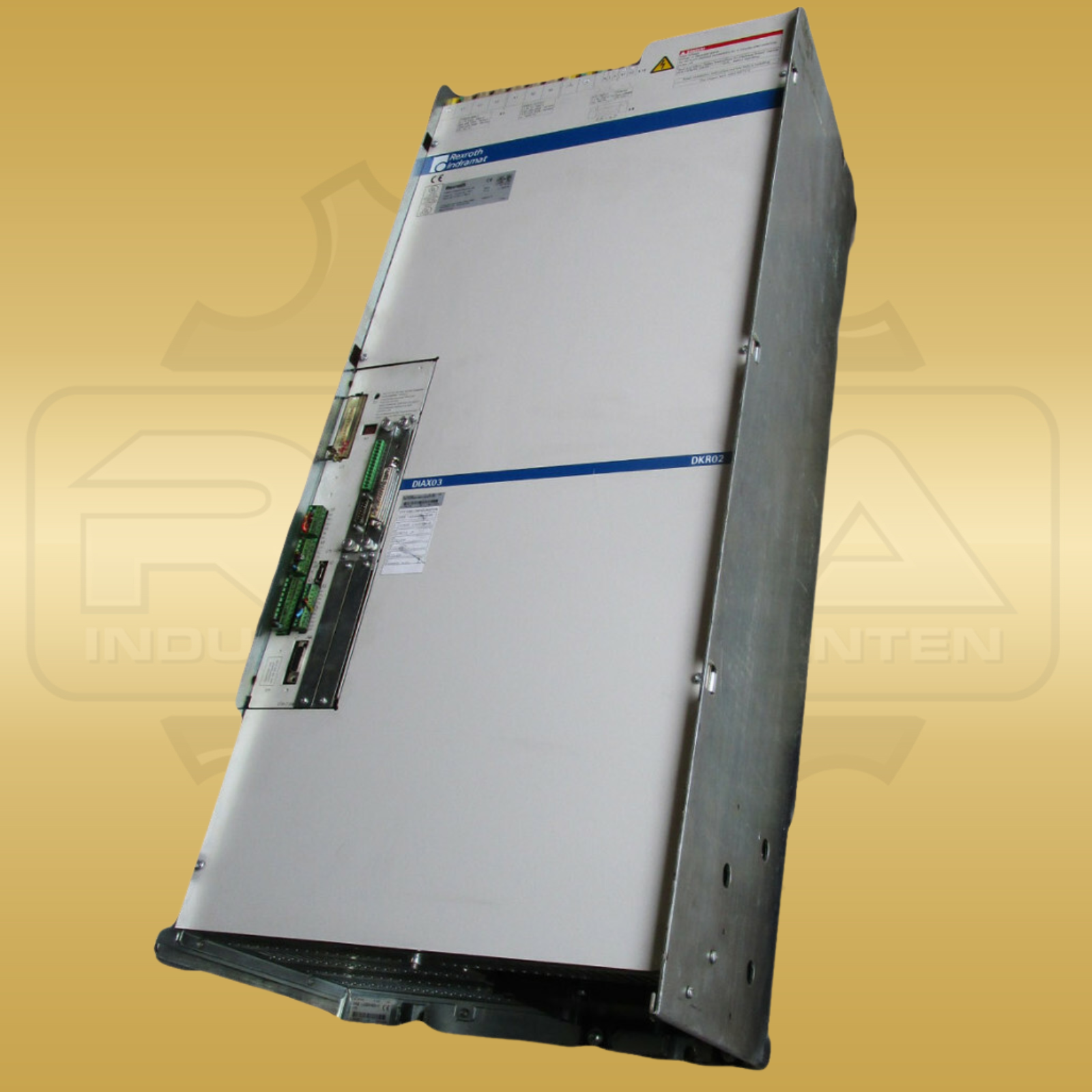

Bosch Rexroth DKR02.1-W300B-BE12-01-FW
€2,200.00
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the rated values of the Siemens 1FT6064-6AC71-4AG0?
For the exact -6AC71 winding variant, Siemens specifies 2,000 min⁻¹ rated speed, 8.0 Nm rated torque at 100 K and 3.8 A rated current.
What must match when replacing this 1FT6 servo motor?
The complete order number, encoder, connector outlet, plain shaft, absence of a holding brake, flange, motor cable, converter assignment and axis parameters must match the machine.
