Product description

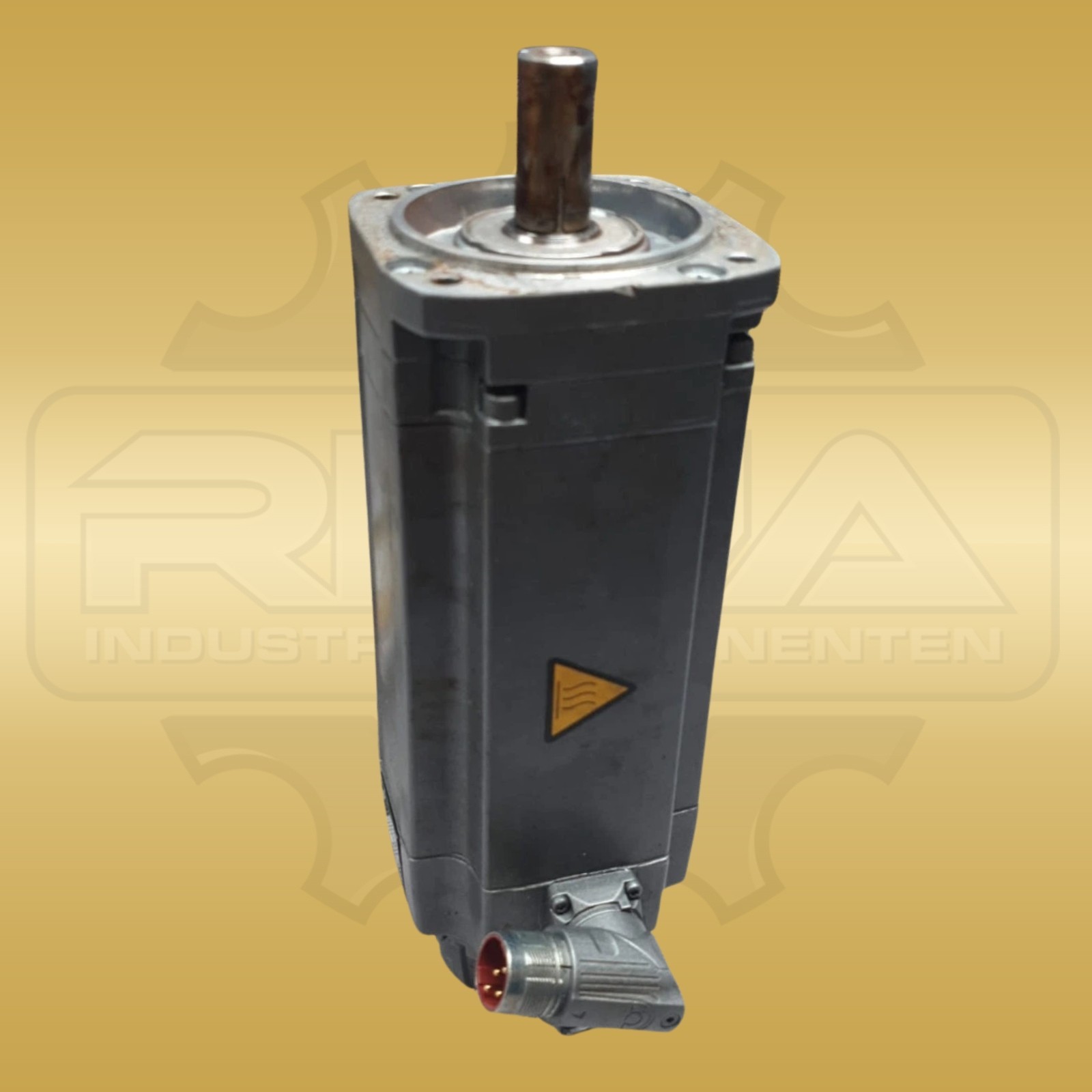

Siemens 1FT7046-5AF71-1CA0 identifies a permanent-magnet synchronous servo motor in the SIMOTICS S-1FT7 range. Rated speed is 3,000 min⁻¹. At 100 K, rated torque is 5.6 Nm; rated power is 1.8 kW and rated current is 3.50 A. Static torque is 6.0 Nm at 60 K and 7.0 Nm at 100 K. The complete manufacturer/order/identification number binds these electrical and mechanical values to this version. Limit values are 31.0 Nm maximum torque, 19.00 A maximum current and 9,000 min⁻¹ maximum mechanical speed. Maximum speed in inverter operation is 5,200 min⁻¹. The six-pole motor has an efficiency of 92 %. Rotor moment of inertia is 7.52 kgcm², torque constant is 1.75 Nm/A and rotating-field inductance is 11.0 mH. Natural cooling, mounting arrangement IM B5 and positions IM V1 and IM V3 belong to the mechanical base version. Flange 1 follows the geometry of the 1FT6 series; this CA0 version has no holding brake. Complete external dimensions comprise 120 mm maximum width across the flange, 153 mm maximum height including the connector contour and 299 mm overall depth including the shaft end. External dimensions are therefore 120 × 153 × 299 mm in width × height × depth order. Motor net weight is 9.3 kg. Dimensions and weight refer to the individual unit without transport packaging. Keyed shaft and rotatable power connector also belong to the mechanical equipment. Rated values, limits, flange geometry, dimensions and weight are the central technical values of this exact motor version.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | SIMOTICS S-1FT7 |
| Manufacturer/order/identification number | 1FT7046-5AF71-1CA0 |
| Motor type | Permanent-magnet synchronous servo motor |
| Rated speed | 3,000 min⁻¹ |
| Rated power | 1.8 kW |
| Rated torque | 5.6 Nm at 100 K |
| Rated current | 3.50 A |
| Static torque | 6.0 Nm at 60 K; 7.0 Nm at 100 K |
| Maximum torque | 31.0 Nm |
| Maximum current | 19.00 A |
| Maximum mechanical speed | 9,000 min⁻¹ |
| Maximum inverter speed | 5,200 min⁻¹ |
| Number of poles | 6 |
| Efficiency | 92 % |
| Rotor moment of inertia | 7.52 kgcm² |
| Torque constant | 1.75 Nm/A |
| Rotating-field inductance | 11.0 mH |
| Dimensions | 120 × 153 × 299 mm (W × H × D) |
| Weight | 9.3 kg |
