Siemens 1FT6086-1AF71-3AH1
€790.00
excl. VAT
Product condition:
Used, removed from an installation
The item comes from dismantled equipment. We have not carried out an electrical inspection or a comprehensive operational check. Signs of age, use, installation or removal may be present. 14-day right of return in the event of a defect. See Terms and Conditions
- Available · Ships in approx. 3–6 business days
- Urgent? Faster options such as direct or express shipping are often possible. Please state your required date when you request a quote or order.
Do you have any questions?
Personal service
We are happy to help with processing, shipping or individual quotations. Simply contact us:
Online and available Currently unavailable
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

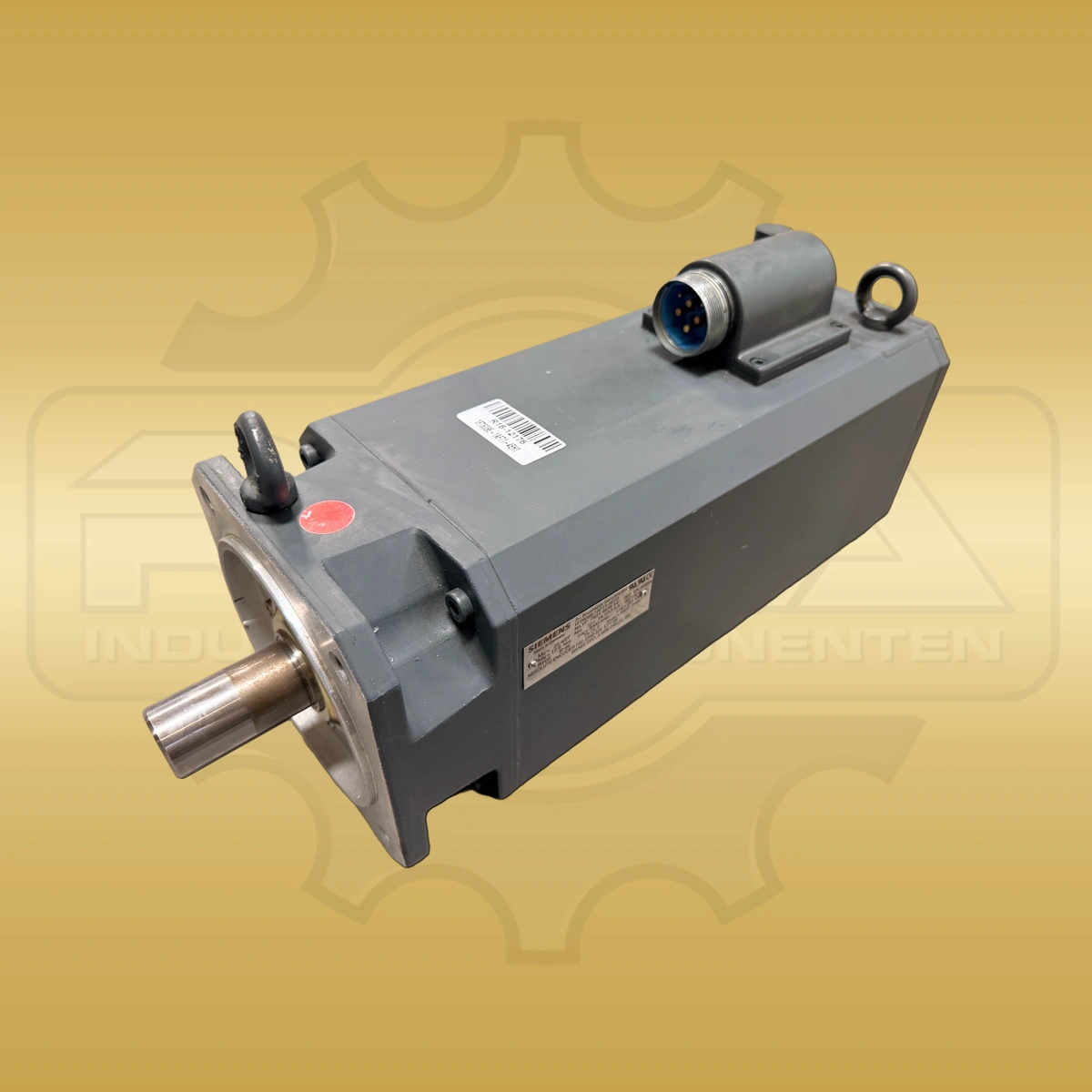

An integrated holding brake characterizes the version of the Siemens 1FT6086-1AF71-3AH1. The brake is specified for 24 V DC and has a power consumption of 22.3 W. These electrical data refer to the holding brake and are to be distinguished from the operating data of the motor. The synchronous servo motor belongs to the SIMOTICS S family and to the 1FT6 series. It is naturally cooled by natural air cooling and has degree of protection IP65. The mechanical type of construction is IM B5; IM V1 and IM V3 are additionally listed. These type of construction data describe the flange version and the associated mounting positions of the motor. The power connection and the encoder connection are designed as plug-in connections. Both connectors have an axial outlet direction on the non-drive end, marked as BS in the technical designation. For an order of this motor with axial connector outlet, order-related shipping from Germany to the United States and other international destinations applies. An incremental encoder of type I-2048 is provided for feedback. It delivers sin/cos signals with 1 Vpp and 2048 signal periods per revolution; the encoder resolution and the signal amplitude are separate technical data. The rated speed is 3000 min⁻¹, while 4400 min⁻¹ is specified as the maximum speed. The torque values also refer to different operating data: the rated torque is 18.5 Nm; the additional torque value is 27 Nm at 100 K. For the specific variant, the brake version, the encoder system, the degree of protection and the connector direction are thus established as distinguishable equipment features alongside the speed. The stated external dimensions are 160 mm width, 200 mm height and 450 mm length. The stated weight is 29,001 kg.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | SIMOTICS S / 1FT6 |
| Manufacturer / order / ident number | 1FT6086-1AF71-3AH1 |
| Device type | Synchronous servo motor |
| Torque value | 27 Nm at 100 K |
| Rated speed | 3000 min⁻¹ |
| Maximum speed | 4400 min⁻¹ |
| Rated torque | 18.5 Nm |
| Cooling method | Natural cooling / natural air cooling |
| Degree of protection | IP65 |
| Type of construction | IM B5 (IM V1, IM V3) |
| Encoder system | Incremental encoder I-2048 |
| Encoder signal | Sin/cos, 1 Vpp |
| Encoder resolution | 2048 signal periods per revolution |
| Connection | Power and signal connectors |
| Connector outlet direction | Axial on the non-drive end (BS) |
| Holding brake | Available |
| Brake voltage | 24 V DC |
| Dimensions | 160 × 200 × 450 mm (W × H × L) |
| Weight (reference type not specified) | 29,001 kg |
Product status and export data
| Product status (manufacturer) | Discontinued since 01/10/2015 |
|---|---|
| Commodity code | 85015220 |
| Country of origin | Germany |
| Export list number (AL) | N |
Manufacturer information for order number 1FT6086-1AF71-3AH1, as of 20/10/2026. Not a statement about the individual unit supplied; does not replace an export control review.
