Siemens 6SE6400-3CC00-4AB3
€140.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

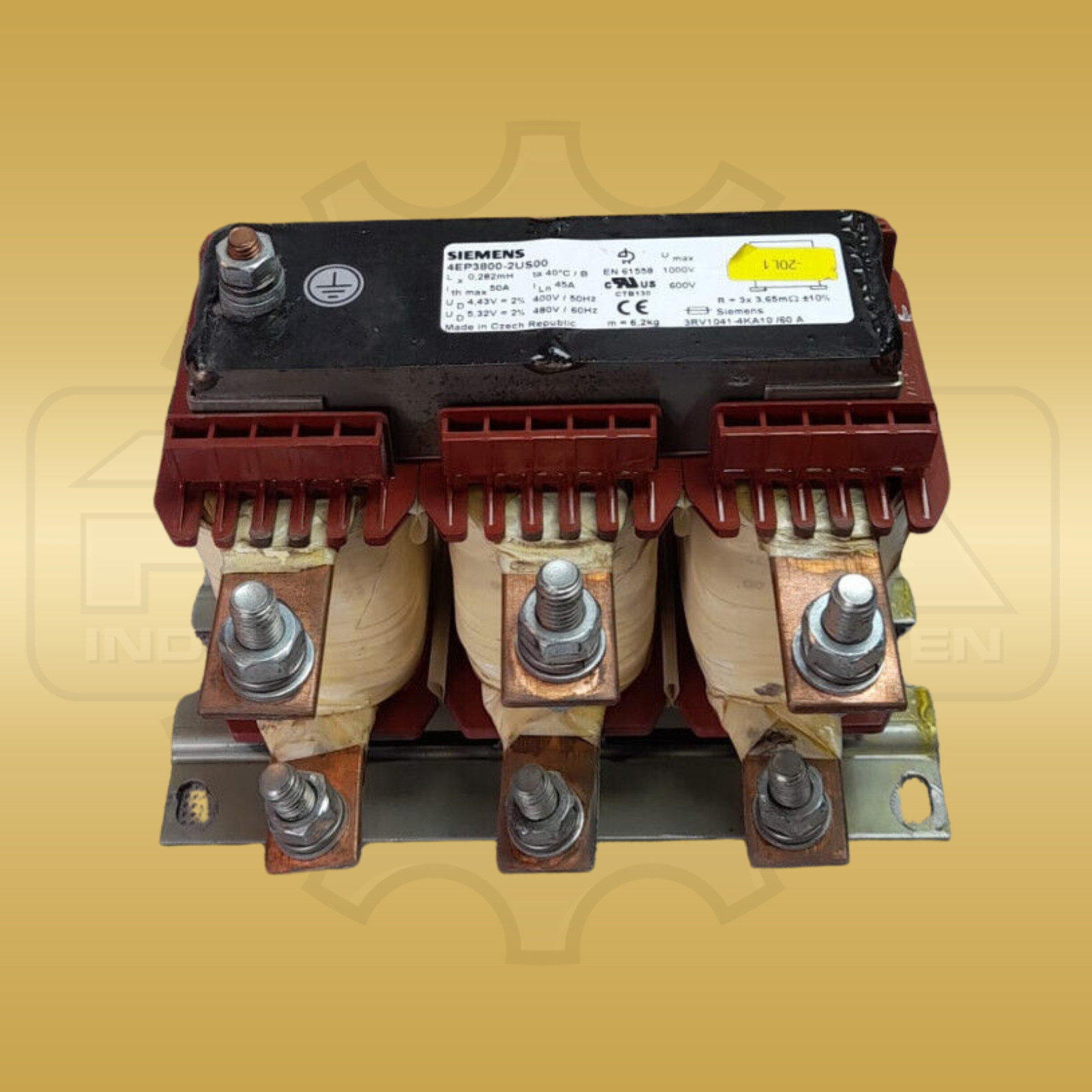

This type belongs to the documented 45-A and 480-V class of Siemens line reactors. Documented identifiers and values: 4EP3800-2US00; 400; 480 V; 50; 60 Hz; 45 A; 50 A; 282; 54 W; 19.2 W; 40 °C; IP00; 61558-2-20; 178; 153; 120 mm; 5,281 kg. The design complies with EN 61558-2-20 and is listed by Siemens as a UL/CSA-recognized reactor. Power loss is divided into 54 W winding losses and 19.2 W core losses. The documented value for Rated inductance is 0.282 mH. Siemens specifies an operating voltage range of 400 to 480 V AC at 50–60 Hz. With dimensions of approximately 178 × 153 × 120 mm and a net weight of 5,281 kg, the reactor requires a load-bearing mounting surface with adequate air and creepage clearances. Rated current is 45 A and the documented maximum current is 50 A. Identifying data are the complete Siemens order number 4EP3800-2US00, number of phases, line voltage, frequency, current class, inductance and terminal geometry. The open IP00 design uses flat terminals for the main circuit and belongs to insulation class B. It is the three-phase IP00 version with flat terminals and insulation class B. The documented value for Degree of protection is IP00.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | Siemens 4EP reactors |
| Manufacturer / order / identification number | 4EP3800-2US00 |
| Device type | Line reactor for frequency converters |
| Number of phases | 3 |
| Voltage type | AC |
| Operating voltage | 400–480 V AC |
| Operating frequency | 50–60 Hz |
| Rated current | 45 A |
| Maximum current | 50 A |
| Rated inductance | 0.282 mH |
| Relative inductive voltage drop | 2 % |
| Winding losses | 54 W |
| Core losses | 19.2 W |
| Thermal class | B |
| Rated ambient temperature | 40 °C |
| Degree of protection | IP00 |
| Main-circuit connection | Flat terminal |
| Dimensions | 178 × 153 × 120 mm |
| Weight | 5,281 kg |
Related products
Go to shop
Siemens 6SE7037-0TJ60-Z
€21,010.00
Siemens 6SE7133-7EG83-2NA0
€12,500.00

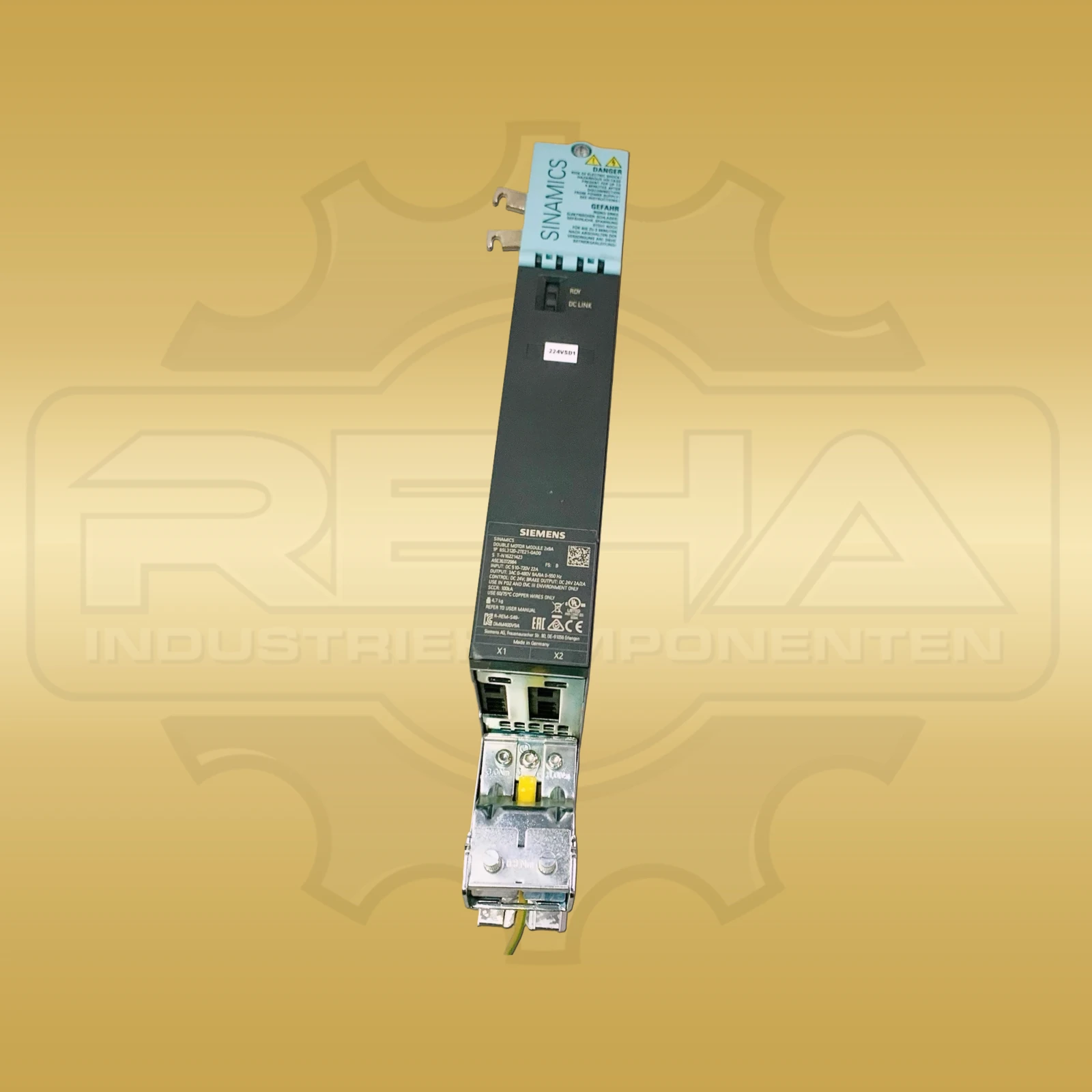

Siemens 6SL3120-2TE21-0AD0
